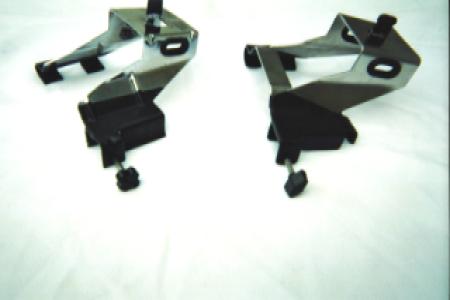

Front Bracket, Left is the original 1.2lb or 520grams made from 1/16th metal then chromed. Right bracket reproduction 1.9lb or 860grams made from 1/8th stainless steel. |
Rear Bracket left origonal 1.3lb or 550grams made from 1/16th metal crommed. Rear bracket Right, reproduction 2.4lb or 1kg made from 1/8th stainless steel. |

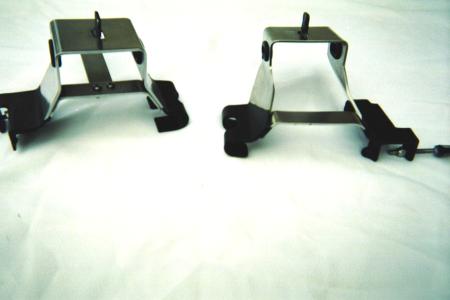

Re-production has added supoort brace across the back modified front to accomidate racks without pins. |
Rear bracket also has support brace |

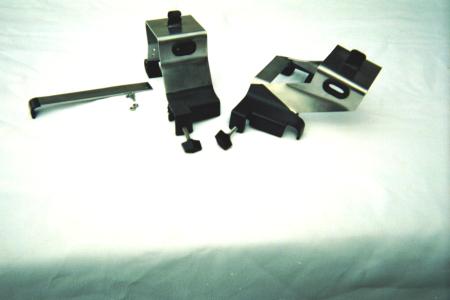

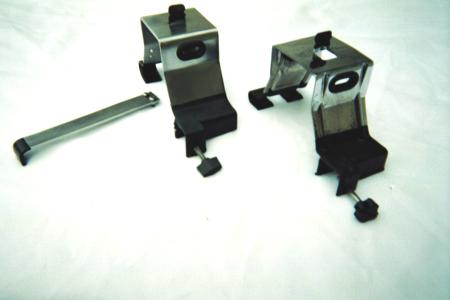

Rear bracket has removable alignment bar for racks without pins. |

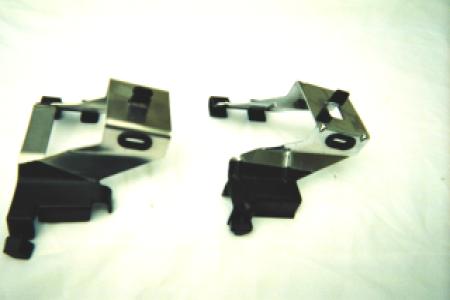

Brackets made of 1/8th inch stainless steel. |

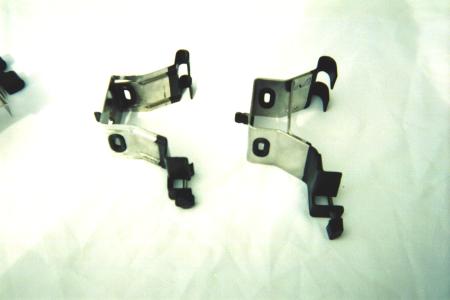

Brackets made of 1/8th inch stainless steel. |

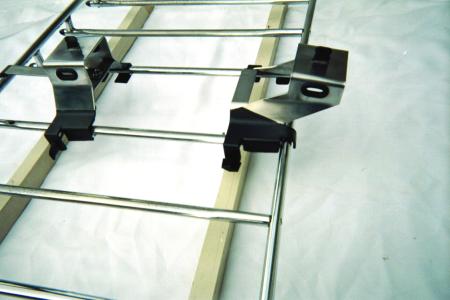

Picture shows how modifications to brackets can adapt to racks with or without pins. |

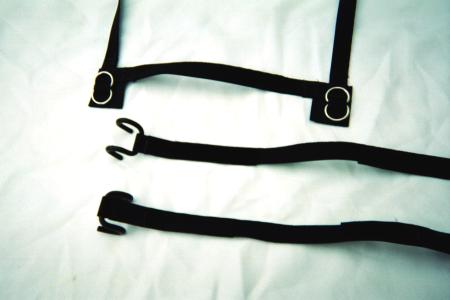

2 strap system using double "D" rings & velcro! |
Pads on "D" rings to prevent rubbing. |

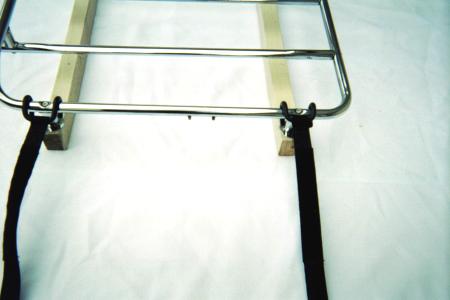

Straps attach using mounting posts instead of pins. Strap hooks made from 1/4inch stainless steel and are rubber coated. Hooks work best attached in this manner, the pannels sit on top of rubber hooks and dont rub on the crome rack. |
Rear bracket also has support brace |

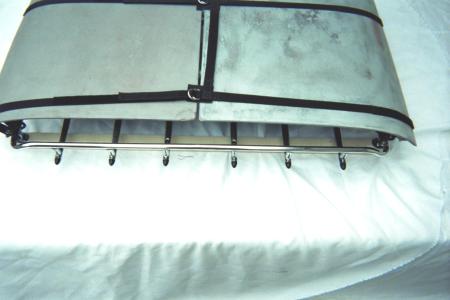

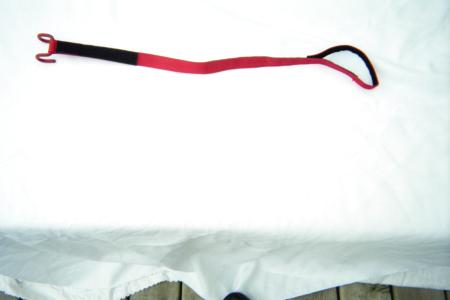

Under side of straps have 8 inchs of thick soft fleece to protect t-top pannels. |

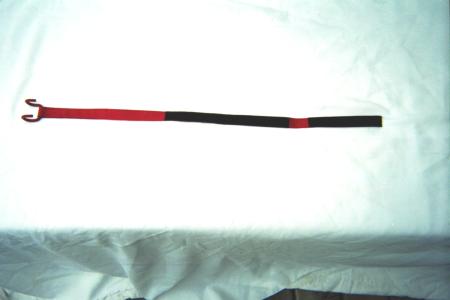

Top side of strap has velcro to secure straps in place. |
Double "D" rings used correctly along with velco makes a very secure system. |
*IMPORTANT!!!!!!!!!!* in order to use holders you need at least 8 1/2inch clearance between rack and rear window and 1 1/2inch from front edge or rack and 2 1/4inch from rear of rack (antena clearance!!!!) |
|
Complete set of brackets and straps=$185.00 u.s. (originals selling for aproximatly $400.00 u.s. Colors other than black add 10% other colors available Basic Red Yellow Blue Any questions please contact me at glennbodie@hotmail.com |
