P-11 Trigger Stop Instructions

You will need:
1) 10-24UNCx1/4 nylon set screw (nylon will not back off like steel)
1) 10-24UNC Tap
1) Tap extension (I made my own from aluminum tube see Fig4)
1) #26 Drill Bit (Jobber length is sometimes too short, you may need an extended bit)
1) Ball-ended Hex Wrench to fit 10-24 set screw.

Step 1: Dis-assemble gun removing magazine, barrel/slide assy., and trigger assy. as shown in Fig2.

Step 2: Using #21 bit, Drill hole at approximate angle shown in Fig3.

Step 3: Tap hole using 10-24 Tap and extension as shown in Fig4. Zytel taps easy!

Step 4: Install set screw using ball-ended hex and re-assemble gun.

Step 5: Adjust trigger stop by holding hammer back and accessing set screw using ball-ended hex. You will not have a straight shot at this screw with the gun assembled and that is why you will need a ball-end. Fig1 shows what the gun should look like when install is complete.

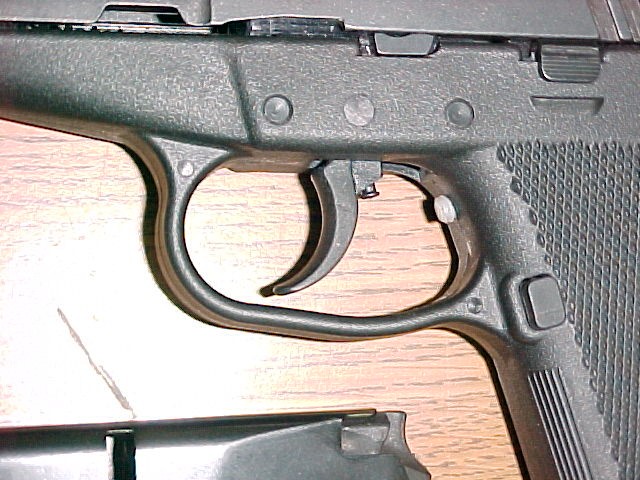

Figure 1

Close-up of trigger stop installed:

Figure 2

Disassembly:

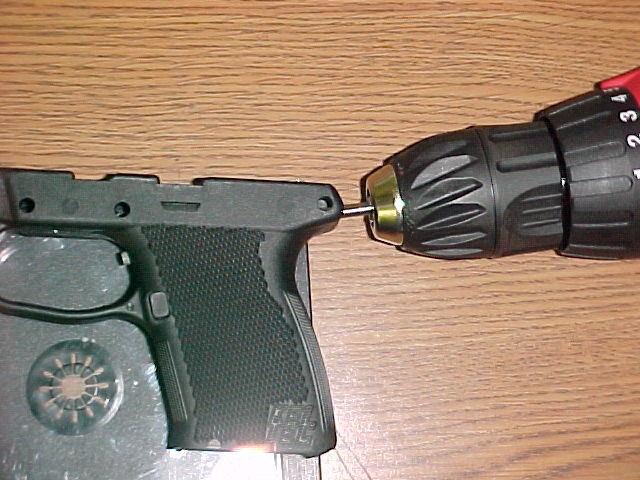

Figure 3

Drill angle:

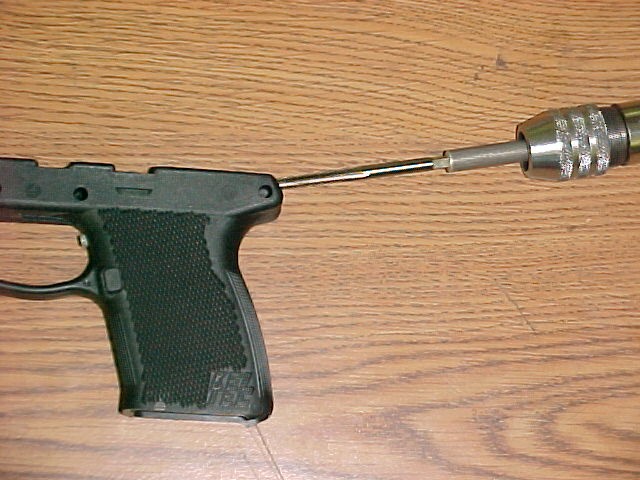

Figure 4

Tap proceedure:

Email Here! with questions or comments.

This information provided courtesy of Terminal Enterprises.
