The Organizer Experiment: Transplantation of
the Upper Lip of the Blastopore
The organizer
experiment represents the
classical case of a complex
induction. Spemann and Mangold
discovered that the upper lip of
the blastopore of a young urodele
gastrula, when transplanted to
the flank or ventral region of
another young gastrula, they would
invaginate, self differentiate
into notochord and somites, and,
in addition, induce adjacent host
tissue to form a second medullary
plate and supplementary
mesodermal structures. The self
differentiating transplant and
the induced host structures
together formed a well integrated
set of secondary axial and
paraxial structures, with its own
polarity and bilateral symmetry,
approaching a complete secondary
embryo at the ventral region of
the host embryo. This capacity
for integrative inductions has
earned the upper lip the
designation organizer. In the
organizer action, the following
components can be distinguished :
a.The
transplanted upper lip invaginates. It posses
autonomous gastrulation tendencies.
b.It
self differentiates into notochord and somites or
other mesodermal tissue.
c.The
transplant induces adjacent host mesoderm to form
mesodermal structures, such as contributions to
notochord, somites, lateral plate, etc.
d.The
transplant induces overlying host ectoderm to
form a secondary neural tube, which is frequently
subdivided into brain with optic vesicle and
spinal cord.
The most
complete secondary embryos can be
obtained when large median pieces
of the dorsal lip of early
gastrulae are implanted in the
ventral lip, opposite to the
dorsal lip of the host. See the figure on the right.
. In this instance, the
direction of invagination of the
host and of the transplant will
be parallel, and the host and
donor structures will be in
corresponding levels. In this
way, the host will only slightly
interfere with the formation of
the secondary embryo.
Procedure :
1. Select
gastrulae that have sickle shaped
blastopores. Remove the outer
jelly membranes. Wash the embryos
in dilute medium. Transfer
embryos to an operation dish with
a higher concentration.
2. With a glass
needle, make two flat wide groves
in the agar bottom, they should
be close together, so that both
embryos are in the visual field.
The grooves should be larger in
diameter than the gastrulae, and
not too deep. Smooth edges with a
ball tip. Place donor and host in
the grooves, they will orient
themselves with the animal pole
upward because they rotate freely
in the perivitelline space.
3. Remove the
vitelline membrane from both
embryos. The embryos can now be
oriented. Using the hair loop,
turn them over with very gentle
movements, so that the
blastopores face upward.
4. Preparing the
host - With the tip of a very
fine needle, cut out a square
area of the surface layer
opposite to the blastopore, in
the region where the ventral lip
would later appear. Remove a few
of the large yolk cells.
5. Cut out the
transplant - Place the donor in
such a position that the upper
lips points away from you. Cut
out a square piece of the upper,
slightly larger than in the hole
host. Make three cuts and include
the upper lip itself as the
fourth edge. Remove loose
ectoderm cells on the inner
surface with the tip of the glass
needle. Do not lose the
orientation of the transplant.
6. Implantation
Transfer the transplant to
the host on the tip of the needle
or with the hair loop. Implant in
such away that the dorsal lip of
the transplant is opposite to
that of the host. Press the
transplant gently into position,
fit it in tightly, and enlarge
the hole if necessary. Push the
glass bridge over the transplant,
and press it down gently so that
the transplant fits in well and
is in the desired orientation.
Remove the donor embryo to
another dish. Healing takes about
an hour.
7. Once healed.
Carefully remove the glass
bridge. Very carefully, replace
the concentrated solution
stepwise by dilute medium, using
a sterile pipette. Carefully
release the fluid.
8. Over the next
few days, try not to disturb the
embryo. Whem gastrulation is
complete, turn it right side up
to allow neural folds to develop.

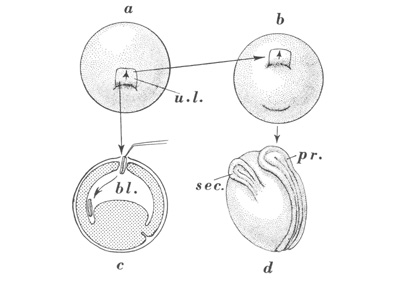

Figure - Self
differentiation of the dorsal
blastopore lip tissue. The dorsal
lip is transplanted into another
gastrula in the region that would
normally become the ventral
epidermis. A second archenteron
forms and then a second embryonic
axis. Eventually, a second embryo
forms that is joined to the host.
