Design Project: Power Supply/Amplifier Design For a Thermoelectrically Cooled Germanium Detector

Voltage Power Supply

The voltage regulator circuit was constructed using the LM317T, 3 terminal regulator. A heatsink was utilized to cool down the LM317T. The output voltage can be set to anywhere in the range of 1.5 volts to 30 volts. However, for our application we needed a 2.5 volt output voltage. The selection of the desired output voltage comes with choosing appropriate resistance values for R1 and R2. The use of a potentiometer for resister R2 allowed calibration of the desired output voltage. A bridge rectifier was used to receive the AC or DC input. Protection diodes were implemented to prevent the capacitors discharge from running back into the regulator in the event of abnormal operating conditions such as a sudden short circuit on the input or the output or a back emf from the inductive load.

The resistor used for R1 was chosen to be 250 ohms making the voltage drop across it to about 1.25V. This becomes the reference voltage of the regulator. Whatever current is flowing through R1 is also flowing through R2 and thus the sum of the voltage drops across R1 and R2 are the output voltage seen.

            Vout = 1.25 (1+R2/R1) or R2/R1 = (Vout/1.25)-1

 Since we know that our Vout must be approximately 2.5 volts, and we chose R1 to be 250 ohms we can calculate our value for R2.

R2 = 250 ohms.

Components

1N4004 diode                          D1 D2                          2

Capacitor                                 C2                                1

Electrolytic capacitors

            1000uF                        C1                                1

            10uF                            C3                                1

            100uF                          C4                                1

Resistors

            250 ohm                       R1                                1

            250 ohm                       R2                                1

LM317T regulator                                                         1

Bridge rectifier                                                               1

Heatsink                                                                        1

Transformer (6volt)                                                        1

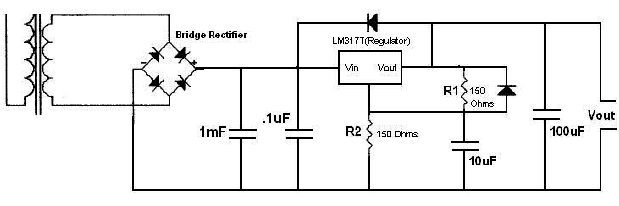

 Schematic

Voltage Power Supply:

Output Voltage 2.5 Volts

Ouput Current 1.5 Amps

Design Problem:

A Moore sequential network has two inputs. X1 and X2. and one output, Z.  The output remains a constant value unless one of the following input sequences occurs:

(a) The input sequence X1X2 = 00,11 causes the output to become 0.

(b) The input sequence X1X2 = 01,11 causes the output to become 1.

(c) The input sequence X1X2 = 10,11 causes the output to toggle.

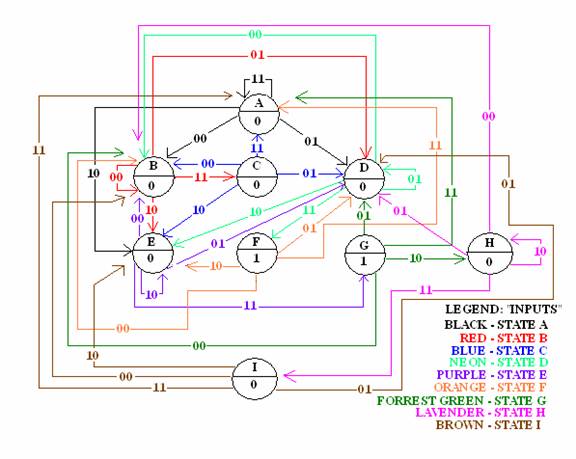

STATE DIAGRAM:

State-   A : (Reset)

            B: Received 1^st ‘00’

            C: Received ’00, 11’ (success string, output goes to 0)

            D: Received 1st ‘01’

            E: Received ’10’ (1^st set of ‘0’ to ‘1’ toggle)

            F: Received ‘0111’ (success string, output goes to 1)

            G: Received ‘1011’ (toggles from ‘0’ to ‘1’)

            H: Received ‘10’ (1^st set of ‘1’ to ‘0’ toggle)

            I : Received ‘1011’(toggles from ‘1’ to ‘0’)

Design Project: State Sequencers

Objective:

            The objective of this lab was to design, analyze and employ a state sequencer that can be utilized to control digitally designed systems.

Materials:

            The materials used in this lab experiment were a Quad 2-Input NAND chip (SN7400), a Hex INVERTER (SN7404), and a Dual J-K Flip-Flop (SN74107).

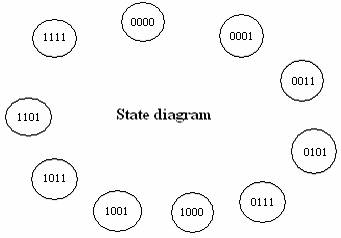

State diagram:

 State Table:

Excitation Table:

 Karnaugh Map:

                                             J_A                                                                      K_A

                                             J_B                                                       K_B

                                            J_C                                                         K_C

                                             J_D                                                                          K_D

J_{A = BC}     K_{A = BC}                            J_{B= C}        K_{B = C}

J_{C = D}        K_{C = 1}                                J_{D = 1}        K_{D = BC}

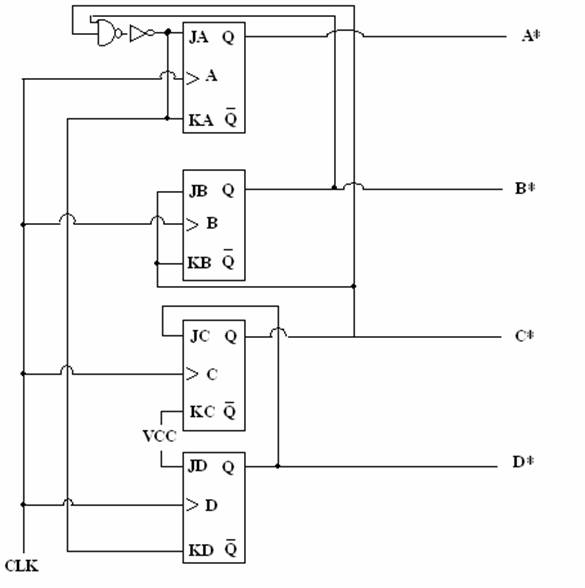

 Schematic Diagram:

Exercise 1:

If Tg is the gate delay and Td is the Flip-Flop time delay, what is the maximum frequency that can be used to clock each of the  two sequencers you connected in this lab?

We know that the total time delay is equal to Tg + Td.  Therefore, the maximum frequency that can be used to clock each of the two sequencers is 1/ (Tg+Td).

State diagram:

State Table:

(* Note:  I used the Function Table for a J-K flip-flop to find A, B, and C Next State)

Input Equations:

            JA = B             KA = B            JB = ( A’ C’)’       KB = 1       JC = B’           KC = 1

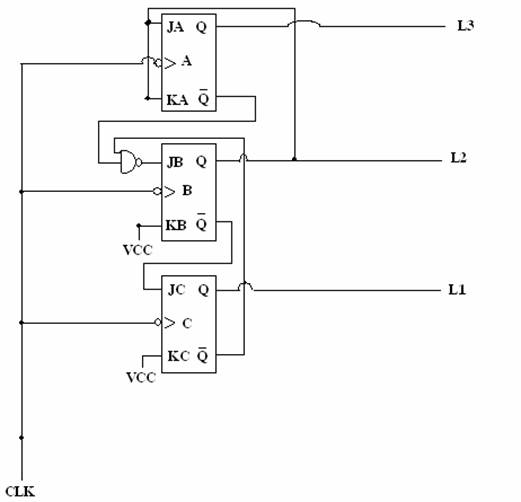

Schematic Diagram:

Conclusion:

            Experiment 1 served as a great exercise to get familiar with the behavior that J-K flip flops can exhibit.  Two experiments were performed in which a counting device was logically designed then tested.

            The first experiment performed a count that counted in the order specified by the pre-laboratory instructions.  The experiment successfully produced the count that it was designed to perform.  Few problems occurred while debugging the circuit when first connected.

Project :  TRAFFIC LIGHT

1.         Discussion of the concepts used in the project.

This project had two experimental steps that eventually led into the development of a traffic controller. The first approach involved designing a counter that would count to fifty-nine.  This would later serve as the interval between changes in the traffic light states.  This circuit design was achieved by using two 74LS163 counters.  The first counter had the task of counting up to nine while the second counter had the task of counting up to five only after the first counter’s had cycled through one time.  To integrate these two counters, the first counter’s logical nine was NANDed and routed back to its clear pin to be reset to repeat another cycle.  This output coming from this NAND gate was then inverted and then by routed into the second counters clock input where a cycle (0 – 9) can be detected by the second counter.  When second counter detects this signal, it then increments itself by one.  The second counter increments by one until it reaches it’s logical five, where there after, logical five is sent through an NAND gate and routed back into it’s clear to make the chip reset itself at the end of one complete cycle (0 – 5).  To display the results of this 1 minute counter, the outputs of the two counters were then routed to two 7447 decoders. The counters results were then outputted from the decoders (7 outputs per decoder) into a pair of resister networks (330 ohm) consisting of 7 resistors per network. The pair of 7 out puts were then routed from each resistor network into a pair of common anode 7 segment LED displays (one LED per resistor network).  The LED’s provided 7 diodes per display piece that when powered, displayed the corresponding counting from 0 – 59).

The second experimental step involved designing the controller system for the traffic controller.  To design this control system, a pair of positive edge JK flip-flops were used (74LS109A).  The circuit was designed with a pedestrian request as well which allows a pedestrian to request the lights to all turn red for one minute.  The circuit was connected as follows:  For flip-flop A, Q was routed into flip-flop B’s K input and was also NORed with QNOT which then lead into the J input of flip-flop A. Pin K was connected to ground as it was active low.  QNOT was routed to flip-flop B’s J as well as to two separate NAND gates where it was NANDed with flip-flop B’s Q as well as flip-flop B’s QNOT.  These two NAND gates essentially became our outputs to the red and green led.  The way in which the pedestrian request was integrated into this circuit was by connecting a single dip switch with a 1k resistor up to Vcc where it would then lead to an NOR gate to be NORed with the result of the Q and QNOT that it itself was producing.

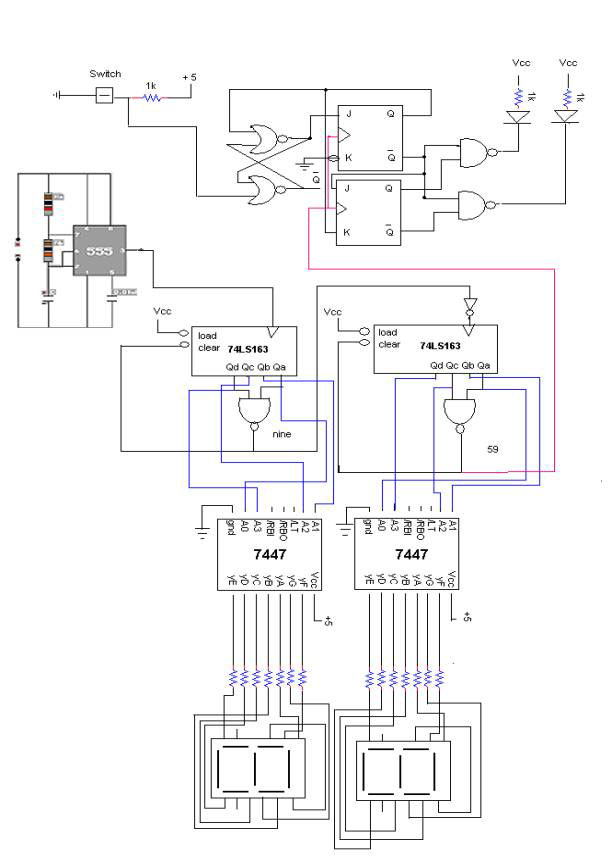

2.       Design, including the pin connection diagram.

The design for this circuit included the following:

            1 - 1 bit dipswitch

                        1 – 555 clock

1 – 1k-resistor network (8 resistors)

                        1 – 7404 inverter.

                        2 – JK positive edge flip-flop (74LS109A)

                        2 – 7 segment 7447 decoders (active low, common anode)

                        2 – 330 ohm resistor network (7 resistors per network)

                        2 – 7 segment LED displays (common anode)

                        2 – green and red led.

                        2 – Quad 2-input NAND gate (4011)

                        2 – Quad 2-input NOR gate (4001)

3.       Testing procedure and any debugging.

            The testing procedure and debugging was a very important part of the construction and learning process in this circuit. The circuit was completely assembled and neither led would light up as a result.  This called for a thorough investigation into where the problem was coming from and how to correct the problem once it was located.  A voltmeter was often used to detect just how far the signal from the input would travel before experiencing difficulty.  It was equally important to use a volt meter to test the pedestrian request.  To test it, we simply detected voltage directly after the switch to see whether or not the signal was 1 or 0.  It was a very effective way to identify the problems within the system.  Other methods of debugging were directly associated with the parts burning out.  Many instances occurred where it was believed that there may be a problem with the logic in the circuit only to later find out that a counter or an led was burned out. Much to the disappointment of the builder(me),  it served as a good learning experience.  Another factor as seen in all the projects worked on, was loose wiring or in fact wires that had been connected backward or not connected at all.  After working on three projects, the importance of effective debugging techniques was evidently made clear.

4.       Results

          The results to the project were as expected for each and every individual step that led up to the final result. The first experimental step was expected to count from 0 – 59 and display this count two 7 segment LEDs . The expected result was exactly what the experimental result came to be.  The second and final experimental step was expected to produce a traffic controlling system in which a pedestrian request was also implemented into the circuit.  This expected result after considerable debugging, came to meet the experimental results as well.

5.       Conclusion

Project :  CALCULATOR (adder and multiplier)

1.         Discussion of the concepts used in the project.

This project had three experimental steps that eventually led into the development of an adding and multiplying device. The first approach involved integrating an eight-bit dipswitch (keyboard input) to send a signal through a 1k-resistor network consisting of 8 resistors.  This signal served as the input into a pair of common anode 7 segment 7447 decoders.  The decoders then had the job of translating the hexadecimal numeric value provided by the input (highest value 9 - 0110 per 4 switches).  The result was then outputted from the decoders (7 outputs per decoder) into a pair of resister networks (330 ohm) consisting of 7 resistors per network. The pair of 7 out puts were then routed from each resistor network into a pair of common anode 7 segment LED displays (one LED per resistor network).  The LED’s provided 7 diodes per display piece that when initiated, displayed the corresponding number entered into the dipswitch in hexadecimal. Since the circuit was built using logic zero, a ninety-nine for example, would be displayed by using 0110 0110 configuration as oppose to logic 1 which would be produced by inputting 1001 1001. In essence, when experiment one was completed it displayed whatever two inputs the user provided like a scoreboard would.

            The second experimental step called for the implementation of an EPROM.  The EPROM used in this circuit was the 2764.  The EPROM was first prepared by erasing.  The process of erasing an EPROM consist of placing the former into a chambered device that after a 15 – 20 minute wait, will clear it of any information previously stored on it.  Once erased, the EPROM can be programmed with whatever logic the user would like on it (in this case, a multiplication table).  The process of programming an EPROM involves using a programming device that is connected as an appendage of a computer.  The EPROM is placed in the attachment, where it can be read, evaluated for errors and most importantly, programmed.  Once the appropriate device has been selected (through the serial # of chip), the desired program can be loaded onto the EPROM.  Following the programming process, it is imperative that the face of the EPROM be covered from ultra- violate light, as it will erase whatever logic has been programmed into it.  The EPROM was incorporated into the circuit described in the first experimental step.  The goal was to convert the conventional output of the circuit, to a circuit that could take two inputs (0 – 9), and perform and display the multiplication between these two numbers.  As it turned out, the EPROM was inserted between the first 1k-resistor network and the pair of decoders.  The EPROM received a total of 8 inputs (4 per numeric input) and a total of 8 outputs (4 per decoder).  All other address pins not being used were grounded to insure proper performance of the EPROM.  The pins associated to OE (output enable) and CE (chip enable) were set to ground. The EPROM performs the multiplication of the two numbers by cross-referencing the inputs with the multiplication table contained within.  As a result the circuit has been converted into a two number multiplier.

            The third and final experimental step involved inserting a second EPROM into the circuit.  The goal was to add the ability to perform addition as well as the existing multiplication between two numbers. The second EPROM was activated with a switch that disabled one EPROM while the other was enabled. The second EPROM when activated by the switch performed the addition between two numerical inputs while the first one when activated performed the multiplication.  The steps to programming the second EPROM are identical to the ones described in the programming of the first EPROM.  The difference would be the code (addition table) that would be stored within.  Once programmed, the EPROM was inserted into the circuit with the same inputs as the first EPROM (from the 1k resistor network) and the outputs led to the appropriate decoder inputs.  The activation process of the two EPROMS was accomplished by utilizing the OE on each EPROM.  The CE on each EPROM is grounded as well as all the address lines not being used. The first EPROM’s OE pin was changed from ground to the input end of an inverter.  The input end of the inverter is also routed to a 1k resistor that leads to Vcc.  It also runs to a switch that is connected to ground.  The second EPROM’s OE pin is routed to the output end of the inverter. This connection configuration will enable the circuit to activate one EPROM at a time depending on the type of operation that the user would like to perform.  The finished circuit is now capable of performing both multiplication and addition operations of two numbers.

2.       Design, including the pin connection diagram.

            The design for this circuit included the following:

                        1 - 8 bit dipswitch

                        1 – 1k-resistor network (8 resistors)

                        1 – 7404 inverter.

                        2 – 2764 EPROM

                        2 – 7 segment 7447 decoders (active low, common anode)

                        2 – 330 ohm resistor network (7 resistors per network)

                        2 – 7 segment LED displays (common anode)

3.       Testing procedure and any debugging.

            The testing procedure and debugging was a very important part of the construction learning process in this circuit.  Often the circuit was completed, and no out put would be displayed on the LED.  This called for a thorough investigation into where the problem was coming from and how to correct the problem once it was located.  A voltmeter was often used to detect just how far the signal from the input would travel before experiencing difficulty.  It was a very effective way to identify the problems within the system.  Other methods of debugging were directly associated with the EPROMs.  Many instances occurred where it was believed that the EPROM may have the incorrect code stored within it.  It was helpful to substitute an EPROM that had already been tested on another system.  This often identified whether it was the original EPROM causing the discrepancy or the wiring.  Often it proved that to be the wiring and a lot of time was salvaged that could have been spent programming the EPROM.  Remarkably, not much debugging was necessary for this project, but the importance of learning effective debugging skills understood as it will be very helpful and necessary in more complicated circuit designs.

4.       Results

          The results to the project were as expected for each and every individual step that led up to the final result. The first experimental step was expected to give a result that would allow two numerical hexadecimal inputs and their corresponding displays on two LEDs . The expected result was exactly what the experimental result came to be.  The second experimental step was expected to produce a result that would allow two numerical inputs to be multiplied with each other and display the corresponding outputs.  The expected results were also exactly what the experimental results came to be.  Finally, the last experimental step was expected to produce a result that would allow two numerical inputs that could (as in experiment two) multiply as well as add each input with each other and display its corresponding output. As expected, the experimental results met up to the expectations of the expected results.

5.       Conclusion

Project :  Traffic Light Controller (using 68HC11 board )

Purpose:           The purpose of this lab was to utilize the 68HC11 to control a traffic light.

Discussion:

Specifically, the behavior was to remain at green in the north-south (NS) direction until a signal was received that there were cars waiting in the east-west (EW) direction.  Once the signal in the EW direction was received, the green light in the NS direction turns off and is followed by a yellow light in the NS direction that remains lit for 1 second before going to red. A half a second after the red light in the NS turns on, the red light in the EW direction turns off and the green light in the same direction turns on.  The lights remain in this position for 5 seconds, before performing the same routine described above for these directions.  If for any reason a signal is detected by the emergency detector (PA1), the red lights in both, the NS and EW direction would flash until the signal is no longer detected.

The pin and light configuration was as follows:

                        PA0 - EW TRAFFIC SENSOR

                        PA1 - EMERGENCY DETECTOR

                        PA4 - NS GREEN

                        PA5 - NS YELLOW

                        PD2 - NS RED

                        PD3 - EW GREEN

                        PD4 - EW YELLOW

                        PD5 - EW RED

Pin Connection

The C program used to control the behavior described above was as follows:

            #include <hc11.h>

            #include <stdio.h>

                       int l;

                        void one();

                        void five();

                        void half();

                        void ten_sec();

                        void flash();

                        void main(){

                        DDRD = 0xFF;

                                    while(1)

                                                {

                                                PORTA = 0x10;          /*green light on PA4 NS*/

                                                PORTD = 0x20;          /* PD5 is EW RED*/

                                                if ((PORTA & 0x01) == 1)  /* if traffic detected PA0*/

                                                {

                                                PORTA = 0x20;          /*PA5 yellow light NS*/

                                                flash();              /*emergency flash function*/

                                                one();               /*1 second function*/

                                    PORTD = 0x24;          /*PD5 red light EW and PD2 red NS */

                                    PORTA = 0x00;

                                    flash();              /* emergency flash function*/

                                    half();               /* 1/2 second function*/

                                    PORTD = 0x0C;

                                                five();   /* 5 second function*/

                                    PORTD = 0x14;          /* PD4 EW yellow and PD2 NS red*/

                                    flash();              /*Emergency flash function*/

                                                one();               /*1 sec function*/

                                    PORTD = 0x24;          /*PD5 red light EW and PD2 red NS */

                                                flash();              /*Emergency flash function*/

                                                half();   /*1/2 sec function*/

                                    PORTD = 0x20;          /*PD5 red light EW*/

                                    PORTA = 0x10;          /*PA4 NS green light*/

                                                five();   /* 5 second function*/

                        }

            }

}

            void one()

            {

                        int i,j;

                        for(i=0;i<=20;i++){

                                    for(j=0;j<4500;j++);

                        }

            }

            void five()         /* Generates a 5 second delay */

            {

                        int i,j;

                        for(i=0;i<=100;i++){

                                    for(j=0;j<=4500;j++);

                        }

            }

            void half()         /* Generates a half second delay*/

            {

                        int i,j;

                        for(i=0; i<=10; i++){

                        for(j=0; j<=4500; j++);

                        }

            }

            void ten_sec()               /* Generates a 10 second delay*/

            {

                        int i,j;

                        for(i=0; i<=200; i++){

                        for(j=0; j<=4500; j++);

                        }

            }

                        void flash(){                  /* Generates the flashing routine for the red lights*/

                        while(PORTA & 0x02)            /* Checks bit PA1 for emergency signal*/

                        {

                                    PORTA = 0x00;          /* Clears PORTA (red lights) */

                                    PORTD = 0x24;          /*PD5 red light EW and PD2 red NS */

                                    one();                           /*Delays for one second*/

                                    PORTD = 0x00;          /*Clears making flashing reds lights*/

                                    one();                           /*Delays for one second*/

                        }

                        }

Project :  Multi-Stage Amplifier Design

Executive summary:

The multi-stage amplifier was used to design an amplifier circuit that would meet the specifications provided by the customer. The amplifier was to be designed to have a positive gain of 400(+/-5%), an input impedance greater than 10kΩ, an output impedance less than 50Ω, a low frequency cut-off of less than 100Hz, a high frequency cut-off of more than 50 kHz and be able to support a 2V peak to peak output when a 100Ω load is placed on it. The behaviors and characteristics of seven experiments were analyzed and tested. The knowledge acquired through these seven experiments will now be implemented to design this circuit.

Objective:

The objectives of this experiment are to design, construct and test a multi-stage amplifier.

Diagram:

Data:

Table 1: Multi-Stage Amplifier Circuit Values.

Stage 1

Stage 2

Stage 3

Stage 4

(Rload (2v) used for 2v p-p into 100 ohm load resistor)

Table 2: Calculated versus Measured values.

Design discussion:

The multi-stage amplifier design called for many conditions to be met. To achieve the gain of 400, it was decided upon to use two common emitter configurations. The common emitter configurations as studied in previous experiments proved to deliver high gain when biased to do so therefore it was expected to utilize it in one or more stages. In this case it was utilized for the two center stages of the amplifier circuit. The gain as recommended would set up last as it could be manipulated by simply changing some values around. First the input impedance of the circuit was considered. The design called for input impedance greater than 10kΩ. From experimental experience we observed that the common emitter configuration delivered moderate input impedances. However, we observed the common collector to deliver relatively high input impedance. It was recognized that a common collector configuration would be an acceptable choice to cover the input impedance design. The common collector was biased to achieve input impedance higher than 10kΩ. The relationship  was used and calculated to the value shown in table 2. The values of β were found for each transistor to achieve accurate calculation values. The output impedance was desired to be lower than 50Ω and our experience of the common collector circuit or emitter follower circuit exhibit behavior that would produce output impedance that is relatively low. The common collector circuit was used for the final stage of the circuit design. The β value of the transistor was desired to be at about 280 to make it easier to achieve relatively low output impedance. Through the relationship the output impedance was found to be at 32.84Ω which satisfies the conditions for impedance less than 50Ω. By this point we have met 2 of the six conditions that are needed. We have already established that the first and last stages will be used simply to fulfill the input and output impedances. They will not contribute to the gain of the circuit as a whole. We have also established that the stages in between would best be left to common emitter configurations due to their relatively high gain characteristics. It was decided that two common emitter stages would be biased to achieve the specified gain needed. The second stage was designed to be the multiple of ---100 that we wanted to find. In other words, the third stage would be designed to produce a gain of approximately -100 there by having the second stage set to a gain close to -4. To bias the second stage to have a gain of approximately -4, the relationship A_V2 =    - (where Ri2 = 1188K||hie). A gain of approximately -4.226 was calculated. The third stage was designed to produce a gain of close to -100. To do this the relationship Av₃ = - (where R_L2 = R_C3||RBe). The gain produced was satisfactory to produce a total gain of approximately 400. The circuit was then analyzed in p-spice to validate the calculated values found. The circuit was analyzed using the transient response option which produced an output signal that corresponded to a gain of 413.03 as seen in table 2. The gain of the circuit had been validated by p-spice to be within 5% of 400 and could now be tested with a 100 ohm load for a signal of at least 2 volts peak to peak. When a load resistor was placed in the circuit in place of the 1000KΩ resistor, we observed the output to have a value of 3.75 volts. The output voltage into a 100 ohm resistive load was now verified to be within an acceptable position. The two characteristics left to verify were those of the lower and upper cut-off frequencies.  These could be verified by using the ac sweep option in p-spice. By taking .707 of the mid-band gain we could find if both frequencies are within an acceptable range to that required. The lower cut-off frequency was found to be at approximately 12.9Hz while the upper cut-off frequency was found to be at 250.7 kHz. The lower cut-off frequency was required to be less than 100Hz while the upper cut-off frequency was required to be greater than 50 kHz. According to the p-spice analysis, acceptable cut-off frequencies had been achieved.

Analysis:

The multi-stage amplifier circuit was designed using the values located in table 1. A discussion as to the way in which the stages were chosen will be left to the design discussion. The circuit was expected to receive a small input signal of about 10mV but was treated to an input voltage of 40mV which produced clipping on the output signal. When the circuit was powered up it became apparent that the design would need to be change in terms of the 1.95k ohm resistor located by the input. It was discovered that a voltage divider would be utilized to lower the input signal. The change in design was as follows:

The circuit on the left was the original design while the circuit on the right is the modification (voltage divider) that was made to get the lower input signal. The lower input signal was essential due to the output getting clipped with a high input signal. Only after the input voltage was lowered did we achieve a nice curve representing the output signal. The gain was then found to be very close to what was expected of the designed circuit as table 2 shows. The input impedance was found by using the method used in all previous experiments which consisted of using the input voltage before our Rs resistor (Vs) and the voltage after the Rs resistor (V₂) to find the current (I_S) by the relationship (V_S – V2) / R_S. This current is then used to find R_IN by taking the relationship V₂ / I_S. The input impedance found in the experiment agreed with the calculated value as table 2 shows. The output impedance (R_OUT) for the multi-stage circuit was found in a similar form to that of the input impedance and its value is compared and represented in table 2 as well. The lower cut-off frequency was expected to be somewhere around 12.9Hz but was actually found to be at 52.34Hz. Though this produced an astronomically large percentage difference with respect to the value achieved through p-spice, it was still well under the required frequency of 100Hz. The large percentage difference could be attributed to the proto-boards capacitance and the internal capacitance of the transistors. P-spice runs analysis under ideal conditions which we can never have in a lab experiment. For the upper cut-off frequency a value of 12.98 kHz was achieved. This value failed to meet the expectations of a value greater than 50 kHz. Reasons for it falling short can be attributed to transistor internal capacitance that caused to fall before the time that is was expected to fall. The circuit was tested using a 98.1Ω load resistor and found to have an output signal of 7.23 volts peak to peak. This value is compared with that of the p-spice values acquired as table 2 shows.

The multi-stage amplifier was designed to meet the operational specifications enclosed. The gain, input and output impedances, lower and upper cut-off frequencies, and output signal greater than 2v peak to peak with a 100 ohm load were designed, and all but the upper cut-off frequency was found to meet the criteria necessary for this experiment. The exercise served as a great peak into what design work would be like in a working environment.
