Octaver Board.
Top view (component side). The edges of the board are red, and the blue divisions outside the edges are at a tenth of an inch intervals (2.54mm).

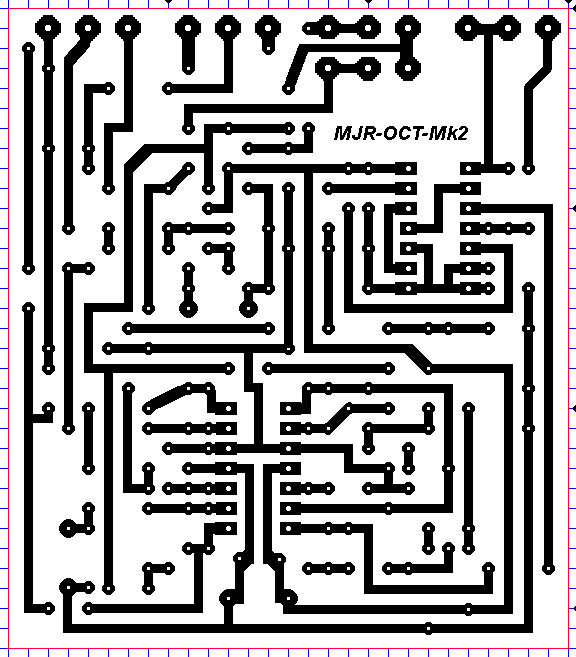

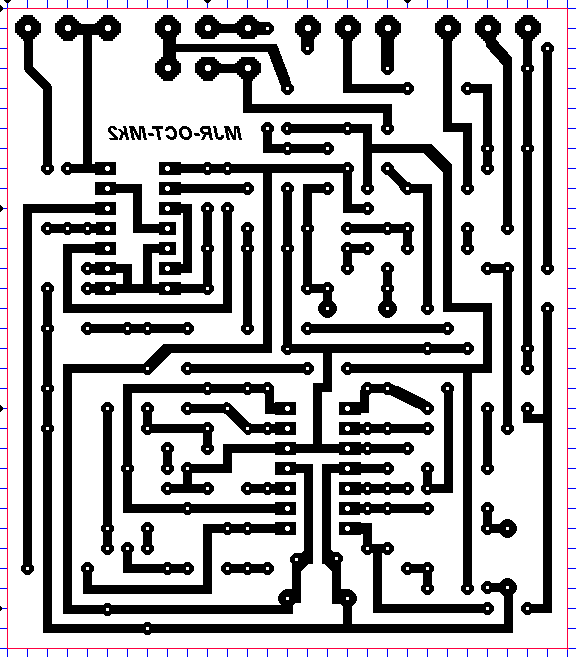

The track side.

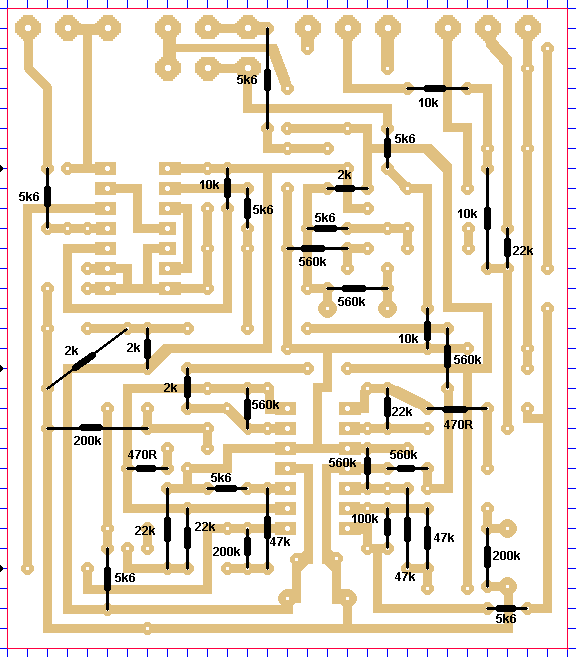

The resistors are added, they are all 0.125W 1% metal film. (A 10k near the top left is not shown on the circuit diagram, it can be almost any value, or just a wire link):

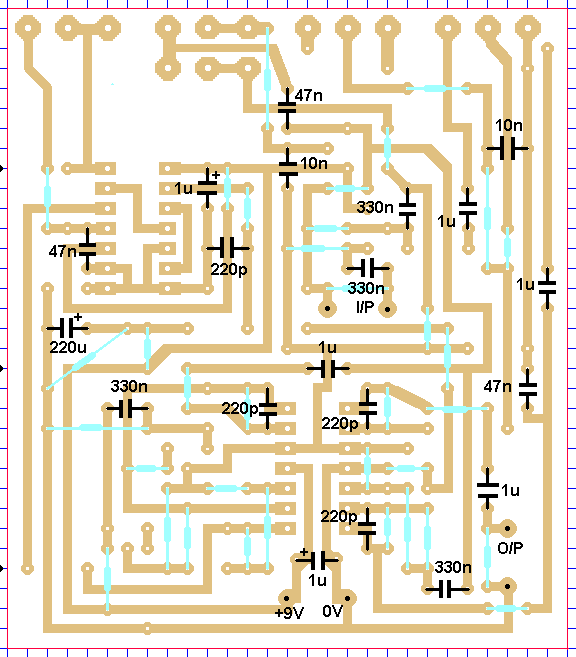

The capacitors are added, the film types are all 5mm pitch. Two of the 1uF types and the 220uF are electrolytics, polarity indicated by plus signs. Also I/P, O/P and power input are 1mm dia terminal pins, shown as black dots:

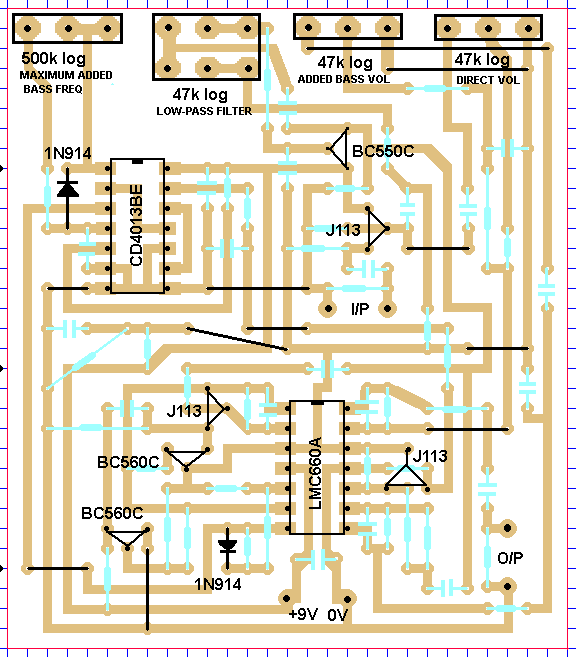

Everything else added:
