Although the Z-Buffer is *very* useful, there often will come a time
when just relying on the z-buffer by itself is totally pointless. In this
paper i would like to show you why this is so, and how you can avoid this.
The z-buffer sorts what to draw and what not to draw with a depth tag.
If something is in front of it with a larger tag(distance) then it won't
draw it. But there is one problem with this technique, if you use the z-buffer
alone as a occlusion algorithm you are going to be in for some very slow
fps.
If you have a large scene and a lot of objects which are directly behind
each other, then the z-buffer will still do a Depth Test, even in these
extremly trivial cases. To understand what i am talking about, i think
an illustration will help me describe this.

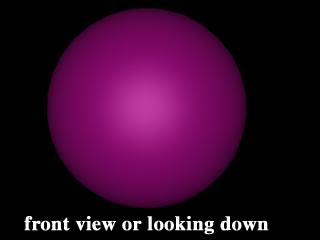

What *you* would be seeing.

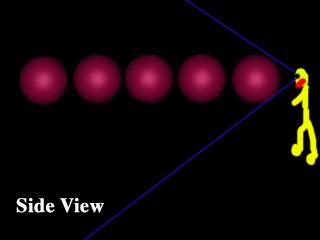

This is the side case. This is what the depth buffer sees.
As you can see, in the side view illustration, although all the spheres are aligned together, the depth test will still do a test on every pixel. When you have large scenes in your application and you can't these kind of penlties which the z-buffer imposes, it is usually time to implement an occlusion algorithm.
What this type of algorithm does, is make it so the the z-buffer is
not the first removal test for your vertex data. Your occlusion algorithm
will run and do it's test on the current verex data to draw.
Decide what to draw and what not to draw, but it doesnt' do that drawing
;)
After all the trivial cases which your occlusion algorthm has sorted
out, it is time to pass the vertex data for the z buffer to do it's final
test (optional). Once that stage is completed you let the drawing begin.
In computer graphics we often call this stage of processing vertex data
the "backend". Heh, i think i should write a paper on back end versus front
end ;)
