Replica Lightsabers

Below are the replica lightsabers that I have constructed. In most cases, I used found materials to construct them. Purchases from Onlinemetals.com were very helpful in completing the hardware graflexes used for the Skywalker ANH and ESB sabers. This page has a lot of pictures, so please be patient while they load.

Movies

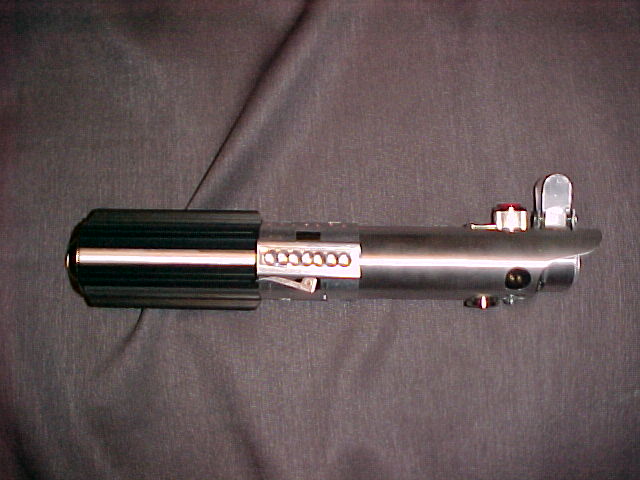

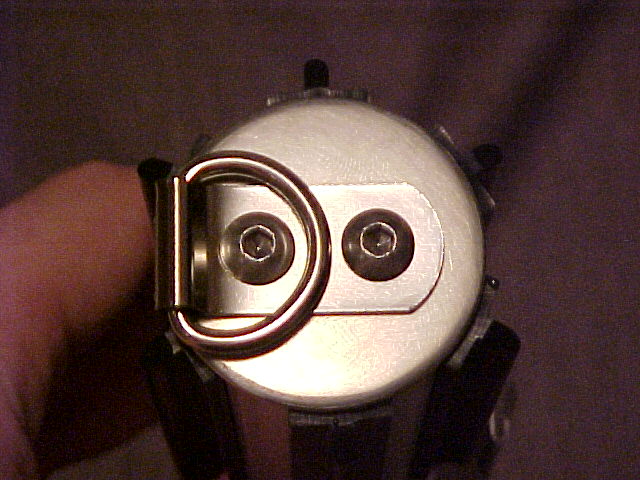

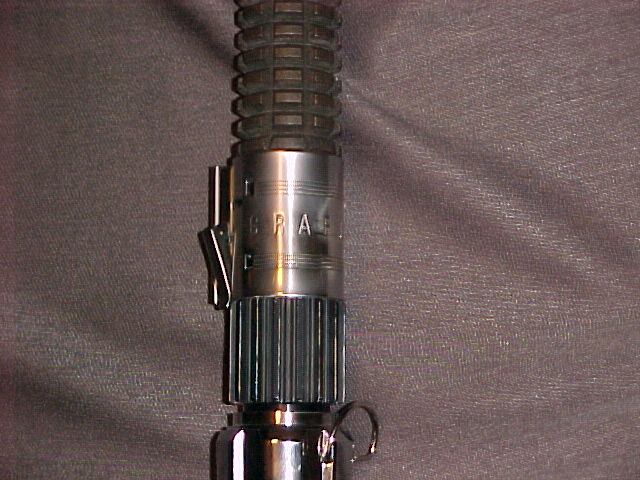

Skywalker ANH Lightsaber
This lightsaber was constructed from aluminum pipe and instruction obtained on the internet.

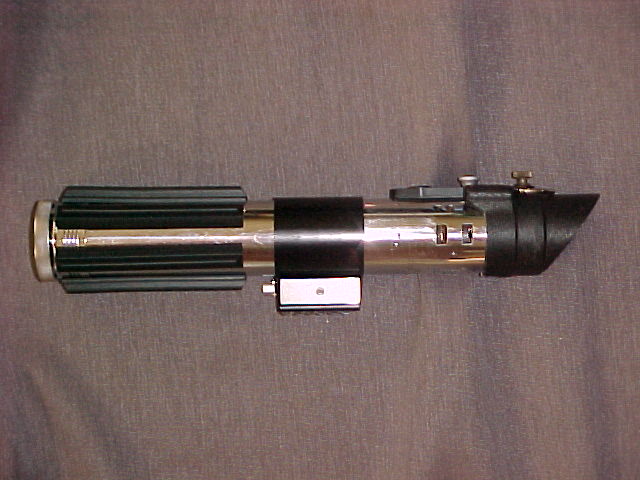

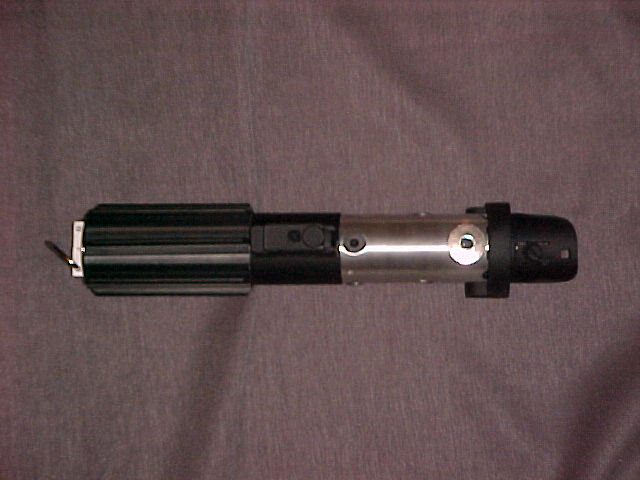

Darth Vader ANH Lightsaber
This lightsaber was constructed from a real Heiland flashgun.

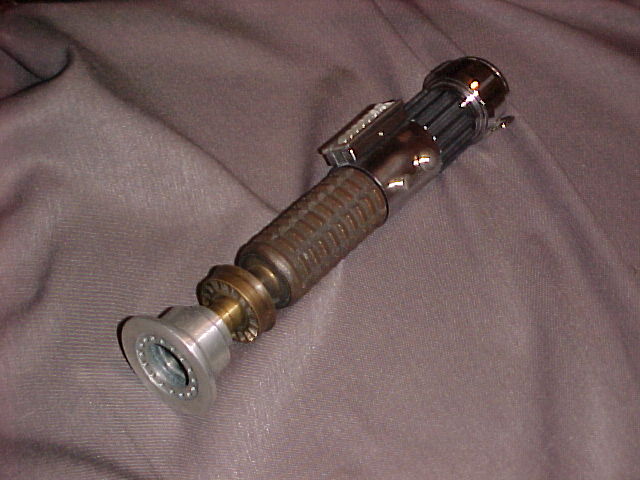

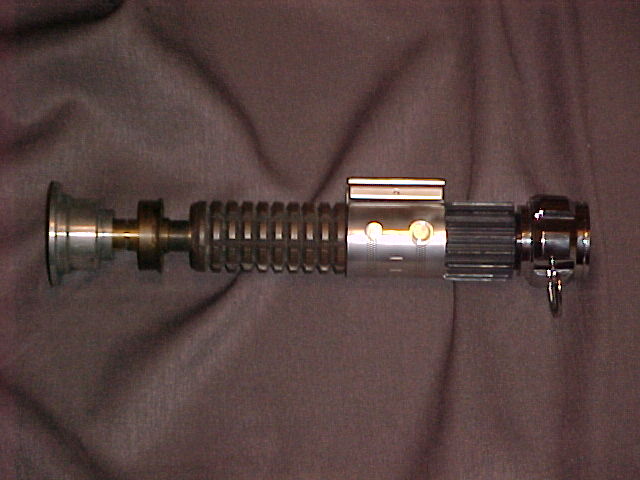

Obi-Wan Kenobi ANH Lightsaber
This lightsaber is a completely machined replica of Obi-Wan's lightsaber from A New Hope.

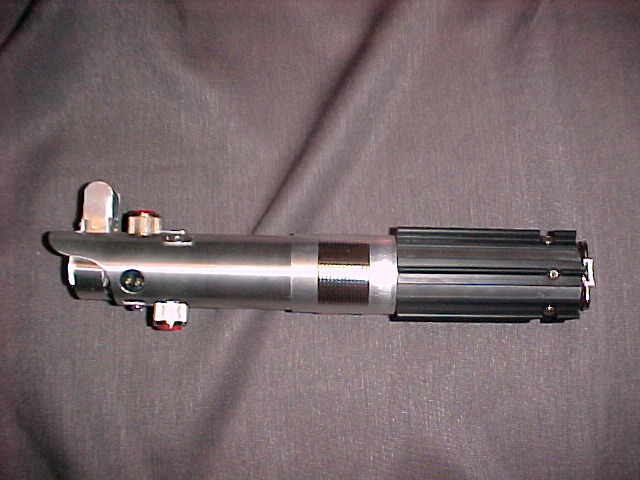

Skywalker ESB Lightsaber
This lightsaber was constructed from aluminum pipe and instruction obtained on the internet.

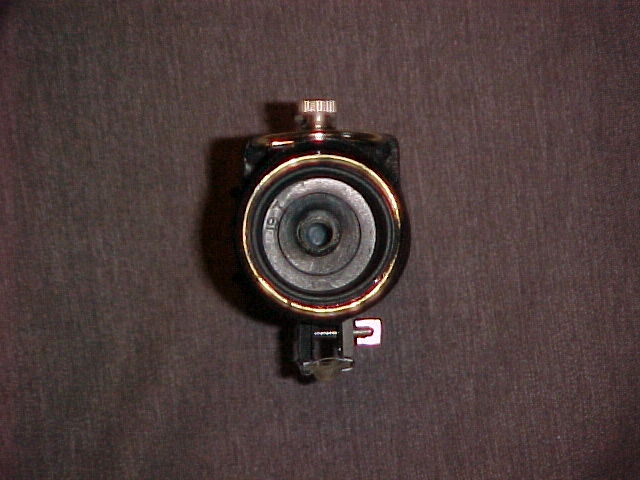

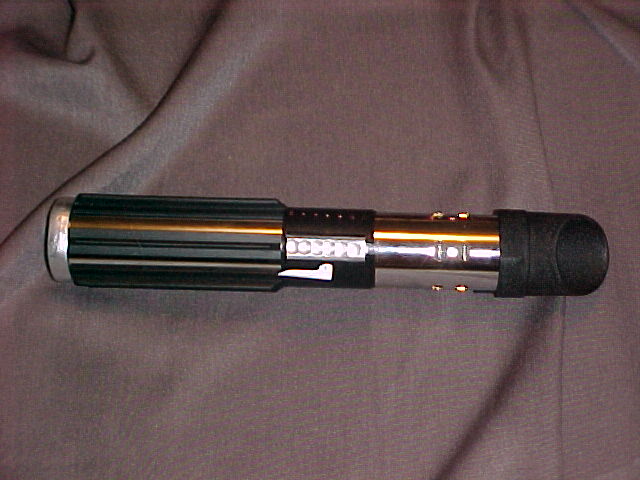

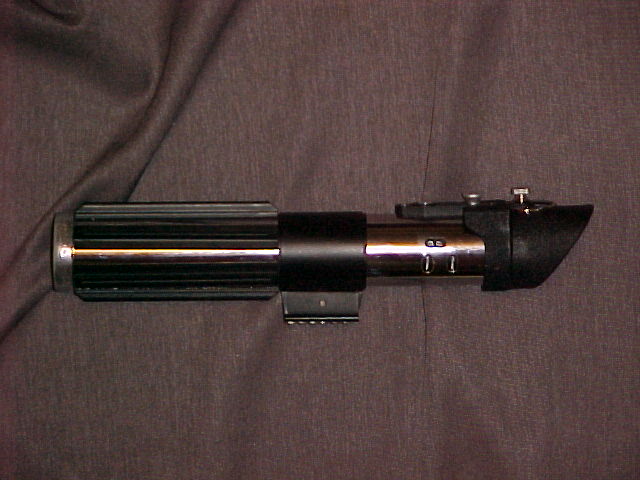

Darth Vader ESB Lightsaber
This lightsaber was constructed from hardware items. The main tube is a chrome drain extension with a PVC plug in the end. The emitter end is made from plastic drain extension and two film canisters. The rest was purchased from suppliers on the web.

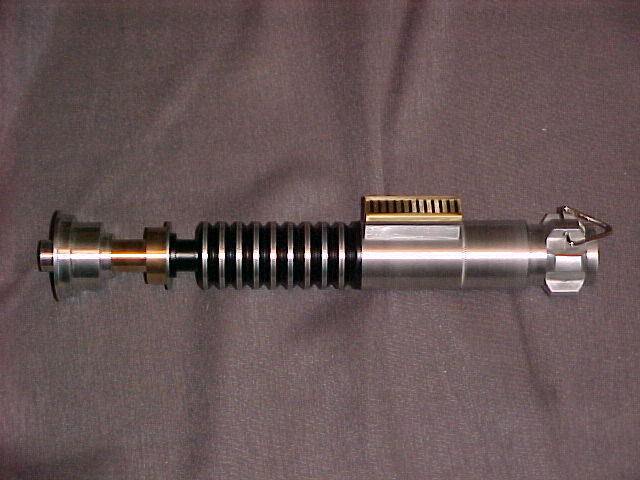

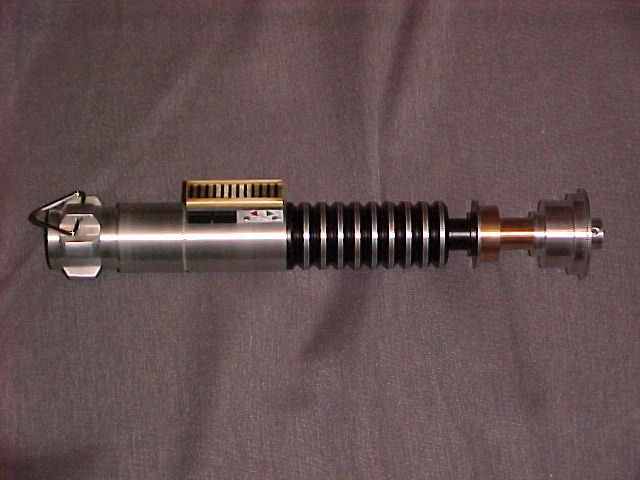

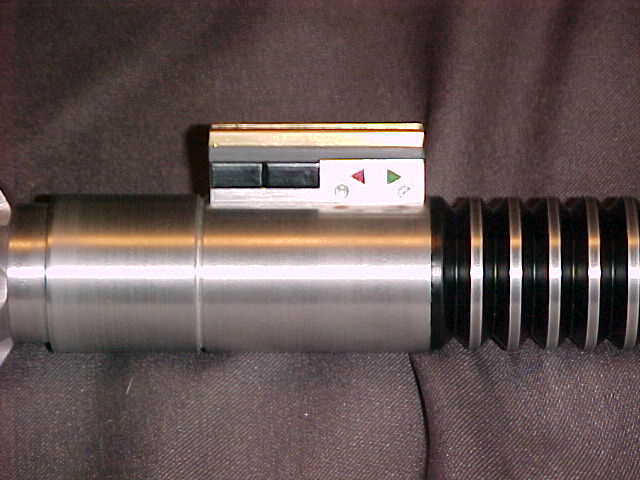

Luke Skywalker ROTJ Lightsaber
This lightsaber is machined from solid aluminum and brass. It is pretty hefty in the hand and the detailing is excellent!

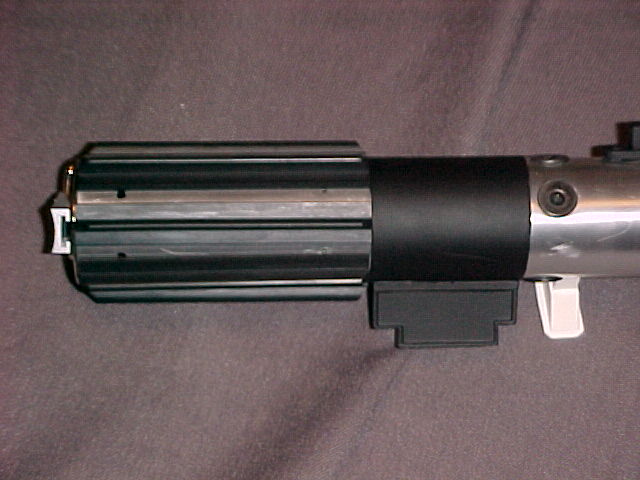

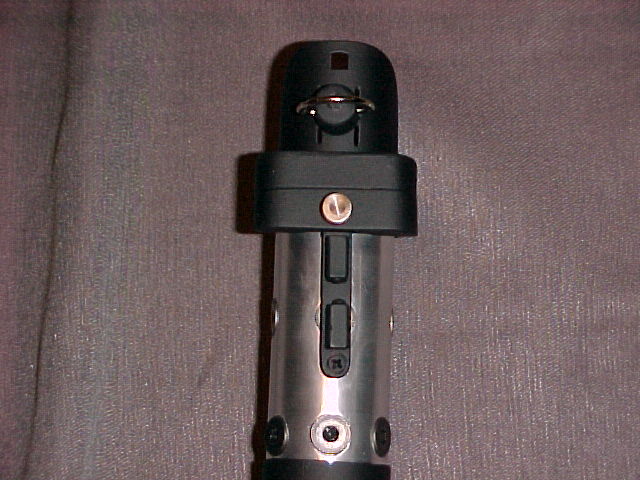

Darth Vader ROTJ Lightsaber
This lightsaber was made from aluminum tube and a conversion kit obtained via the Prop Builder's Forum.



Other Replicas

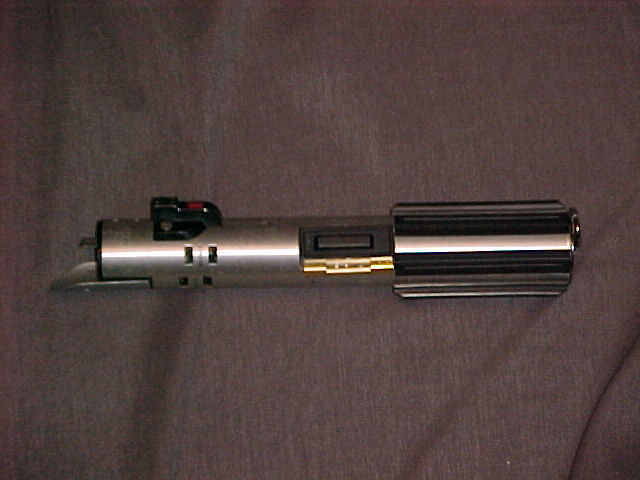

Skywalker Lightsaber from the 1978 Star Wars Holiday Special
This is the lightsaber that was seen on Luke's belt in the Holiday Special. It is constructed from a real Graflite flash.

ls-hs1t.jpg (2028 bytes)    ls-hs2t.jpg (2065 bytes)    ls-hs3t.jpg (1980 bytes)     ls-hs4t.jpg (2373 bytes)

Qu Rahn/Kyle Katarn Lightsaber from Dark Forces II: Jedi Knight
This is a replica of the lightsaber that was constructed by the Jedi Knight Qu Rahn, which was passed to Morgan Katarn for safe keeping along with the map to the Valley of the Jedi. This lightsaber was then inherited by Kyle after Morgan's death. Kyle used the lightsaber in his battle to protect the Valley from the Dark Jedi Jerec. A lot of the construction ideas I used to make this prop can be found here.

kk1th.jpg (2245 bytes)    kk2th.jpg (2239 bytes)    kk3th.jpg (2497 bytes)     kk4th.jpg (2159 bytes)

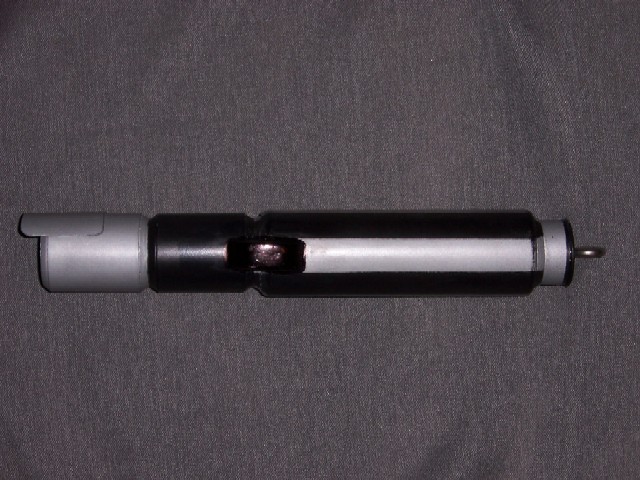

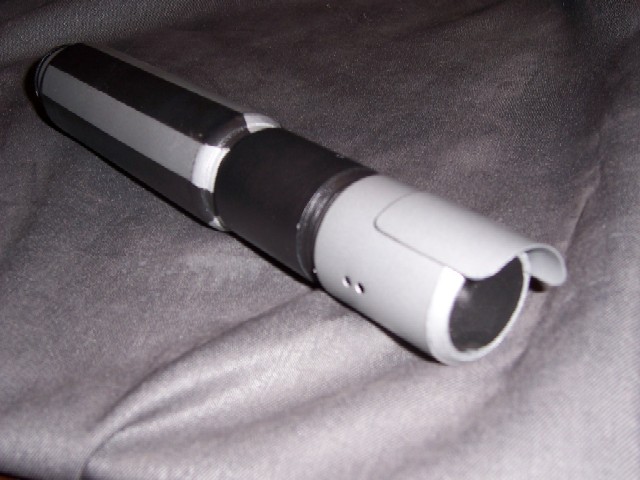

Jerec Lightsaber from Dark Forces II: Jedi Knight
This is a replica of the lightsaber used by the Dark Jedi, Jerec. As with the Katarn lightsaber, a lot of the construction ideas I used to make this prop can be found here.
