Pradovit Remote Control |
||||

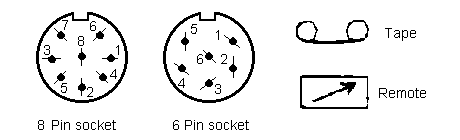

Model | Socket type | Pin No. Function | ||
R - RA 150 | 6 Pin tape socket | 6 + 4 Focus | ||
3 + 4 Focus | ||||
3 + 2 Forward slide change | ||||
3 + 1
Reverse slide change |
||||
Color 150 | 6 Pin remote control socket | 6 + 5 Focus | ||
Color 250 | 6 + 4 Focus | |||
Color 150 AF | Focus not possible | 3 + 2 Forward slide change | ||
Color 250 AF | Focus not possible | 3 + 2 + 1 Reverse slide change | ||
C 1500 - CA 1500 | ||||
C 2500 - CA 2500 | 6 Pin tape socket | 3 + 2 Forward slide change | ||
C 2500 - SAF 2500 | Manual focus not possible | 3 + 2 +1 Reverse slide change | ||
6 + 3
MUST NOT be shorted |
||||
5 + 4 made in AF poss. | ||||
C 1500 - CA 1500 | Remote control socket | 6 + 4 Focus | ||
C 2500 - CA 2500 | 3 + 4 Focus | |||
S 2500 - SAF 2500 | 8 Pin socket | 3 +2 Forward slide change | ||
3 + 2 + 1 Reverse slide change | ||||
6 + 3 MUST NOT be shorted | ||||
7 + 3 MUST NOT be shorted | ||||
R 152 - RA 152 | 6 Pin tape socket | 1 + 3 Forward slide change | ||
2 + 3 Reverse slide change | ||||
6 + 4 Focus | ||||
3 + 4 Focus | ||||
6 + 3 MUST NOT be shorted | ||||
CA 2502 | 8 Pin remote control socket | 3 + 4 Focus | ||
6 + 4 Focus | ||||
3 + 2 Forward slide change | ||||
3 + 1 Reverse slide change | ||||
6 + 3 MUST NOT be shorted | ||||
7 + 3 MUST NOT be shorted | ||||
CA 2502 | 6 Pin tape socket | 3 + 2 Forward slide change | ||
Manual focus not possible | 3 + 1 Reverse slide change | |||
6 + 3 MUST NOT be shorted | ||||
Color 110 | 6 Pin remote control socket | 3 + 2 Forward slide change | ||
6 + 1 Reverse slide change | ||||
6 + 4 Focus | ||||
3 + 4 Focus | ||||
6 + 3 MUST NOT be shorted | ||||
Pradovit RC | 6 Pin remote control socket | 3 + 2 Forward slide change | ||
6 + 4 Focus | ||||
6 + 5 Focus | ||||
6 + 3 MUST NOT be shorted | ||||
All data is believed to be correct . | No liabilty can be accepted for errors . | If in doubt , check user manual |
