GAMMAPanel Radiator

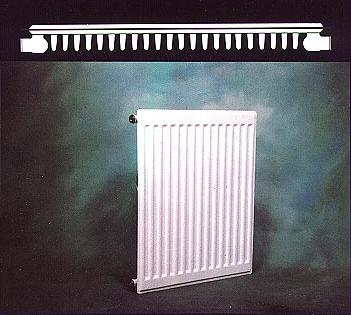

GAMMA Radiators are designed to meet the requirements of modern heating systems.
They are manufactured and tested according to DIN specification 4704.

PC

PCCP
TYPES
GAMMA radiators are manufactured in two types :
* Single Panel Convector (PC)
* Double Panel Convector (PCCP)


SIZES
GAMMA radiators are available in 2 heights (400 & 600 mm)and lengths ranging from 300 up to 2000 mm in intervals of 100 mm.

TYPES PC / PCCP
HEIGHT
H(mm)
400 & 600
LENGTH
L(mm)
18 size from
300 to 2000mm


CONNECTION
GAMMA radiators have 4*1/2" BSP Female threads.All radiators are supplied with chromium plated grade plugs and air vents.


INSTALLATION
GAMMA radiators are light weight,therefor easy to install.Each radiator is supplied with brackets and screws.
The radiators are fitted with corner protections and shrink wrapped in order to prevent damage during transportation and installation.






SUPERIORITIES OF GAMMA RADIATORS
Convectors are made of 0.5mm steel and welded on top of water channels in order to get the hieghtest performance from our panel.

The top cover is designed,so that warm air from convectors is directed into the room and not into the wall.

GAMMA radiators are supplied with all the accessories needed for quick and simple installation.

Powder painting enhances GAMMA radiators appearance and at the same time extends its life by preventing corrosion.



TECHNICAL DATA


HEIGHT
(mm)
TYPE WATER VOLUME
It/m
WEIGHT
kg/m
K.cal/hm
at 60 c
LENGTH(mm)
MIN-MAX
400 PC 2.1 13.1 800 300 - 20000
PCCP 4.2 24.9 1400 300 - 20000
600 PC 3.2 19.0 1100 300 - 20000
PCCP 6.4 37.0 2000 300 - 20000
