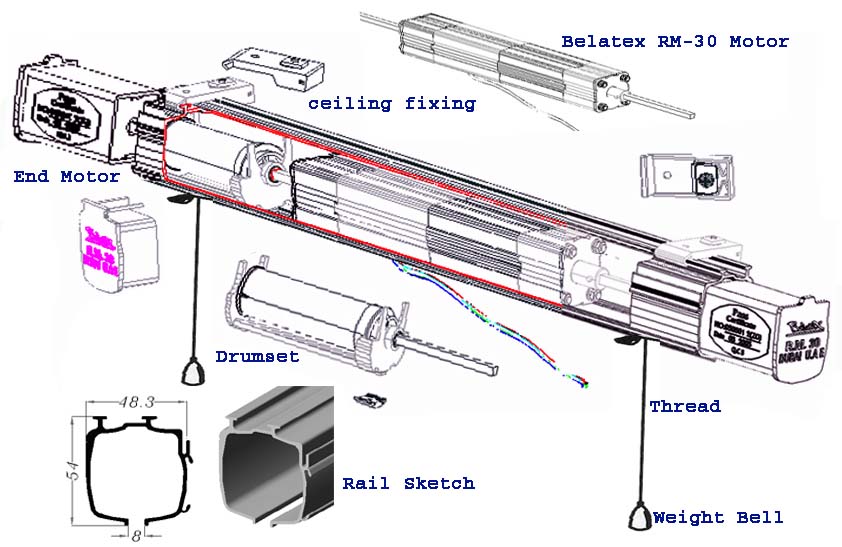

* Belatex's RM-30... Motor suitable for our Roman Blinds*







RM-30 Motor Specifications:

             Weight ------------------- 18kg.
             Drum Height ----------- 5.5m
             Motor Length ---------- 280mm
             Torque ------------------- 6 N.M.
             Voltage ------------------- 230v
             Frequency --------------- 50hz
             Current Rating --------- 0.6A (about)
             Motor Revolution ----- 2800 R.P.M.
             Number of Poles ------ Single Phase
             Thermal Protection --- 130
             Motor Insulation ------- F
             Time Rating ------------- 4min.
             Square Size -------------- 40x40mm
             Output Revolution --- 30 R.P.M.
