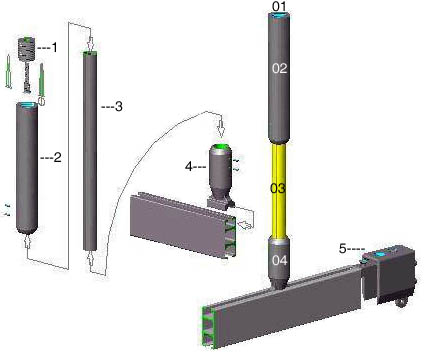

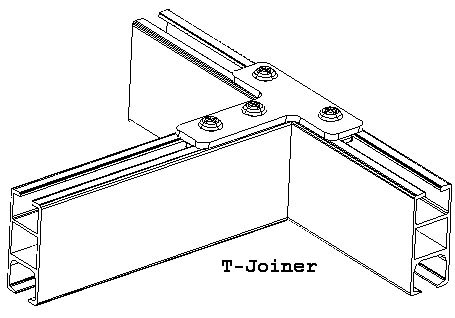

ASSEMBLING INSTRUCTIONS: 01- A screw with a hole in hte cnter should be fixed with a two inches screw in the ceiling. 02- This holder must be screwed on the screw no.01. 03- Fix the holder pipe in holder no.02 and hold it by a two small screw at the side. 04- This joiner must be inserted first in the profile and adjust it to be horizontal to the holder, then, insert the pipe in it and fix by a two small screw in the side. 05- To be fixed first in the wall with two screws then insert the profile in it and fix with two screw at the top. |

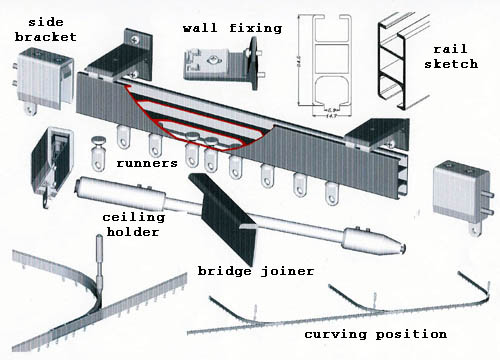

Belatex Rail 2500 Features: 01. This rail has a very flexible anodised aluminium profile, easy to bind to any position required. 02. Complete with all accessories to be fitted at the wall, hanged to the ceiling. 03. Silver in colour, complete with all accessories to be operated smoothly and noiseless. 04. The simple design creates a bright and clean image. 05. Attractive profile combines mechanical strength and flexibility with the smoothest performance. 06. Well suited to applicataion where an image of great cleanliness is needed such as hospitals. 07. The top channel maximises connections positions and suspensions variation. 08. The dust cover strip reduces the risk of cross infection. 09. Strong back easy operates the medium and heavy curtains. 10. The track is made from aluminium with anodised or powder colour finishing and easy to cut by hacksaw to specified sizes. 11. Curved tracks and complete range of accessories for curdved track installation are suitable. 12. Working smoothly up to 3kg weight of curtain for each one meter. |
