Body Code Plate Interpretation

1981 thru 1989

Charts and diagram from the Chrysler Factory Service Manuals. There seem to be some errors in the decoding process, an error in the first year Chrysler published this info and has been carried over ever since (proof is that both the image and chart appear in the '89 manual yet the decoding doesn't match!). Click here for decoding earlier years (77 thru 81).

Other info:
Color Codes

numbers in green are for factory use only and cannot be decoded

Line
No.

6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

5 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

3 1 2 3 5 6 7 9 10 11 14 17 18 19 20 21 22 23

2 1 2 3 5 6 7 8 10 11 12 14 15 16 18 19 20 21 22 23

1 1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 18 19 20 21 22 23

Line
No. Code Position Code Interpretation

1 1 thru 4
5
6 thru 16
17
18 thru 23 Model
(blank)
V.I.N. (Information half)
(blank)
V.I.N. (sequence number)

2 1 thru 3
4
5 thru 8
9
10 thru 12
13
14
15 & 16
17
18 thru 23 1st. Body Paint Code
(blank)
Trim
(blank)
Engine (sales code)
(blank)
Month
Day of Month
(blank)
Order Number

3 1 thru 3
4
5 thru 7
8
9 thru 11
12 & 13
14

15&16
2nd. Body Paint color
(blank)
Vinyl Roof
(blank)
Transmission (sales code)
(blank)
U=U.S. Order
C=Canadian Order
I=International Order
(blank)

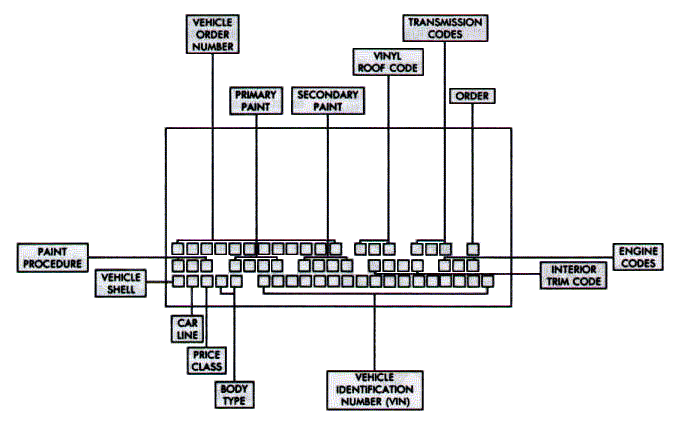

This diagram appeared in the 1989 service manual to aid in decoding.

1977 thru 1981 Decoding

numbers in green are for factory use only and cannot be decoded

Line No.
6	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23
5	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23
4	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23
3	1	2	3		5	6	7			10
2	1	2	3		5	6	7	8		10	11	12		14	15	16		18	19	20	21	22	23
1	1	2	3		5	6	7		9	10	11	12	13	14	15	16	17	18	19	20	21	22	23

Line No.	Code Position	Code Interpretation
1	1st 3 digits 4th 5th thru 7th 8th remaining digits	engine code (open space) transmission code (open space) VIN number
2	1st 3 digits 4th 5th thru 8th 9th 10th thru 12th 13th 14th thru 23rd EXAMPLE: 14th 15th & 16th 17th 18th thru 23rd	lower body paint color code or fleet or special order paint codes (open space) trim code (open space) interior paint colors and build code (open space) vehicle sales order number month code day of month (open space) vehicle order number
3	1st 3 digits 4th 5th thru 7th 8th & 9th 10th remaining digits	upper body color code or two tone color code (open space) vinyl roof code (open space) Order code: U=U.S. C=Canada I=International open spaces

If you have questions or more info on this subject, feel free to e-mail me.
