1.1.4 Updated Conclusions, May 2004
Whoever said that hindsight is 20/20 was right. Given the above status , it is not surprising that changes in the system were to be necessary to get to the next level. On re-reading, I'm surprised that I enjoyed the sound...it was bright and detail but I would say the tone was missing. Today the sound is bright and detailed but without being harsh or strident. The major changes in order of impact are as follows:
Each and everyone of these elements giving me about 10% more than what I had surmise to have had in the era of my "Preliminary Conclusions".
The SLA-1 amplifier is made for the "pro" market. This means balance XLR inputs and unbalanced 1/4" phono plug inputs (a la the DI/O)are used. I used a RCA femaile to 1/4" male phono plug adapter to enable the use of standard RCA terminated cables. The output is 100W into 8 ohms with a 1 dB bandwidth between 10 Hz and 40 Khz. The PDF for the SLA-1 User's Manual is available.

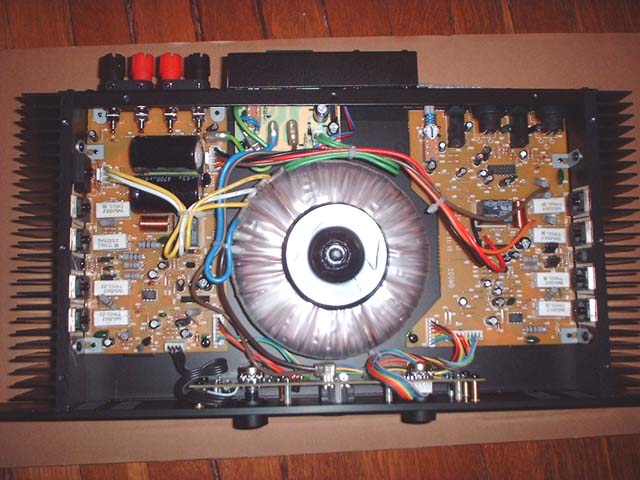

The SLA-1 is based upon two large printed circuit boards to the left and right of the centrally mounted toroidal transformer, a front panel PCB and a small board behind the transformer used for the IEC connector/fan regulator/ground lift switch.
The power supply and most of the weight is due to a centrally mounted toroidal power supply with a center tapped 76V output (i.e. 38-0-38) and a secondary 13V RMS output consisting of two green wires. This is used to power fan section that gets a 1/2 way rectified DC 7808 8V regulated DC. I can detect a faint hum coming from the transformer. The full wave rectifier bridge (unmarked) is heatsinked to the left channel...updating this to soft recovery types may be more difficult unless one uses higher rated parts and no heat sinking. The main power supply uses 4700 uF 63V (Metacon) units for the positive and negative supply (mounted on left channel output board). These provide +/-50V rails. For 100W output into 8 ohms, the outputs need to generate a 40V peak. The input, volume section and pre-driver section are powered off +/-15V derived from zener diodes off the +/-50V main DC supply.
The remaining 20 electrolytics (for each channel)are made by Tocon (whom I have not heard of) consist of about 4 x 220uF units, 1 x 100uF unit and a ton of 10uF 50V units. There are some green film units (about four of them) are used in various parts of the amplifier with values of 0.1uF and 0.001uF.
The 1/4 watt resistors are 5% units. Larger 1 watt units are found for the 10 ohm stabilization network, 2 x 1 kohm unit, 2 x 470 ohm units, a 100 ohm, and 2 x 47 ohm units, unit.
The quad op-amp Matsushita AN6554 uses two of the units for left and right channel in differential to single ended gain configuration providing 3.52 dB gain (1.5x) for single ended inputs. The 14 pin package uses pins 8,9 and 10 for the left channel and pins 5,6 and 7 for the right channel. A 22K and 33k feedback resistor set the gain for this stage. A second pair of these is needed for handling the balanced inputs. Two input DC blocking caps and and output cap complete the circuit. The phono plugs TRS (tip ring sleeve) provide IN+, IN- and ground connections for differential inputs. Single ended Phono plugs will short IN- to the sleeve/ground and provide single input via the TIP portion of the plug. Both the XLR and Phone plug inputs provide for balanced inputs. It should be possible to flip the phase of the amplifier by feeding a input to the "RING/IN-" input and grounding the "TIP/IN+" to ground/sleeve.
The outputs from the input stage go to a 9 pin header and connect to the front panel PCB. A third op-amp (of the four in the AN6554) provides a Unity Gain buffer from the volume control before going to amplifier section. The fourth op-amp is provide for phase inversion in bridge mode.

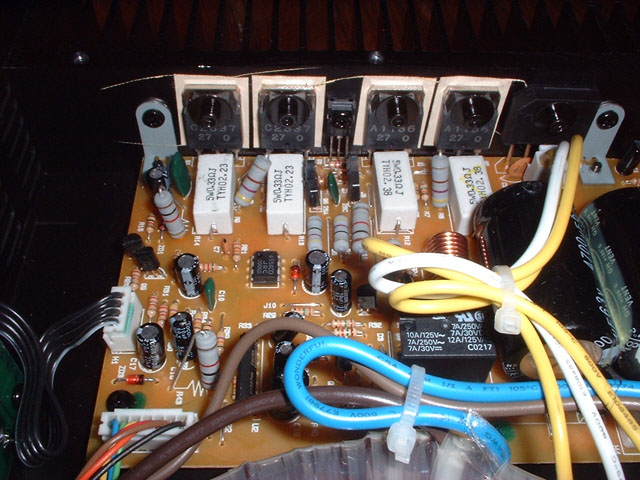

The output stage is a complimentary Darlington configuration with about 10% local feedback. The output side of the Darlington are two pairs of 60 Mhz output transistors: 2SC2837 (NPN) and 2SA1186(PNP) complimentary bipolar transistors are used for each channel and arranged in common emitter configuration . These biasing current was found to be 47mA in the left channel and 32mA in the right channel. The input side to the darlington consists of a complimentary pair made up of 2SC3421/2SA1358 devices (10W, Vceo=120V, 1A, ft=120 MHz).
This is driven by 1/2 of the 4558 opamp. Feedback components set the gain to about 25 dB (18.3x). Signals coming in are both high and low pass filtered. The output stage contains a classic zobel network to stabilize the amplifier. There is no DC servo control so large caps are needed to provide for high pass filter that limits the amplification of subsonic signals.
A generic 812H relay provides a delayed connection to the speakers and instantaneous disconnect to them during power on and power off , respectively. This means that there is not turn on transient or turn off transient. The same relay disconnects the output in the event of overheating and shorted outputs.A second sourced UPC1237HA chip is used to sense when to open the relay breaker and protect the chip. One is used per channel. Two small signal transistors (Q19 and Q20) are 50V/150mA 2SC945 NPN devices (ft=300Mhz) and 2SA1015 PNP devices(ft=80 Mhz) make up a current sense circuit to feed into pin 1 of the protection IC. These general purpose transistors are also used near the bottom of the left channel board and in the front panel board. My guess is that they provide for compare functions for the green signal LED, red clip LED and the overload LED.
For an inexpensive amplifier, the ART is feature laden. It is possible to simplify the circuit further by disabling some of these features. Parts swap are the order of the day for electorlytic caps and the signal gain resistors. Care needs to be excercised if replacing the opamp in the amp stage as a higher gain/wider bandwidth opamp could destabilize it. I am somewhat dissapointed in the lack of a DC servo to null out output offset. A phase inversion feature could be implmented easily enough but the detailed implementation needs to be worked out.

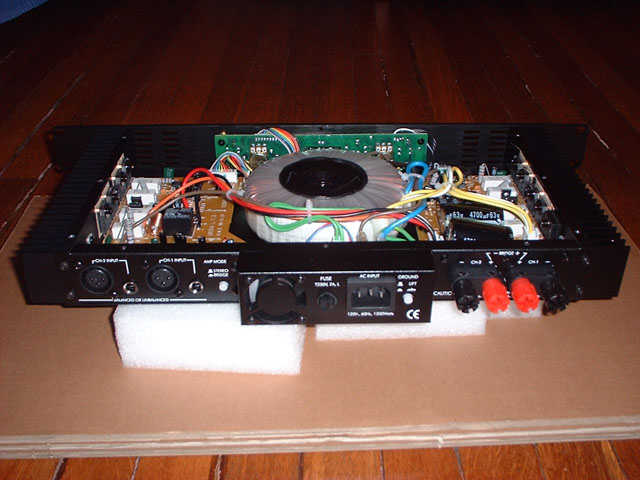

Click on images below for enlarged view:
For a comparison to someting else, here are some pictures of the State of the Art Class A Plinius SA-102. It has 4 pairs of output devices versus SLA-1's two pair; Two toroids (versus one for ART); soft start circuitry to avoid high inrush currents; larger heat sinks; 25 more watts into 8 ohms, 70 pounds more to lift, and a whole lot more money.
As little "orphan Annie" said, "I think I'm going to like it here". My gut feeling is that I like the road this little unassuming unit is leading me toward. Already, some of the signatures I hear can either be trace to the upstream sources while some are due to the unit itself. Hopefully, t ime, experiments, mods and more listening will sort these aspects out.
I've already hinted at the ground lift position as having an effect on the sound. RCA jacks are probably soon to follow. Over at AudioCircles, Occam has created a thread to capture and express his thoughts on potential mods...please feel free to jump in and contribute. Most of the major stuff(passives, actives) will not happen until schematics are available, so sit tight.
For members of the Art DI/O DAC Yahoo group Diomods, I have created a SLA-1 information folder and stockpiled a number of specs (UPC1237 protection circuit chip and 4558 dual opamp) and the hard to find SLA-1 User's Guide. Your's free for joining the group. Feel free to add to the file collection in the folder. Its only been a few days but here is a first stab at mods to the SLA-1:
June 7 Update: In terms of the major stuff, I'm going to let the unit ride for a while based upon my last listening session in Section 1.1.2. When schematics become available, the following experiments will be performed as more long term extended listening tests pinpoint the synergy in the system. As it sits (near stock), the SLA-1 designers have been able to nail a sound that is just plain "sweet".
For the amplifier stage upgrading the JDC 4558 may be worthwhile. Only pins 1,2 and 3 of this dual opamp are used. Good choices for opamps would be ones with similar open loop gain and slightly better bandwidth behaviour for stability.
This will be based upon trying to create synergy in the system by altering cables, cable polarity, source component configuration, and simple bypass experiments. Most important will be using the amplifier in stock fashion in different systems with different source components, speakers, interconnects and speaker wires. May take some time but I have a few co-conspirators already. .. ........
