MEC LOCOMOTIVES - 1970
MEC LOCOMOTIVES - 1970
CLASS NUMBER BUILDER MODEL WEIGHT GEARING SER # BUILT COLOR NOTES

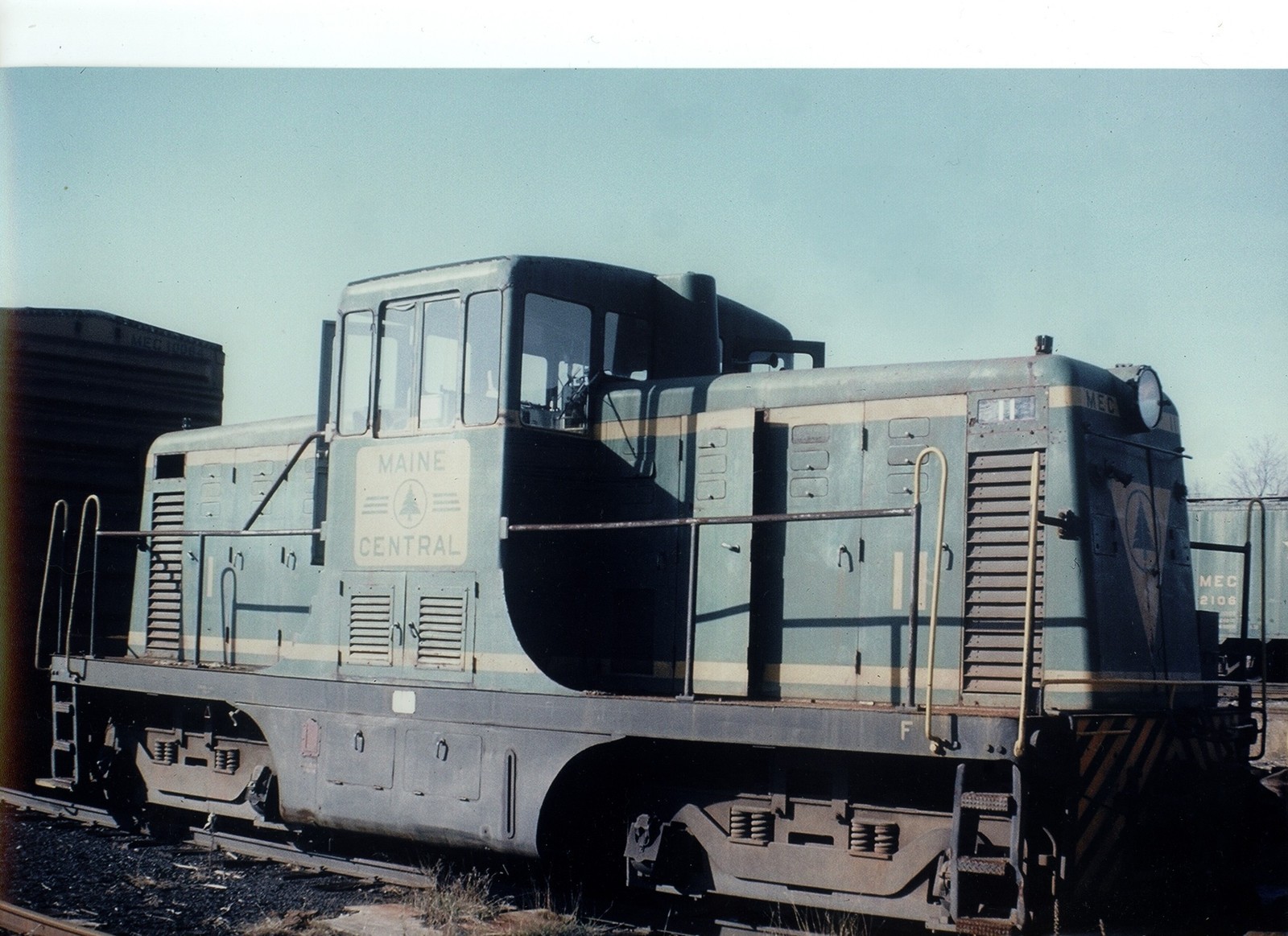

DS-1a 11 GE 44 TON 89600 11.25:1 13095 9/41 GREEN W/YELLOW STRIPES & HERALD

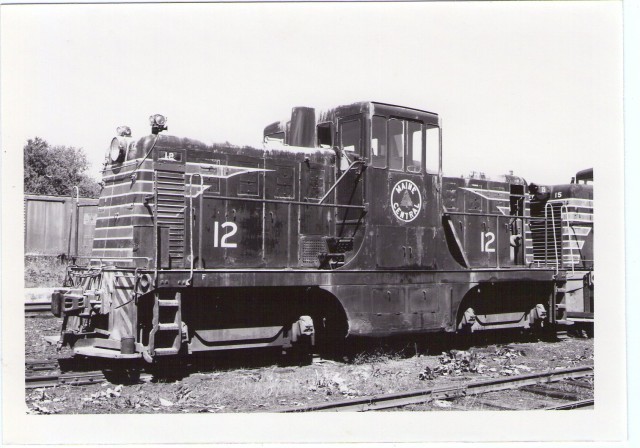

DS-1a 12 GE 44 TON 89600 11.25:1 15037 8/42 BLACK W/RED & WHITE NOSE STRIPES
DS-1a 13 GE 44 TON 89000 11.25:1 27973 5/45 BLACK W/RED & WHITE NOSE STRIPES
DS-1a 14 GE 44 TON 89000 11.25:1 27974 5/45 BLACK W/RED & WHITE NOSE STRIPES

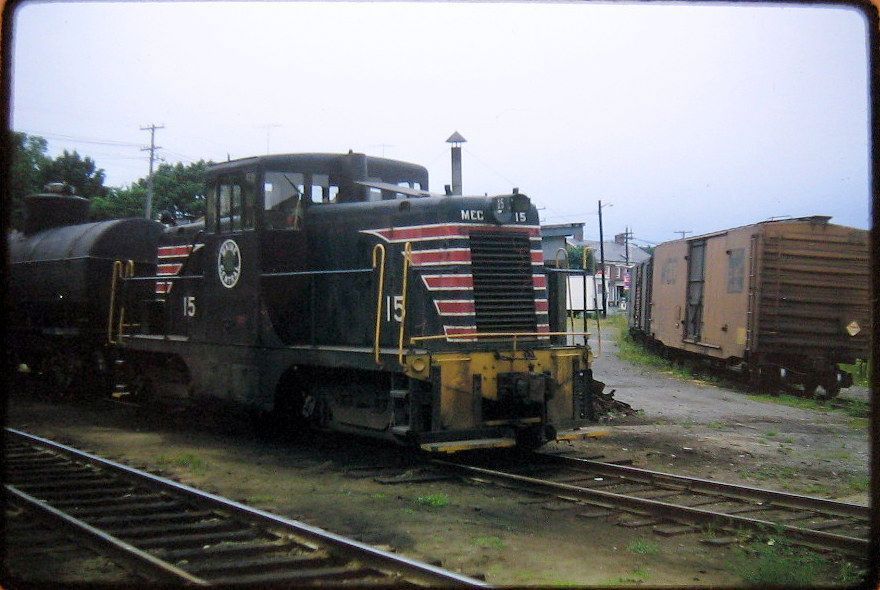

DS-1a 15 GE 44 TON 89000 11.25:1 27975 5/45 BLACK W/RED & WHITE NOSE STRIPES

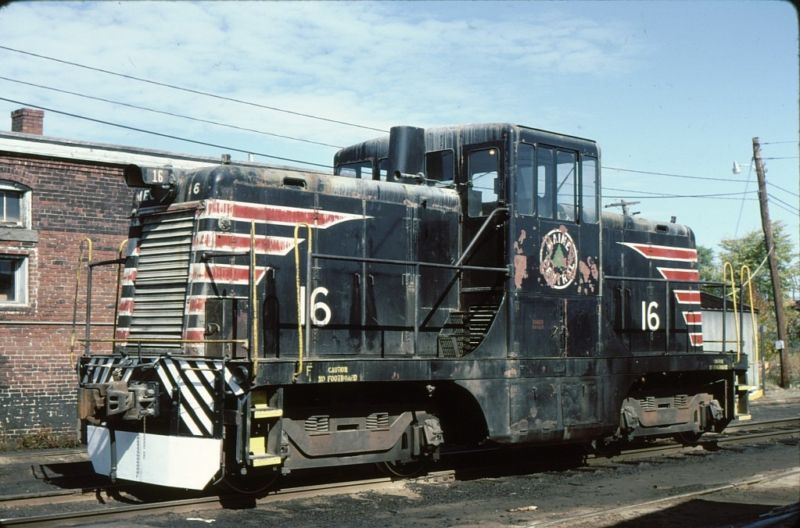

DS-1a 16 GE 44 TON 89000 11.25:1 28488 5/46 BLACK W/RED & WHITE NOSE STRIPES
DS-1a 17 GE 44 TON 89000 11.25:1 28348 5/47 BLACK W/RED & WHITE NOSE STRIPES
DRS-4 251 EMD GP-38 257000 62:15 32660 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 252 EMD GP-38 257000 62:15 32661 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 253 EMD GP-38 257000 62:15 32662 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 254 EMD GP-38 257000 62:15 32663 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 255 EMD GP-38 257000 62:15 32664 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 256 EMD GP-38 257000 62:15 32665 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 257 EMD GP-38 257000 62:15 32666 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 258 EMD GP-38 257000 62:15 32667 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 259 EMD GP-38 257000 62:15 32668 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 260 EMD GP-38 257000 62:15 32669 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 261 EMD GP-38 257000 62:15 32670 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 262 EMD GP-38 257000 62:15 32671 11/66 HARVEST GOLD W/GREEN TRIM
DRS-4 263 EMD GP-38 257000 62:15 33280 9/67 HARVEST GOLD W/GREEN TRIM
DS4-b 301 ALCO S-2 232900 65:18 76593 2/49 BLACK W/YELLOW NOSE
DS4-b 302 ALCO S-2 232900 65:18 76594 2/49 BLACK W/RED & WHITE NOSE STRIPES
DS4-b 303 ALCO S-2 232900 65:18 76595 2/49 BLACK W/RED & WHITE NOSE STRIPES
DS-4d 311 ALCO S-4 245500 65:18 78008 8/50 BLACK W/RED & WHITE NOSE STRIPES MEC considered unit S-2, but actually first S-4 built, M.U. capability
DS-4d 312 ALCO S-4 245500 65:18 78020 8/50 BLACK W/RED & WHITE NOSE STRIPES MEC considered unit S-2, but actually first S-4 built, M.U. capability
DS-4d 313 ALCO S-4 245500 65:18 79502 12/51 M.U. capabilty
DS-4d 314 ALCO S-4 245500 65:18 81096 9/54 GREEN W/ GOLD-2 STRIPE W/RECTANGLE M.U. capabilty
DS-4d 315 ALCO S-4 245500 65:18 81097 9/54 GREEN W/ GOLD-2 STRIPE W/RECTANGLE M.U. capabilty
DS-4d 316 ALCO S-4 245500 65:18 81098 9/54 GREEN W/ GOLD-2 STRIPE W/RECTANGLE M.U. capabilty
DS-4d 317 ALCO S-4 245500 65:18 81099 9/54 M.U. capabilty
DS-5a 331 EMD SW-7 247500 62:15 12370 9/50 MAROON W/GOLD TRIM-3 STRIPES M.U. capabilty
DS-5a 332 EMD SW-7 247500 62:15 12371 9/50 MAROON W/GOLD TRIM-3 STRIPES M.U. capabilty
DS-5a 333 EMD SW-7 247500 62:15 12372 9/50 MAROON W/GOLD TRIM-3 STRIPES M.U. capabilty
DS-5a 334 EMD SW-9 247500 62:15 14754 8/51 MAROON W/GOLD TRIM-3 STRIPES M.U. capabilty
DS-5a 335 EMD SW-9 247500 62:15 19044 12/53 GREEN W/ GOLD TRIM-3 STRIPES M.U. capabilty
DRS-1b 553 ALCO RS-2 233000 74:18 76636 2/49 GREEN W/ GOLD-2 STRIPE W/RECTANGLE
DRS-1b 554 ALCO RS-2 233000 74:18 76637 2/49 GREEN W/ GOLD-2 STRIPE W/RECTANGLE
DRS-1d 556 ALCO RS-3 248000 74:18 80566 11/53 GREEN W/ GOLD TRIM-3 STRIPES
DRS-1d 557 ALCO RS-3 248000 74:18 80567 11/53 GREEN W/ GOLD TRIM-3 STRIPES
DRS-3a 561 EMD GP-7 247200 62:15 12362 10/50 MAROON W/GOLD TRIM-3 STRIPES Dynamic brake equipped
DRS-3a 562 EMD GP-7 247200 62:15 12363 10/50 MAROON W/GOLD TRIM-3 STRIPES Dynamic brake equipped
DRS-3a 563 EMD GP-7 247200 62:15 12364 10/50 Dynamic brake equipped
DRS-3a 564 EMD GP-7 247200 62:15 12365 10/50 GREEN W/ GOLD-2 STRIPE W/RECTANGLE Dynamic brake equipped
DRS-3a 565 EMD GP-7 247200 62:15 12366 10/50 GREEN W/ GOLD TRIM-3 STRIPES Dynamic brake equipped
DRS-3a 566 EMD GP-7 244000 62:15 19041 11/53 GREEN W/ GOLD-2 STRIPE W/RECTANGLE Dynamic brake equipped
DRS-3a 567 EMD GP-7 244000 62:15 19042 11/53 GREEN W/ GOLD TRIM-3 STRIPES Dynamic brake equipped
DRS-3a 568 EMD GP-7 244000 62:15 19043 12/53 GREEN W/ GOLD TRIM-3 STRIPES Dynamic brake equipped
DRS-3a 569 EMD GP-7 244000 62:15 19044 12/53 GREEN W/ GOLD-2 STRIPE W/RECTANGLE Dynamic brake equipped
DRS-3b 571 EMD GP-7 247800 62:15 12367 9/50 GREEN W/ GOLD-2 STRIPE W/RECTANGLE Steam generator equipped, no dynamic brakes
DRS-3b 572 EMD GP-7 247800 62:15 12368 9/50 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 573 EMD GP-7 247800 62:15 14755 9/50 GREEN W/GOLD-3 STRIPE(SIMPLIFIED) Steam generator equipped, no dynamic brakes
DRS-3b 574 EMD GP-7 248160 62:15 14755 10/51 GREEN W/ GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 575 EMD GP-7 248160 62:15 17416 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 576 EMD GP-7 248160 62:15 17417 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 577 EMD GP-7 248160 62:15 17418 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 578 EMD GP-7 248160 62:15 17419 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 579 EMD GP-7 248160 62:15 17420 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 580 EMD GP-7 241300 62:15 17421 10/52 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-3b 581 EMD GP-7 246600 62:15 13533 12/50 MAROON W/GOLD TRIM-3 STRIPES Steam generator equipped, no dynamic brakes
DRS-1f 801 ALCO RS-11 246700 74:18 81616 6/56 GREEN W/ GOLD TRIM-3 STRIPES Dynamic brake equipped A VERY UNUSUAL LOOK!
DRS-1f 802 ALCO RS-11 246700 74:18 81617 6/56 GREEN W/ GOLD TRIM-3 STRIPES Dynamic brake equipped
DS-3b 953 ALCO S-1 198700 68:18 69411 1/41 BLACK W/RED & WHITE NOSE STRIPES No M.U. capabilty
DS-3b 954 ALCO S-1 198700 68:18 73085 1/45 No M.U. capabilty
DS-3b 955 ALCO S-1 198700 68:18 73589 10/45 No M.U. capabilty
DS-3b 956 ALCO S-1 198700 68:18 75350 7/47 BLACK W/RED & WHITE NOSE STRIPES No M.U. capabilty
DS-3b 957 ALCO S-1 198700 68:18 77107 10/49 BLACK W/RED & WHITE NOSE STRIPES No M.U. capabilty
DS-3b 958 ALCO S-1 198700 68:18 77108 10/49 No M.U. capabilty
DS-3b 959 ALCO S-1 198700 68:18 77109 10/49 BLACK W/YELLOW NOSE No M.U. capabilty
DS-3b 960 ALCO S-1 197600 68:18 77110 10/49 BLACK W/RED & WHITE NOSE STRIPES No M.U. capabilty
DS-3b 961 ALCO S-3 196300 68:18 80290 3/53 No M.U. capabilty
DS-3b 962 ALCO S-3 196300 68:18 80291 3/53 BLACK W/RED & WHITE NOSE STRIPES No M.U. capabilty
For a drawing of a typical 44 Tonner switcher-CLICK HERE
Click for drawing creator Go to railfan.net
For a drawing of a typical EMD GP-38 roadswitcher-CLICK HERE
Click for drawing creator Go to railfan.net

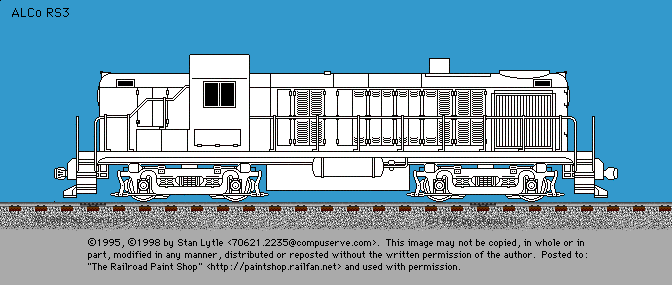

For a drawing of a typical Alco RS-3 roadswitcher-CLICK HERE
Click for drawing creator Go to railfan.net

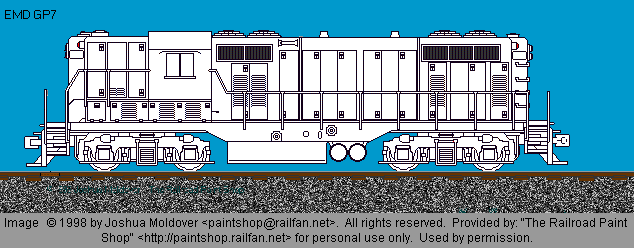

For a drawing of an EMD GP-7 with dynamic brakes-CLICK HERE
Click for drawing creator Go to railfan.net
For a drawing of an EMD GP-7 without dynamic brakes-CLICK HERE
Click for drawing creator Go to railfan.net
For a drawing of a typical Alco RS-11 roadswitcher-CLICK HERE
Click for drawing creator Go to railfan.net

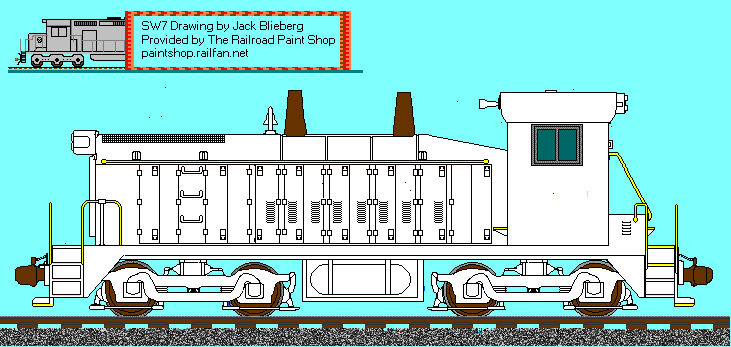

For a drawing of a typical EMD SW-7 switcher-CLICK HERE
Click for drawing creator Go to railfan.net

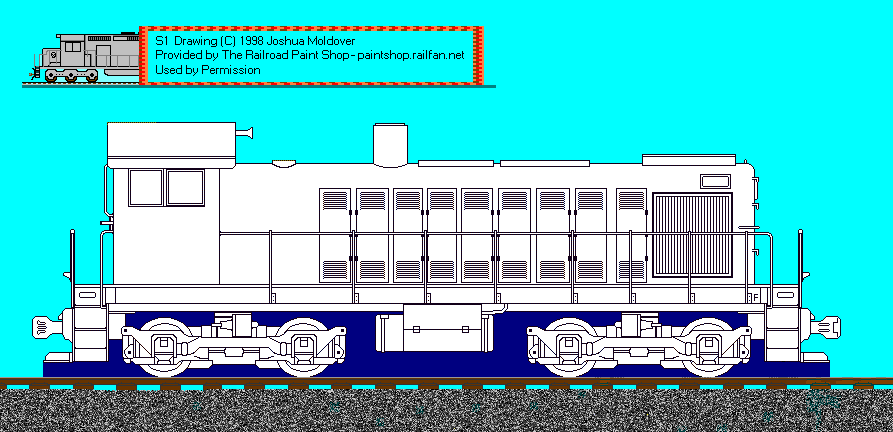

For a drawing of a typical S-1 switcher-CLICK HERE
Click for drawing creator Go to railfan.net

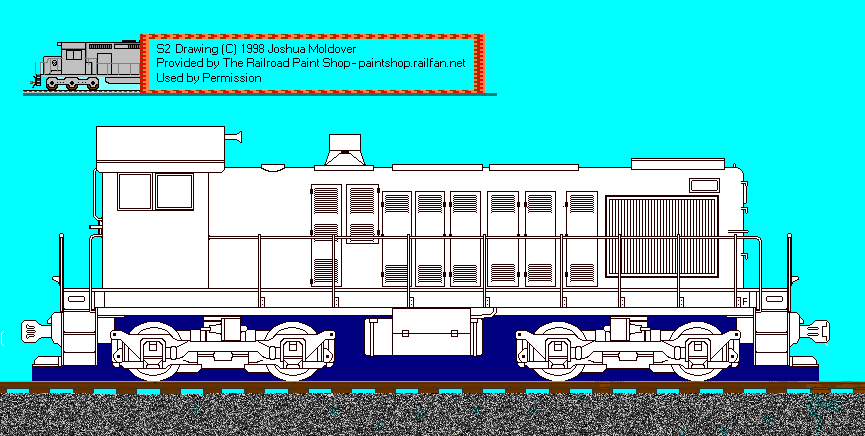

For a drawing of a typical S-2-CLICK HERE
Click for drawing creator Go to railfan.net

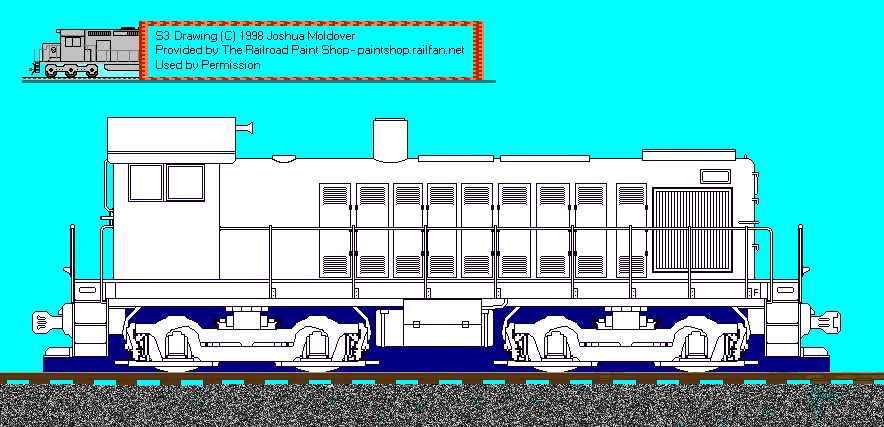

For a drawing of a typical S-3-CLICK HERE
Click for drawing creator Go to railfan.net

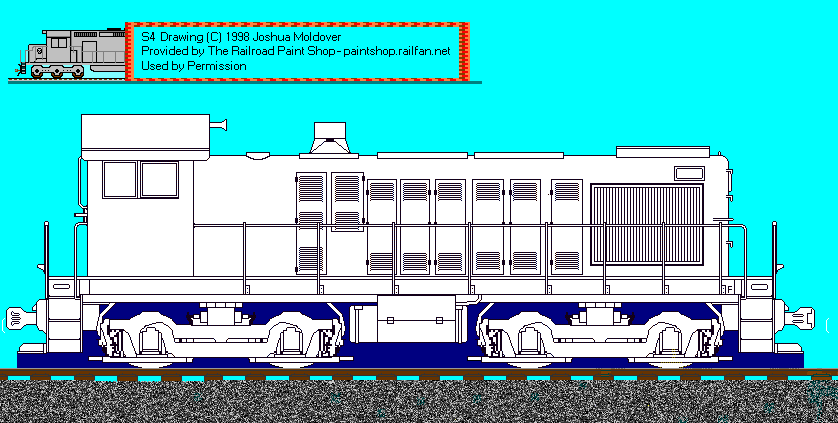

For a drawing of a typical S-4-CLICK HERE
Click for drawing creator Go to railfan.net
