wires
in rear edge of seat cover and fasten
as shown in Figure 33. Line up seams with
|
Figure |
41 |
|

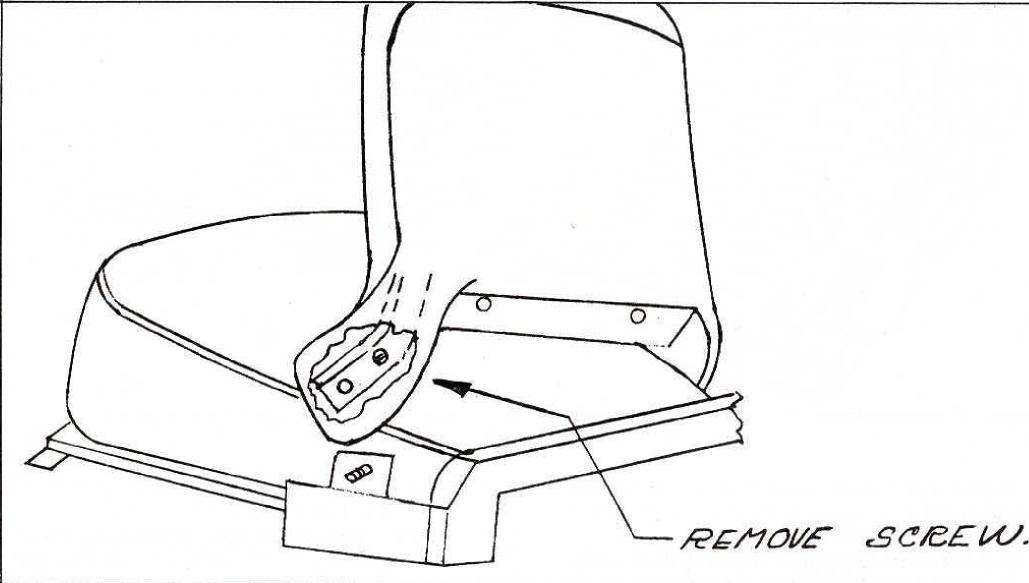

move sheet metal screw inside of side panel. |
|
|
Remove back panel as shown in Figure 41. |
|
|
4, Cut back out of seat cover as shown in |
8. |
|
Figure 37. |
|
|
5. Place seat cover over back rest and line up |
|
|
seams with contour of back rest and hog |
9. |
|
ring as shown in Figure 42. |
|
|
6. Repeat for opposite back rest. |
1 |
|
Place seat cover on seat cushion, insert |
|
contour
of cushion and hog ring as shown
in Figure 35.
Replace
back panel and sheet metal screws
on both back rests. Place back rest side
panel on shaft and replace hairpin clips.
Replace seat assembly in car, cap screws
in floor pan, and tighten securely.
.
Replace side panels and seat adjuster knob.
pproximate Flat Rate Time 1.5 hours.
