2.
3.
With hands in position as shown in figure
57, press gently, allowing time for glare
shade tip to creep slowly into door post
rubber channel.

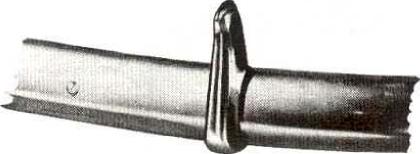

Figure 57
4.
Remove metal clip after installation is com
plete.
5. Repeat operation for other windshield glass.
Approximate Flat Rate Time .2 of an hour.
Clean
inside of windshield thoroughly. Peel
masking paper from glare shade. (Remove
any
excess gum by patting with "sticky"
surface of masking paper.) Insert metal
clip between rubber channel and windshield
glass. Insert glare shade between metal
clip and windshield glass as shown in figure
55. Important: TRADE-MARK MUST BE
FACING OUT AS SHOWN IN FIGURE 55.
Bow
glare shade and place butt end against
center post rubber, 1/4 inch away from
glass as shown in figure 56. (NOT BETWEEN
GLASS AND RUBBER CHANNEL.)
986113 BUMPER GUARD - TRUCK
Procedure
for Installation of Bumper Guard
on 3004 Model Trucks.
Figure 58
1.
Remove the two bolts in the bumper face
bar.
2.
Place bumper guard in hole on face bar,
using washer and nut and tighten securely.
Approximate Flate Rate Time .2 of an hour.
986486 RADIATOR GRILLE GUARD
Procedure
for Installation of
Radiator Grille Guard
on All Model Commercial Trucks.

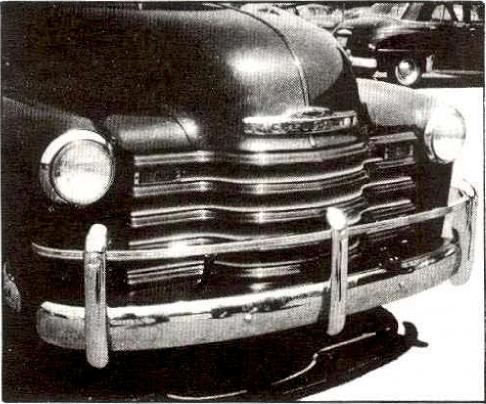

Figure 59
1.
Assemble three upright bumper guards to
bumper face bar and tighten securely as
shown in section AA, figure 60.
2.
Locate and drill two 1-3/4 inch holes in the
filler panel. To locate drilling positions to
filler panel, measure 1-15/16 inches from
rear edge of filler panel and
13-21/32 inches
from left side of center upright guard as
shown in figure 61. Use same measure-
Figure 56
