Drain
Radiator: Remove pipe plugs at "R"
and "S." Insert nipples and make connec
tions as shown in figure 78. Shortest length
of hose is used between heater and temper
ature control valve. Make sure that hose
from point "R" is connected to temperature
control. valve as shown in view at "T."
Tighten hose clamps securely.
Replace
engine thermostat with high temper
ature thermostat furnished. Permanent anti
freeze must he used. Temperature lever
should be set in warmest position while fill
ing system to avoid trapping air.
Make
sure that operating instruction tag
is
furnished to the customer.
Approximate Flat Rate Time 2.1 hours,
986513
RECIRCULATING HEATER AND
DEFROSTER
Procedure
for Installing Recirculating Heater
and Defroster
on All Model Passenger Cars.
2.
Attach the two lengths of hose to the de
froster fittings and attach the fittings under
the cowl as shown in figure 89. The longer
hose is used on the left side.

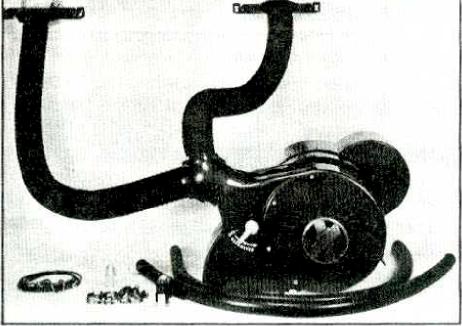

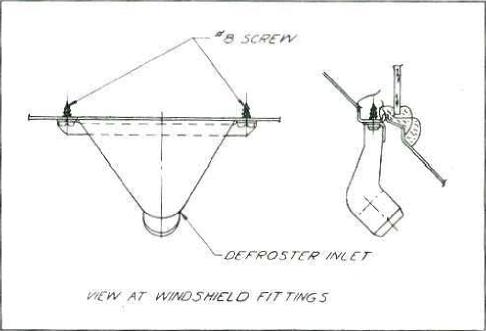

Figure 89
3.
Install air vent control bracket under lower
left corner of glove box, tsee view "H,"
figures 88 and 92},
Figure 87
IMPORTANT:
Clean, bright grounds help to
make the heater more efficient and increase
the H.P.M.'s of the glower, resulting in
heat.
1. Remove glove compartment.
more
Figure 90
Figure 88
