Procedure
for Installation of
Recirculating Heater on All Model
Trucks and Commercials.
1. Remove Glove Compartment.
2.
Attach the two lengths of hose to the de
froster fittings and attach the fittings under
the cowl as shown in figure 105. The 2"
hose is used on the left side.
|
3.
Reinstall glove compartment.
4.
Cut necessary holes in dash mat through
punched
holes provided in dash panel and
install
heater using attaching washers and
nuts
furnished as shown in figure 104. 5. Attach lower end of left defroster hose di |
|
|
rectly to the 2" outlet. Attach lower end of |
|
|
right hose to the 1--3/4" outlet. |
7. |
|
6. Install the heater switch in hole provided |
|
|
on lower flange of instrument panel, to the |
|
|
left of steering column, and install and con- |
8. |
|
nect wires as shown in figure 105. |

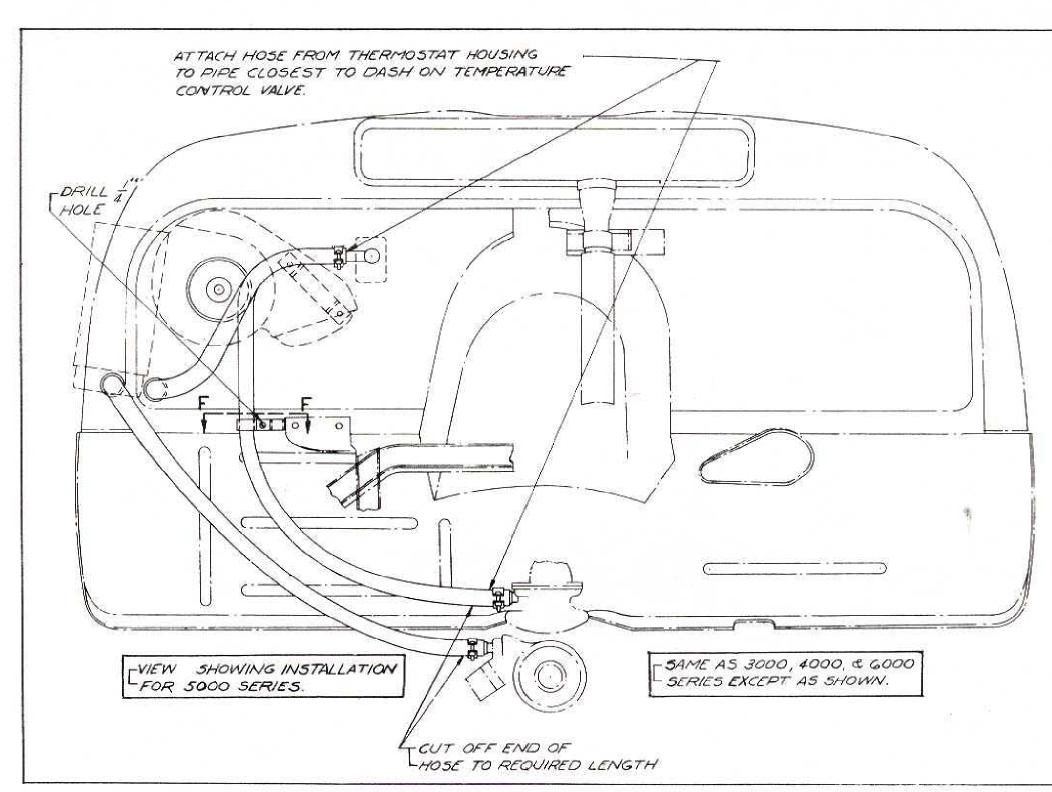

Figure 104
Drain
radiator and remove plugs from en
gine and install nipples at points "A" and
"B" as shown in figure 105.
Install
water hoses, clamps and bracket as
shown, making sure that upper hose at point
