fog
lamp switch terminal marked "TAIL" to
the light switch terminal marked "TAIL
LAMP". Place #l6 natural with black tracer
from terminal marked "BATTERY" on fog
lamp switch to battery terminal on rear of
light switch as shown in figure 119.
The
lamp aiming instructions are the same as
for passenger car, see page 46, figure 115. After
aiming lamps, tighten securely.
Approximate Flat Rate Time I hour.

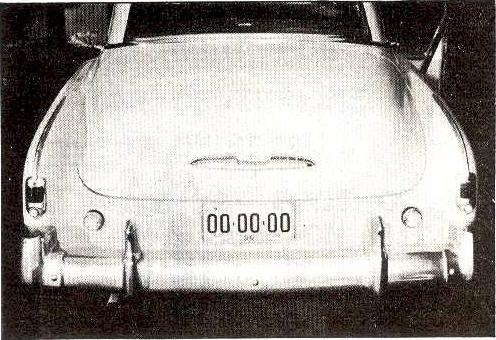

986408-986409 BACK-UP LAMPS
Procedure
for Installation of Back-Up Lamps
on All Model Passenger Cars.
SWITCH-CONVENTIONAL TRANSMISSION
2.
Mount
two spacers on housing above steer
ing column and tighten securely as shown
in figure 121.
Mount
switch on two spacers with switch
arm on same side as reverse gear lever
Figure 120
as shown in figure 121.
3. Secure
switch with two lockwashers and two
nuts.
4. If
any adjustment is needed, add flatwashers
under one end of switch bracket to raise or
lower switch as necessary.
SWITCH-POWER GLIDE TRANSMISSION
