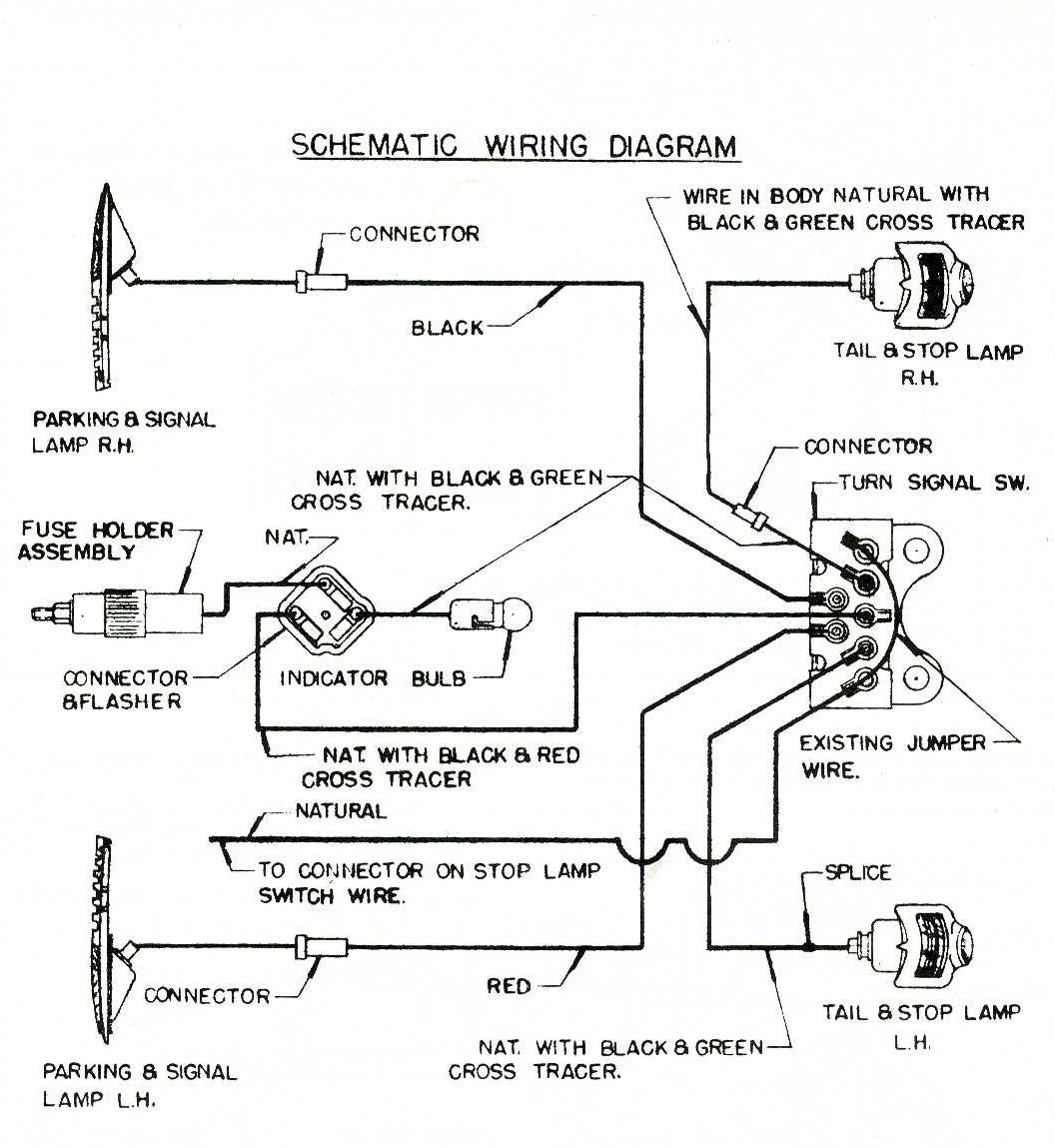

Figure 188 is the wiring diagram for 986514
Self Canceling Turn Signal. This diagram can be
used in locating trouble and servicing Turn Signals.

Figure 189 shows hook up for Sedan delivery
and Steel Station Wagons. Balance of installation
same as for Passenger Car.
