Procedure
for Installation of Turn Signal
on All Model Trucks.
1,
Remove flasher retaining screw and drop
flasher from switch arm, as shown in fig
ure 190. Mount switch arm to steering col
umn
with retaining screw through mounting
strap as shown in
figure 190. Reassemble
flasher unit into switch arm and install wir
ing harness to steering column with clips
as shown in figure 192. Attach fuse wire
(natural color) to off side of ignition switch.
Attach ground wire (natural with black
traces) to instrument mounting screw as

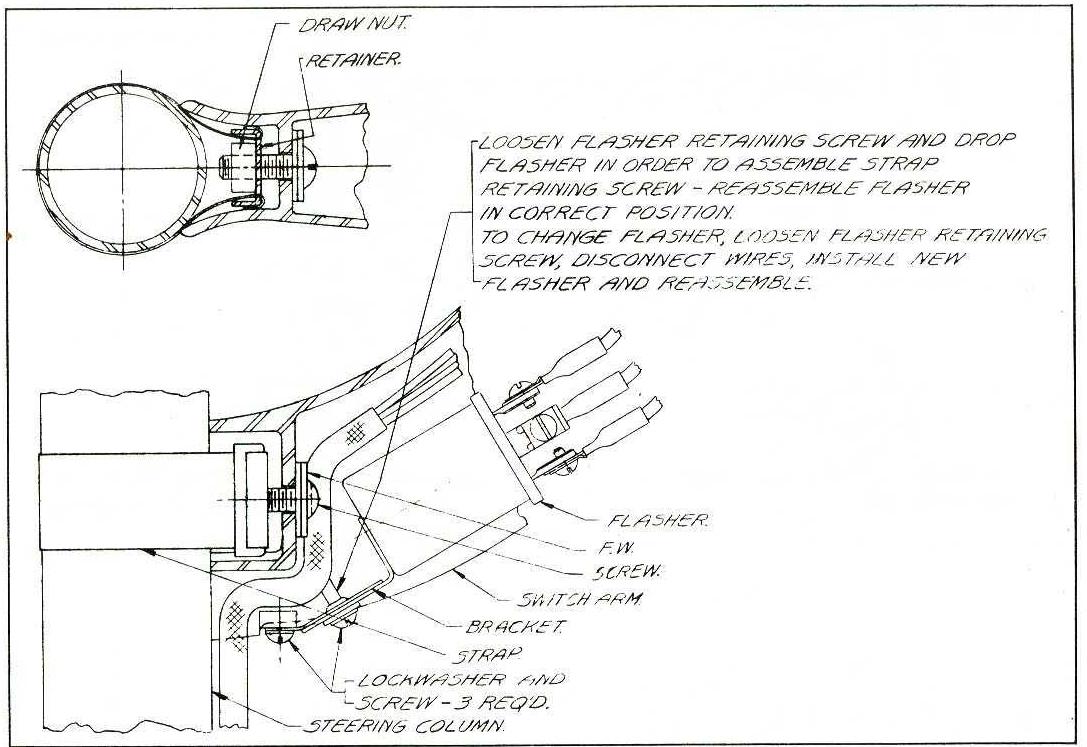

Figure 190
Figure
191
80
