PROJECT DATA IV

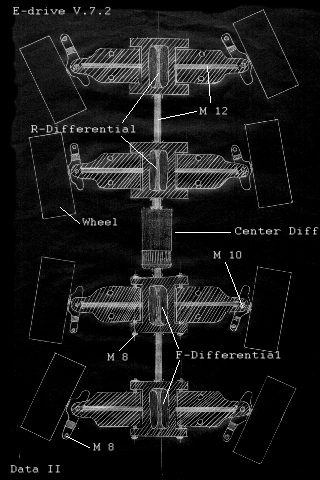

This is one of the first drawings for the 8-wheel drive of Data II, the prototype for Data IV.

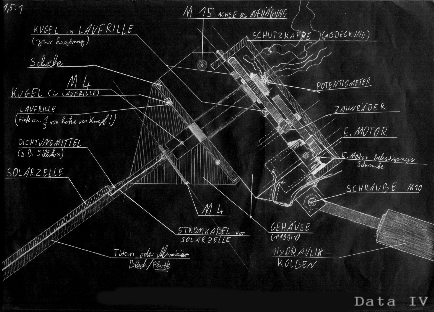

The mechanism of the Solar-Wings lift system. Data II, Data IV and Data IX are able to lift theyr side-Solar-Wings, turn them arround, and close them to protect them for example from fire... by the way the Solar-Wings cover a place where you can hide some equipments or repairing tools for Data II/IV/IX or anything else.
A side view of the Solar-Wing lift system.

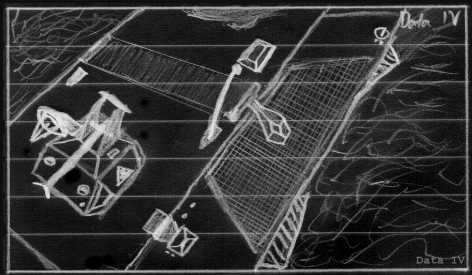

This is a quick drawing of Data IV's design when everything is done.

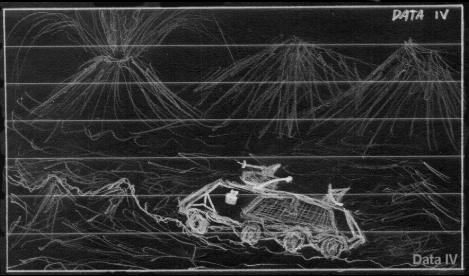

This too...
