The MoDek Plans
Background
Information
The MoDek is my
first CPU Cooling device. As you may have noticed it is liquid based.
Meaning it functions through the circulation of liquid within the system. This
system is meant to be relatively inexpensive. The prices of the components
may vary according to where in the world you chose to build this system. In
addition, nearly all of these parts can be found either new or used.
Therefore I cannot give you a definite construction price for the system.
All I can assure is that if you obtain these parts as used or from junk
yards the total cost of the system will not exceed $20 US.

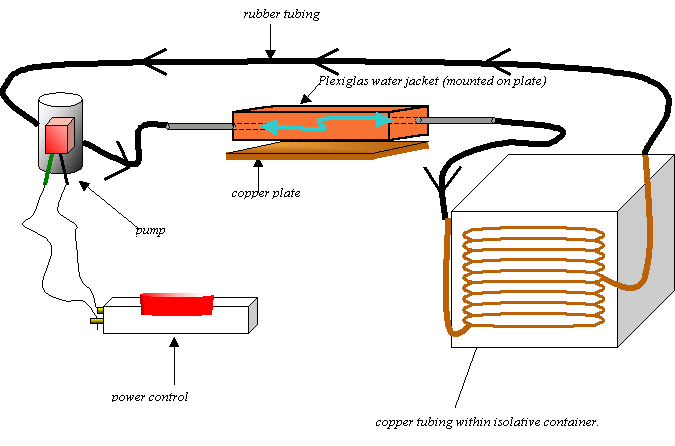

MoDek With Copper Tubing.

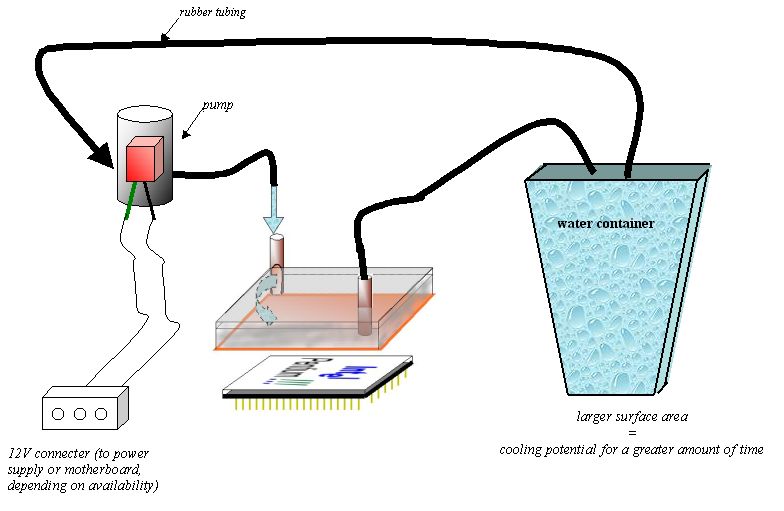

MoDek With Water
Container
Parts Needed
Cooler:
- rubber tubing 2 to 3 mm. in
diameter (length varies with relative position of water supply, etc...); I
used about 1 m. silicon rubber aquarium tubing total for this system,
but other tubing may be used.
- two metallic
tubes 3 mm. in diameter and 2 to 3 cm. in length (those inserted in the
water jacket)
- a 6.2 x 6.2 cm.
x 2 mm. copper plate (less is possible but do not exceed 1 mm.)
- a 6.2 x 6.2 cm. x 5
mm. plastic or plexiglas plate (with a square cut in the middle for
liquid circulation)
- a 6.2 by 6.2 cm
x 2 mm. plastic or plexiglas cover for the thicker plate
Electrical Devices
- 12 V. DC windshield-wiper pump.
- NOTE:
I used a power control in order to observe the results of the pumping rates
for my scientific experiments However, you could also connect the pump directly to
one of your computer power supply jacks pertaining you have a 250 WATT power supply
(minimum).
- A 12 V. DC power supply
- electrical wiring
Construction
Procedure
Step 1: draw out the
dimensions of your cooler in the thick
plastic plate with a marker and drill four holes leaving about a
5 mm. margin around each side.
|
![](homemade_jacket_with_driller.jpg) |

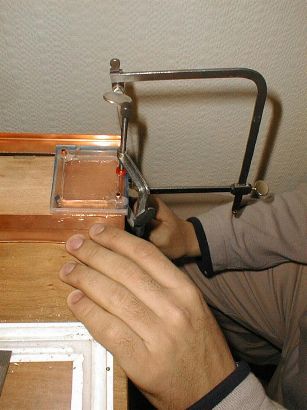

Step 2: unscrew the saw and screw it back in such a
way that it is embodied within the inner square that you have formed
with the four drilled holes. Then simply saw through until you
have removed the inner square (make sure you have drawn out the inner
square perfectly before you begin to cut it out).
|
![](homemade_jacket_being_built_7.jpg)
|
Step 3: Once you have sawed out the inner square
you should have something similar to this. |
![](homemade_jacket_being_built_5.jpg)
|

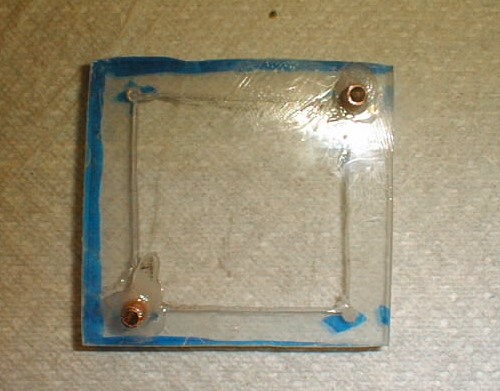

Step 4: Take the piece of thinner plastic and cut it
to the the
same outside dimensions as the thicker piece. Then glue both plastic
pieces together. Once the glue is dry, drill two holes diagonal
from each other that go through both plastic plates (see
picture). The holes can also be drilled on
any two opposite sides of the jacket, depending on your choices. Now,
file a cavity in each copper tube as shown. Once this done, you
may insert the two copper tubes in their emplacements and glue them to
the jacket.
|
![](homemade_jacket_plast_top.jpg)
![](Copper_tube.jpg)

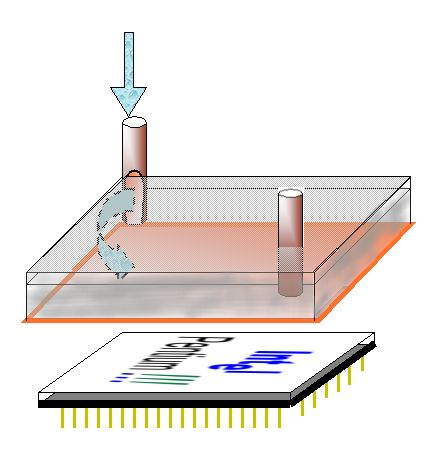

As you can see below, the filed tubes allow for a
maximum dispersion of the liquid onto the copper plate. Causing
more efficient cooling.
![](MoDek_On_P3.jpg)
|
Step 5: Glue what you have to the piece of copper
plate you have in your possession. In this case I had a copper plate
larger than my jacket, so I had to cut around the jacket in order to
make the plate even with the jacket.
|
![](homemade_jacket_being_built.jpg)
|

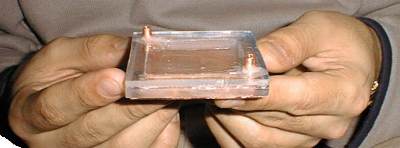

Step 6: Let the system dry well for at least an
hour or two if you have opted for hot glue. If you have used
epoxy, let it rest a day or two before making your MoDek system
operational.
|
![](me_holding_homemade_jacket.JPG)
|
| |
|
