6L6-GC PP

Here are (just) some first pictures of my Junkbox 6L6GC-PP .
I started this project to keep myself a bit buisy while I wait for the rest of the parts for the 6C33-SE amp .
Some time ago my (Dutch) audio friend "JACK" donated a pair of OPT's to me since he couldn't find a use for it himself .
Actualy they are for an EL84-PP amp , but I don't have 4 of those .... So I desided to use my Svetlana 6L6GC's

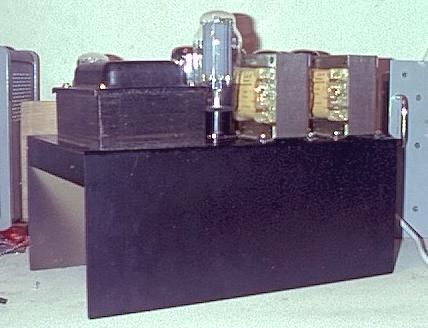

and run them at low current . Just the trannies and the tubes are mounted yet .
I just looked into the junkbox and found some nice parts .
I'm gonna try a "double-Mu-folower-floating-paraphase-splitter" on this amp ....
That's why there are 4 (Russian) 6SL7's on the chassis .
Here is the "SCHEMATIC" I have in mind ..... (not tested yet)

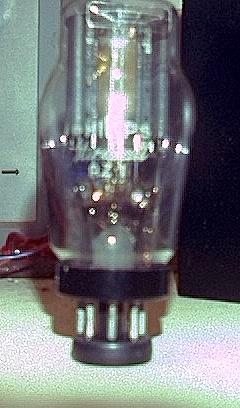

I also put an octal socket on an AZ1 .
It would be easier to compare the AZ1 to the American rectifier tubes this way .
(Still the same bad cam ....)




Since I don't want B+ on my cold tubes I designed a Delay-Relais.
In my case I'll switch the mains to the tranny for heating the rectifier tubes .
I'm not shure how and if it is bat for this tubes .....
