D-MONIC GALLERY
Here's my CAD of the weapon disk for D-Monic 4.

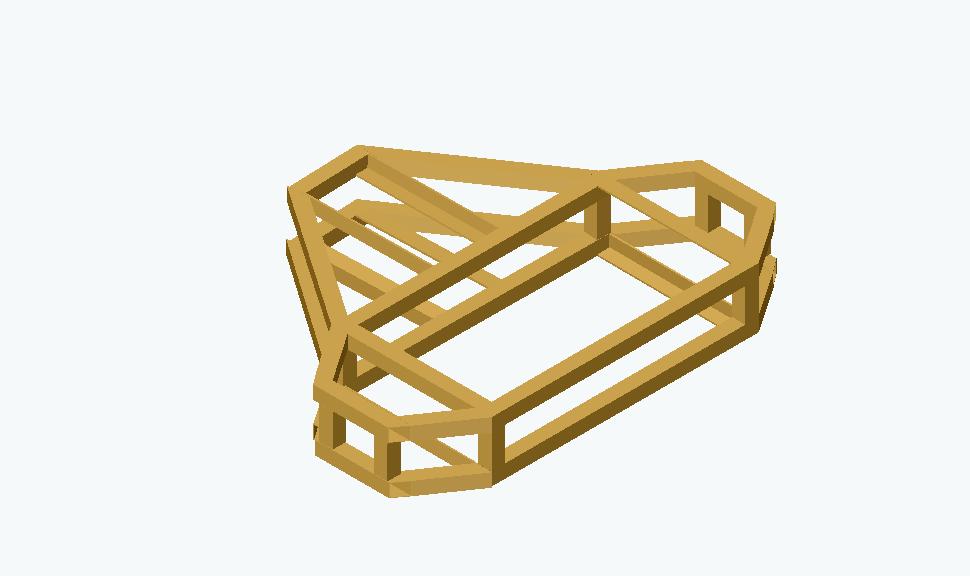

The frame in CAD.

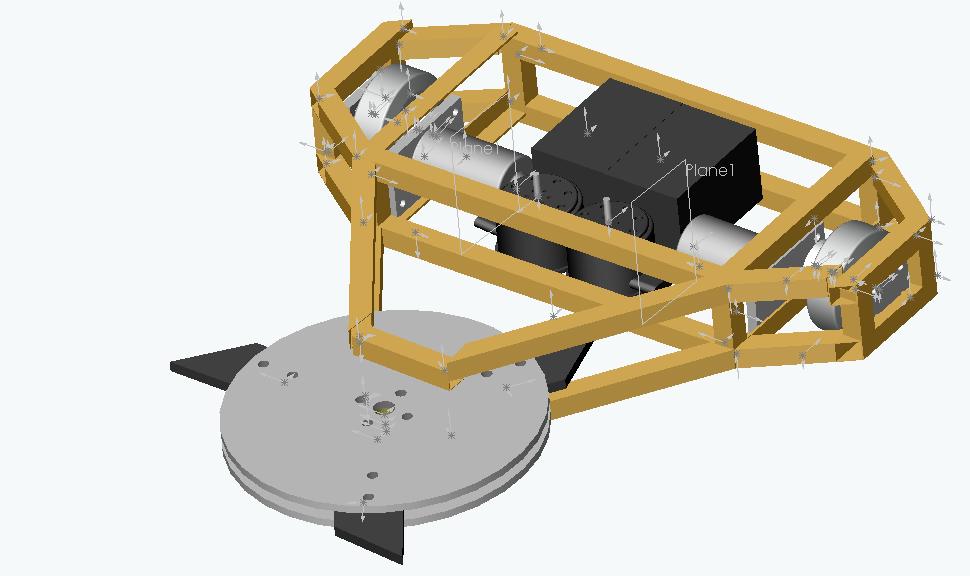

A CAD of the frame, batteries, motors, and weapon.
The CAD without top armor. Grey is aluminum, blue is angle rion, and black is steel tubing.
Finished CAD design. I'm not as good as Casey is and some of the parts are messed up. In this design I'm using CAsey's CAD of the drive motors, White Rodgers Solenoid, and IFI.
The new frame next to the bigger old frame.

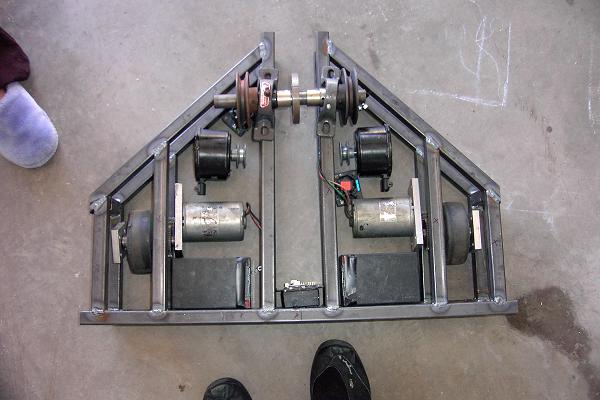

The frame with the parts inside.
The walk of frame.
Me welding.

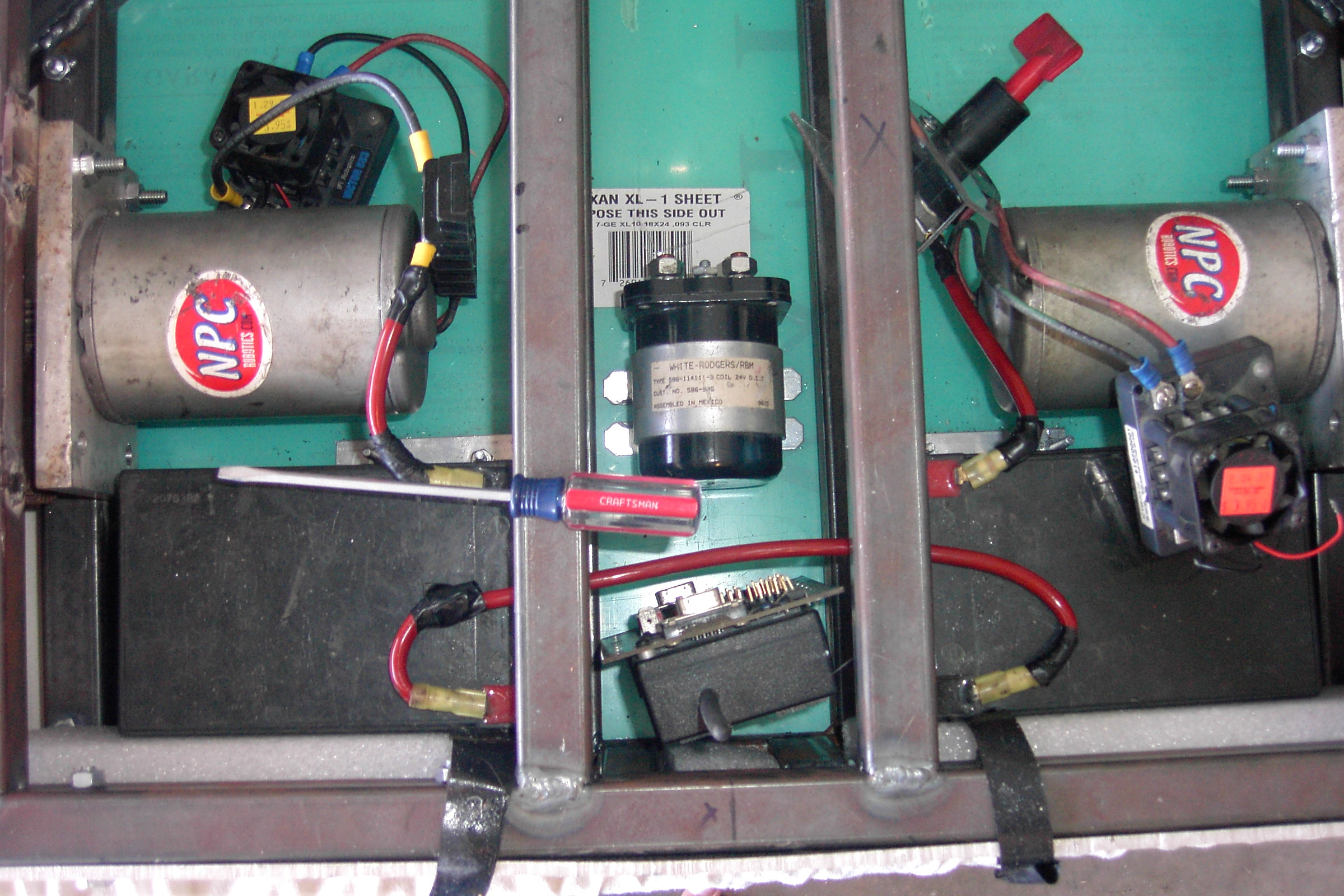

I stink at wiring.
Driving D-Monic IV by teather.
The bot, almost ready to go.
D-Monic at BBIQ III.
