Disassemble Your SKS

First Off make sure your gun is UNLOADED and On SAFE.

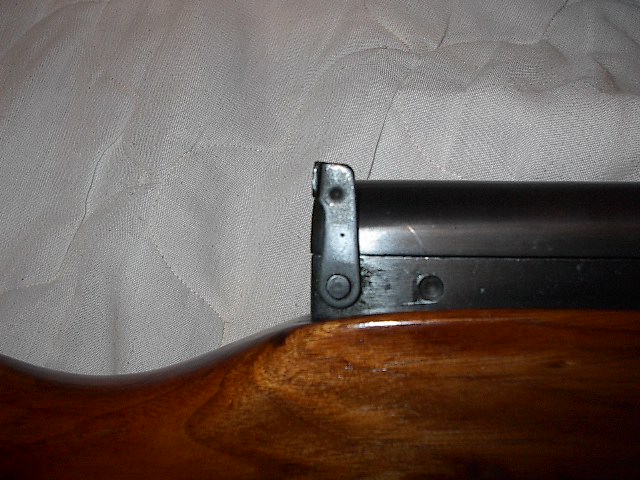

1. First off flip the little pin on the reciever cover up then out. NOTE: this pin does not come completly out! Also make sure your bolt is closed during this process.
2. after pulling the pin all the way over the reciever cover will slide off. Now you can see why the bolt should be closed imagine getting hit in the face with that spring.

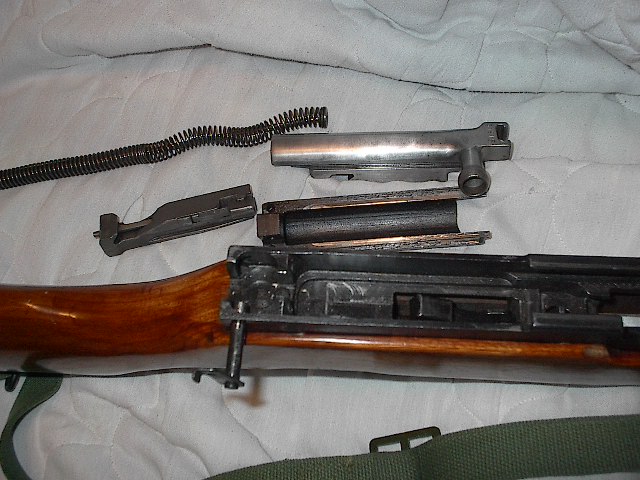

3. Now take the spring, bolt carrier and bolt out it all slides out...

(This way)

<-------------

Note: sometimes you have to press down lightly on the back end of the bolt carrier for it to slide out.

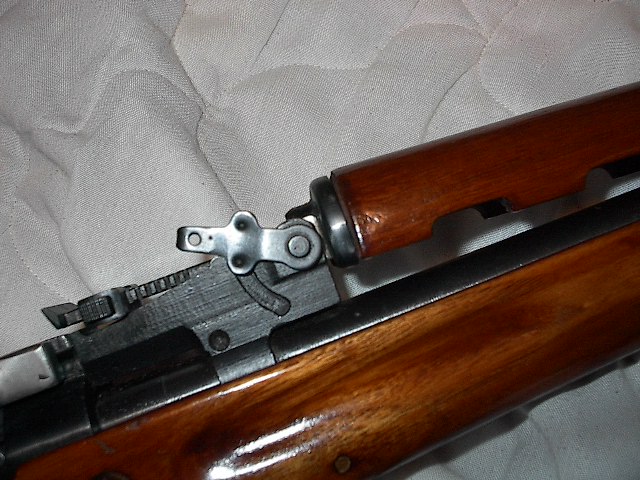

4. Slide the small lever in front of the rear sight forward as shown and pull the gas tube up and off.
5. lift the lever even further until the other piston and spring come out. NOTE: when it comes out it it shoots out like a rocket!

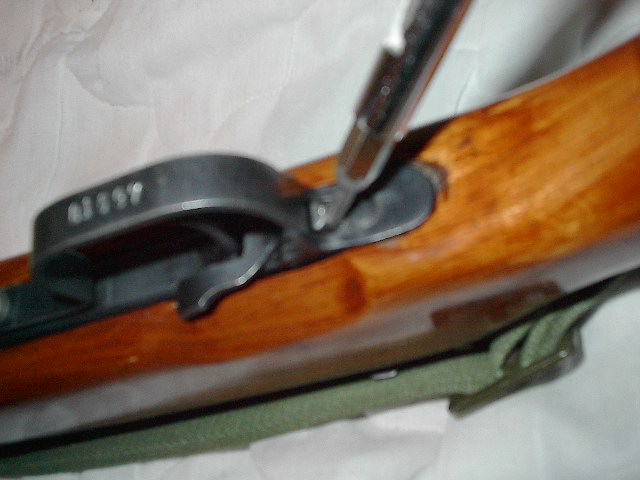

6. make sure the gun is on safe or the trigger assembly will not come out. take a punch and hit it pretty hard and the trigger assembly will pop right out. Now the barrel will come out of the stock.

Thats about it.

Oil everything up real good and to reassemble just repeat the steps backwards. Even though this is not completly detailed but heck the rest is common sense.

I assume no responsibility for any harm done from my instructions
