Chlorine Gas Detector




Chlorine is a pungent smelling, Corrosive, gas. It is very heavy gas and readily available by most materials. Its properties relay mainly on its oxidizing power. The monitoring aspect of chlorine to avoid serious health risks, corrosive to  metals like M.S. Aluminum etc. HUSAINITM offers chlorine gas leak detector with electrochemical sensor which only detects Chlorine in air. No cross sensitivity to any other gases like HCl, SO2, NH3, to avoid false alarm.

Chlorine Gas Leak Detector is available in two models:

Click for Enlargement    LED215

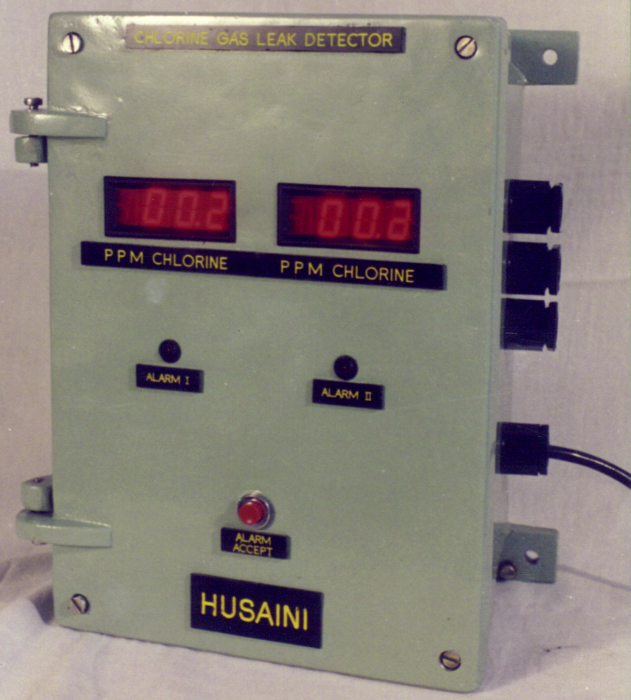

LED9602    Click for Enlargement
Body made with FRP Body made with Aluminum
Single LED Display Double LED Display
Single Sensor Input Double Sensor Input
Two Set points for single sensor Single Set points for individual sensor

Direct Digital read out in PPM.
Fast response time
Continuous monitoring
Long life electrochemical sensor
Recorder output 4 to 20 mA
Easy maintenance and calibration
No cross sensitivity to HCl, SO2, NH3
OEM design
Panel mounted or Portable model

Chlorinating Plants
Nuclear Reactors
PVC Manufacturing Plants
Water Treatment Plants
Swimming Pools
Paper Mills Acid
Alkalis and Dyes Manufacturing Plants.

ACCESSORIES

 Operating, Maintenance and Instruction Manual & Electrolyte bottle.
CONFIRMING IP 55 and IP 67 protection for enclosure
DIMENSION 275 (H) X 235 (W) X 115 (D) in mm.
DISPLAY 3 ½ digit, 12.5 mm digit height, 7 segment L.E.D display.
MOUNTING Wall mounting
OPERATING TEMP. 0° to 50° C
OPTIONAL Industrial Hooter, Chart Recorder, Extra cable for long distance application, Calibration Kit, etc...
OUTPUT 1 NO/ C Potential free contact rated 230 volt/5 A for each Alarm 1 & 2
POWER SUPPLY 230V AC + 10%, 50 Hz.
RANGE 0 -10 PPM / 0-100 PPM
RECORDER OUTPUT 4 to 20 mA DC
RESOLUTION 0.1 PPM
RESPONSE TIME Less then 30 seconds
SENSOR TYPE Electrochemical
[FrontPage Save Results Component]

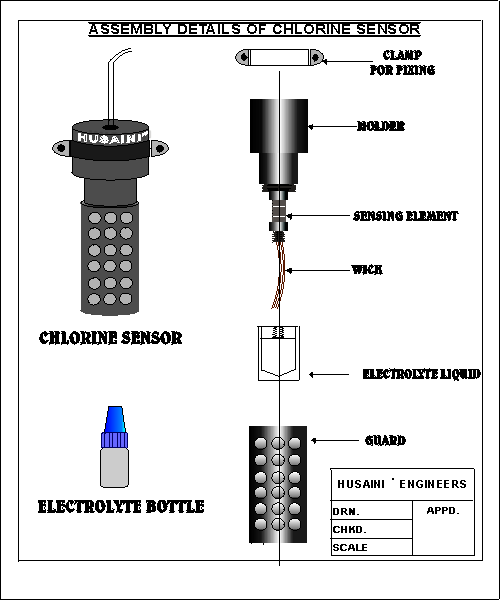

Click for Enlargement Chlorine Sensor is a galvanic cell consisting of metal wire electrodes in electrical contact via an electrolyte. The cathode is internal and is shield from the atmosphere by a wrapping of absorbent material which acts as a porous diagram and electrolyte support. The anode is wound over this support and is the sensing electrode. When this electrode is exposed to chlorine a current proportional to concentration of chlorine is produced which is amplified and signal is used for indication of concentration of chlorine. This is also used to trip alarm circuits at preset points. So does not dry is liberated from it by chlorine. This improves the sensitivity because bromine has a greater solubility in water than chlorine. The bromine is reduced electrochemically at the anode giving rise to a current proportional to the number of atoms reduced.
