Back Bracing

Index

The Unpacked Kit
Ribbon Lining
End-Piece Set
Guitar Top
Top Bracing
Guitar Back
Back Bracing
Attaching the Back
Attaching the Top
Edge Bindings
Fitting the Neck
Truss Rod
Fingerboard
Fretting
Fitting the Nut
Grain Filling
Lacquering
Attaching the Neck
Attaching the Bridge
Saddle and Nut
It's Done!

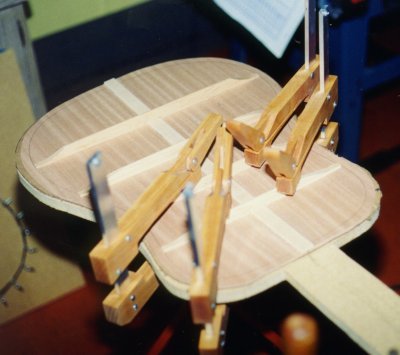

This photo shows the last two back braces being attached. The bracing system on the back of the guitar isn't nearly as extensive or complicated as the bracing of the top. Note that the braces actually have an arch to them, so a ring of cardboard is placed under the lip of the back to allow the back to flex as the braces are clamped on. The top braces were also glued in this fashion.

The completed back is shown below.

Once the back bracing is complete, you start fitting the top and back to the sides in preparation for gluing.
