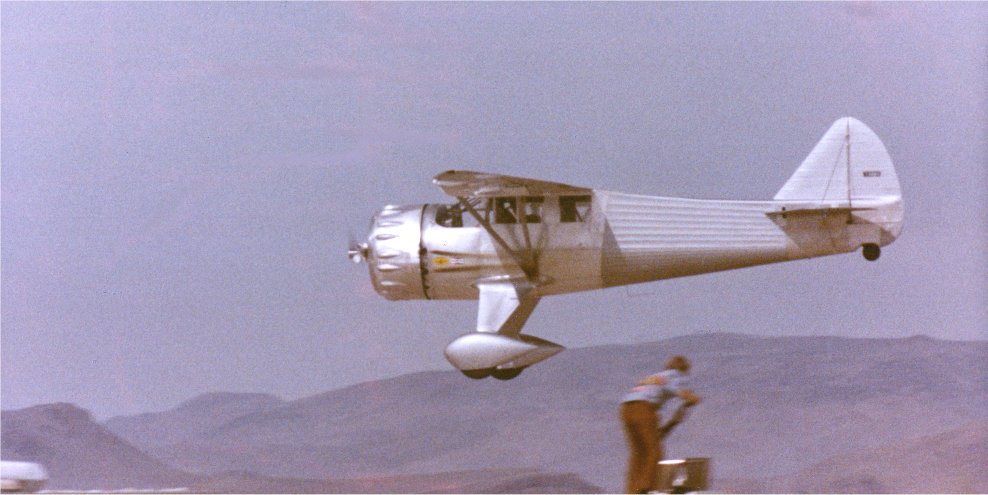

Bob Reichardt's "Mr. Mulligan" at Mudd Lake, NV, October, 1977

Another version of a Senior Kadet,

Once again, the inability to follow the simplest of plans raises its ugly head! Using a Rubbermaid #9 bowl as the cowl, a "Mister" Mulligan emerges from the usual SIG Senior Kadet kit.. only a few modifications.. tail wheel, rounded front end, stringers on the aft fuselage, wing struts, flaps, Frise ailerons.. the usual..

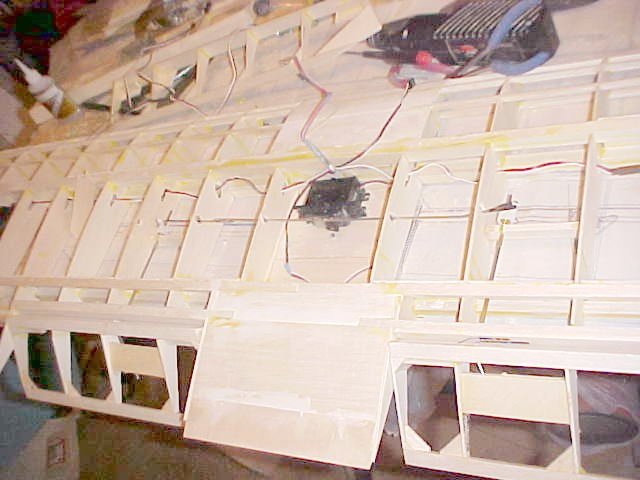

Flaps use a modification of the Michealis Direct Aileron Drive... completely inside the wing.

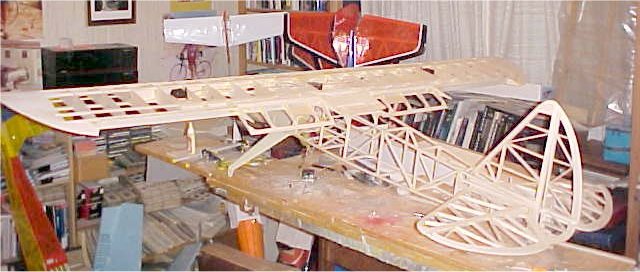

Roughly assembled before adding the fuselage stuff that makes a Mulligan..

Adding a LOT of stringers, and fairing the round firewall into the fuselage..almost a shame to cover it!

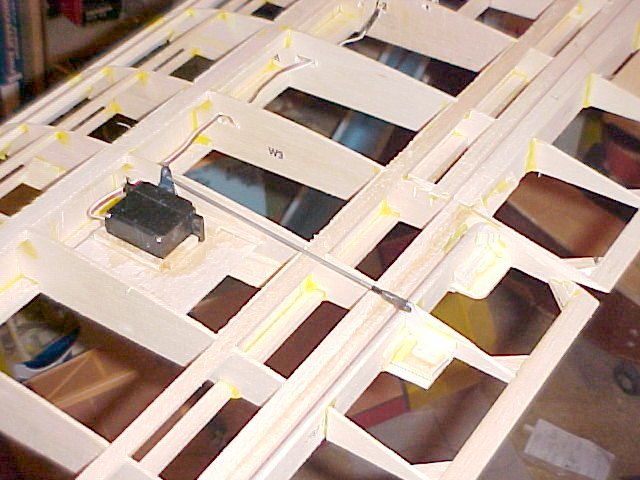

The ailerons.. hinged at the bottom for Frise action..

Pull-pull rudder and steering, aft mounted elevator servo

First outing... 3/4 top view, flaps up..

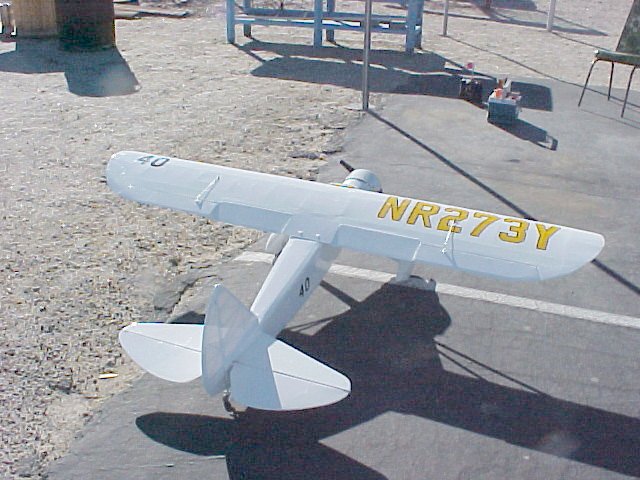

Top view, flaps down..

.

..Second flight...
