Check it out athttp://www.ex.ac.uk/~pbhook/harley.htm
Owned by Patrick Hook
Fabrication by-owner/Welbro engineering
Engine-1340 EVO HD destroked to 1232 cc with 4valve heads
Cases-Delkron modified
Rods-S&S super duty,bored out to take cosworth pins
Pistons-Cosworth 90mm Formula one race car,heavily modified
Cylinders-Stock,shortened,bored out,BERYLLIUM RINGS,no head gaskets
Cam-Fueling 4 valve

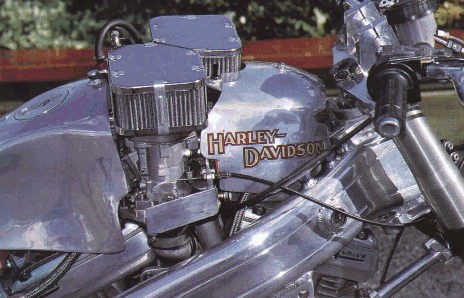

Carbs-2 weberIDF 40 mm twin throat racing . intakes by owner/Alan Welsh
Heads-Fueling 4 valve,modified
Ignition-Interspan Racing system,no external power supply needed
Exhaust-Titanium,Computer calculated length,matched front and rear
Transmission-Quaife 4 speed racing wide ratio
Clutch/primary-Bob Newby racing belt alloy clutch and front pully
Frame-Owner and Welbro engineering 7020 aluminum twin beam
Swingarm-Suzuki 1100,heavily modified
Forks Upside down Kayaba Grand Prix
Rear shock-Kayaba Grand Prix with titanium spring
Fasteners-Titanium,drilled and safety wired
Weight 310 lbs
Wheels-Marchesini magnesium grand prix
Brakes -AP Racing Grand Prix calipers/carbon fiber/steel rotors
Tires-Michelin Grand Prix wets 130/17 front 180/17 rear
