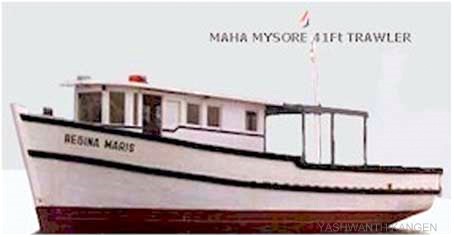

41' TRAWLER
The Mahasagar 41 Stern Trawler of 15-day
voyage endurance is the outcome of innovative engineering combined with decades
of experience with boats. Provided with a fuel capacity of 5 KL, freshwater
capacity of 3 KL, fishhold volume of 10 Cu.Mt and powered by a marine diesel of
only 100 bhp, this boat efficiently and at lower cost performs tasks usually
performed by much larger boats. Built to a high standard of construction, this
strong, low-maintenance fibreglass-lined hull has excellent sea-keeping
qualities under all working conditions.
| Length OA |
41-00" / 12.50 mt |
| Beam |
13-8" / 4.20 mt |
| Draft |
6-6" / 2.0 mt |
| Propulsion |
100-120 bhp (or owner's
decision) Marine Diesel |
| Construction |
Carvel-planked wooden hull of
mainly wild-jack wood (artocarpus hirsuta) with copper, brass and stainless
steel fastenings throughout. |
| Speed Free Running |
7-9 knots |
| Fuel Oil Tanks |
Upto 5 KL, FRP |
| Fresh Water Tanks |
Upto 3 KL, FRP |
| Fish Hold |
10 Cu.M Volume, Rigid Foam
Insulated and FRP lined |
| Catch Preservation |
Ice / Refrigeration |
| Endurance |
15 days |
| Crew Complement |
6 |
| Hull Bottom Protection |
FRP lining / Copper or Aluminium
Sheathing |
| Winch |
Palghar Twin Drum, Mechanical
Drive |
|
