Honda has added a high-performance model to its Integra range. Appropriately designated "R," the car's B18c, dual overhead camshaft, 16-valve, VTEC, 1797-cc engine has been tweaked to produce 149 kW (JIS net) at 8000 rpm and 181 N·m torque at 7500 rpm on an 11.1:1 compression ratio, using premium grade, unleaded gasoline. Specific output is 83 kW/L, a remarkably high value for a naturally aspirated engine. At the engine's maximum allowable rpm, piston speed reaches 24.4 m/s.
The R engine's internal modifications include lightweight, low-friction pistons; lightweight, high-rigidity connecting rods; fully balanced forged steel crankshaft; thinner-stem valves; dual valve springs; and high-temperature-resistant, platinum-tipped spark plugs. Intake air is now taken from the fender well, instead of the normal VTEC's engine compartment. The intake manifold's opening has been enlarged from 65 to 70 mm, the throttle body enlarged by 2 mm to 62. The 4-2-1 collector exhaust has smoother flow characteristics.
The Integra R is available with a close-ratio manual five-speed transmission only. A helical-gear type limited slip differential is standard. The body has been stiffened by the addition of four tubular crossmembers, and the suspension firmed up with stiffer springs, shock absorbers, and harder bushings. Lightweight aluminum wheels are shod with 195/55R15 84V tires. Some 65 kg of mass has been shed from the normal DOHC VTEC in the R conversion, to which 25 kg has been added for stiffening and aerodynamic improvements, attaining a net reduction of 40 kg.
Jack Yamaguchi
reprinted from Automotive Engineering, December 1995

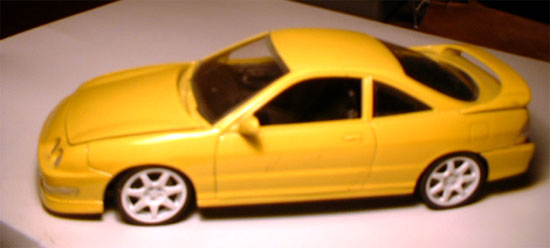

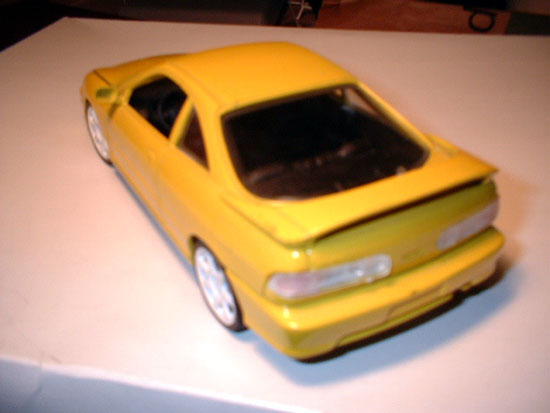

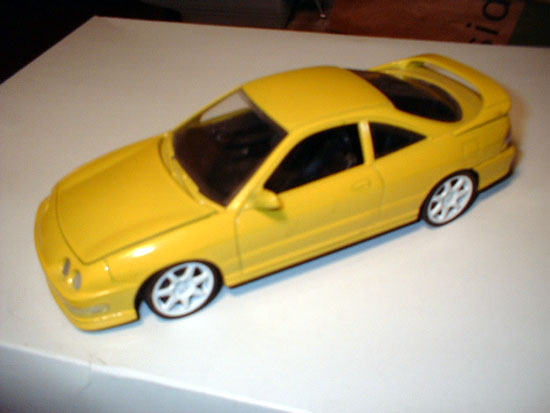

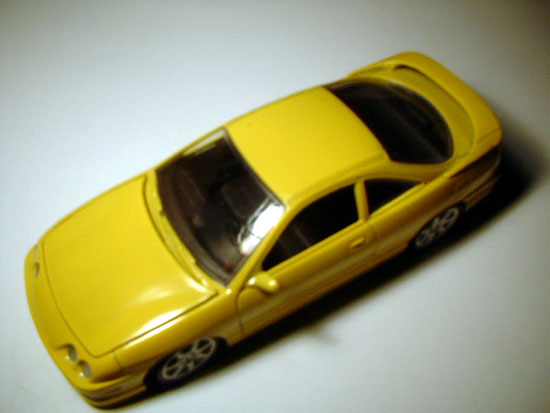

The "banana rocket" shown here is an accurate representation of the 1995 Integra 'R'. Taken from a "Hot Hatch" kit, and done 'factory' with the exception of the rims, which I painted white to mimic the Volk Racing/Rays Engineering 'TE-37' rims, which are quite popular to Integra owners.
|
|
|
|
