AIR CLEANERS
A properly serviced air cleaner protects the internal parts of the engine from dust particles in the air. If the air cleaner instructions are not carefully followed, the dirt and dust which should be collected in the cleaner, will be drawn into the engine and become a part of the oil film, which is very detrimental to engine life; dirt in the oil forms an abrasive mixture which wears the moving parts, instead of protecting them. No engine can stand up under the grinding action which takes place when this occurs. The air cleaner on every engine brought in for a check up or repair should be examined and serviced. If the cleaner shows signs of neglect, show it to the customer before cleaning, and instruct him on proper care to assure long engine life.
NOTE: Replace air cleaner gaskets and mounting gaskets that are worn or damaged, to prevent dirt and dust entering engine through improper sealing. Straighten or replace bent mounting studs.
Service Oil Foam Air Cleaner

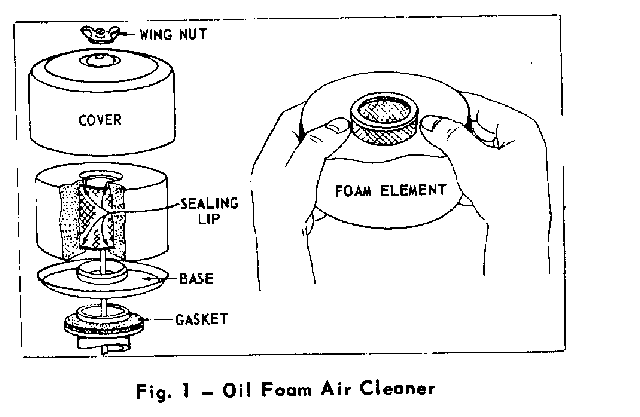

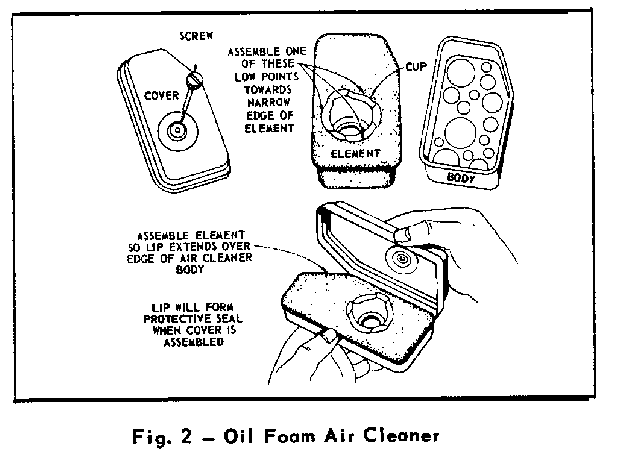

Clean and re-oil air cleaner element every 25 hours under normal conditions. The capacity of the "Oil-Foam" air cleaner is adequate for a full season's use without cleaning in average homeowner lawn mower service. (Clean every few hours under extremely dusty conditions). See Figures 1 and 2.
1 .Remove screw. -
2. Remove air cleaner carefully to prevent dirt from entering carburetor.
3. Take air cleaner apart.4.Cleaning
A. Wash foam in kerosene or liquid detergent and water to remove dirt.
B. Wrap foam in cloth and squeeze dry.
C. Saturate foam in engine oil.
D. Squeeze to remove excess oil.
5. Assemble parts - fasten to carburetor with screw.
