The great advantages of the DNR Minerals Workshops is the access and expertise in the field trips. For the section where these photos were taken we had a mining engineer from Hibbing Taconite - he is responsible for determining where to mine next and how much ore will be mined - and a former mine worker who was very familiar with the terrain, the mines and the process.
shovel
haul truck
In the photo above an electric shovel loads magnetite ore. The post and dark lines are electric wires that carry the electric current that powers the shovel.

In the photos below the shovel is loading the truck. Notice the "cat" in the left photo.  This is a full size caterpillar that cleans up after the shovel so that there are no sharp rocks that could puncture the tires on the truck.

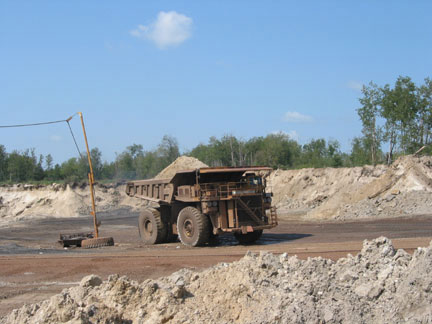

The above photo is a haul truck. A truck can carry about 240 ton of material in one load. It is powered by diesel motors that generate electricity to run the electric motors at each of the rear wheels. Direct drive motors to a transmission is not possible because the mechanical transmissions could not withstand the forces required to turn the wheels.

To give a sense of size, the windows on the shovel are about 5 feet tall.
loading 1
loading 2
drill
hole pattern
Above is a photo of a drill with a full sized van on the right. The drill makes holes in the hard rock which is then blasted so the shovel can pick it up to load it  in the haul trucks.

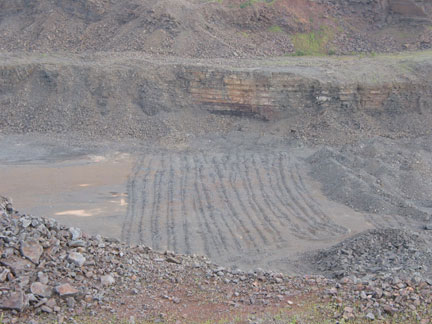

In this photo each "little" mound is surrounding a 16 inch diameter hole. Ammonium nitrate (a common fertilizer) and fuel oil will be packed in the holes and then detonated to blast apart the rock.
blast 1

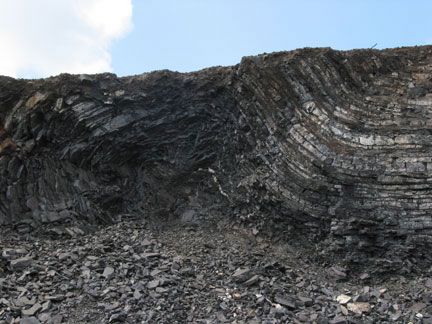

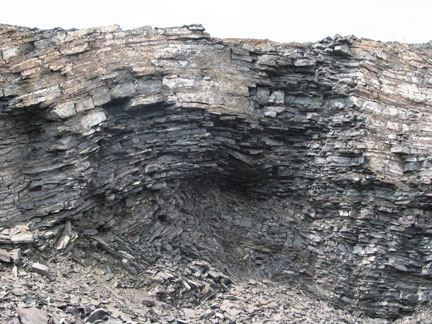

This is what the rock looks like after blasting. The force of the explosion twists, cracks and lifts the hard slate and chert rock so that the electric shovels can scoop it up.
blast 2

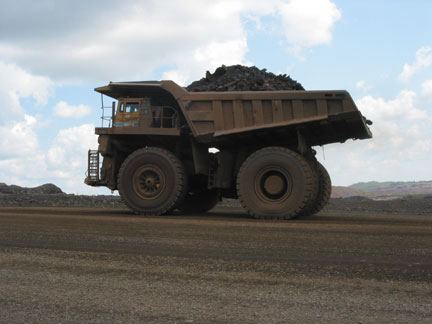

The full haul trucks travel at speeds up to about 30 miles per hour. Two wheels on each side of the back axle are driven by electric motors.  The electric current for the motors is produced by diesel engines. The tires on the truck are about 10 feet in diameter. The trucks each have a GPS (Global Positioning Satellite) receiver that sends information back to the control center. The person at the control center directs the driver for the most efficient use of the trucks. The GPS information also helps to determine fuel and maintenance schedules.
haul truck


mine overlook
The photo at left is of the mine overlook where the photos on the previous page were taken.  The red arrow points to the building that is the overlook (almost invisible in the photo) and the blue arrows point to a "road" that mine trucks used to take when hauling ore out of the pit. The roads are no longer in use, they have roadblocks at the top. The company that used them is out of business and most of the equipment is either sold or moved. The only thing that remains is an old "tin" shed causing a speck of sun glare to the left of the roads.
