Quadrature Oscillators Using LM747C Chip

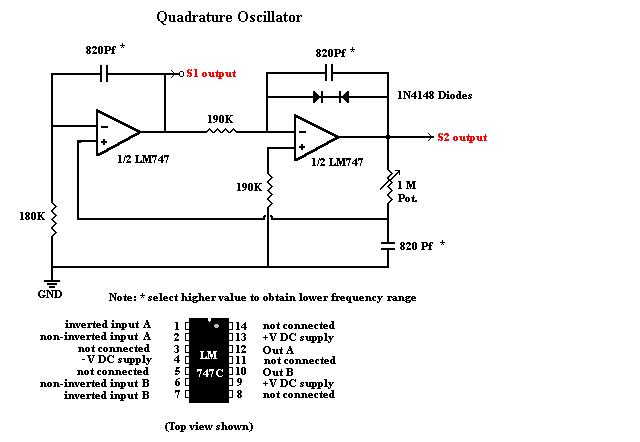

This very simple circuit features a Quadrature oscillator : the S2 output is 90 degrees

out of  phase vs. the S1 output. This circuit can be used as a quadrature LFO to PAN/

Fade between two VCA's.
