This page is under Construction. Welcome to My new Site. This site Contains pictures of tour of the WOR transmitter site. during a SBE special Meeting to see IBOC in action. there are lots of photos so if you have a slow Connection it will take awhile to load .
Entrance to WOR transmitter sight...
WOR Audio Processing rack
Tom Ray explaining the IBOC exciter at the Bottom of the rack

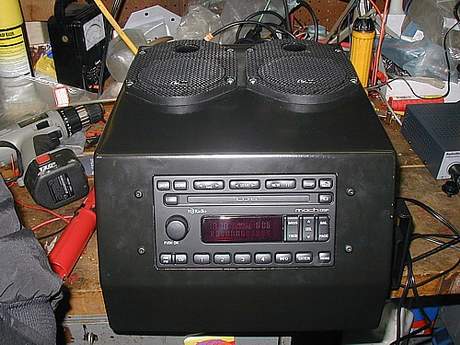

The Vistion IBOC test receiver.. Its just a Tad larger than a walkman.....
A Close-up of the IBOC test receiver
Tom Ray and Kerry Richards explaining how the IBOC System works

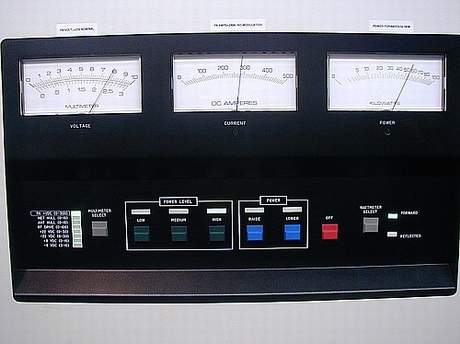

The Harris DX-50 metering Panel
The Harris DX-50 Status Panel
Close-up of the WOR DX-50 Wattmeter Yep Looks like 50 Kw to me.. Dont forget to account for the power loss in the Phasor unit and transmission lines to the Towers
The Contential 317C Powered up and On the air.. gotta Love the way them Tubes Glow If things go Right This may be My next Transmitter In My collection. so It does not end up like the one at WBBR
The Contential 317C Control panel
The Contential 317C thats trashed at WBBR...

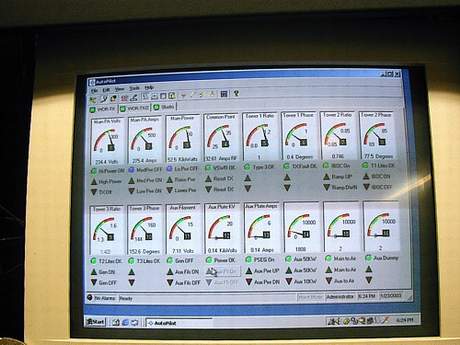

Gotta Love this... the Burk Autopilot II Software running at WOR... I also run this Software. Great stuff.
