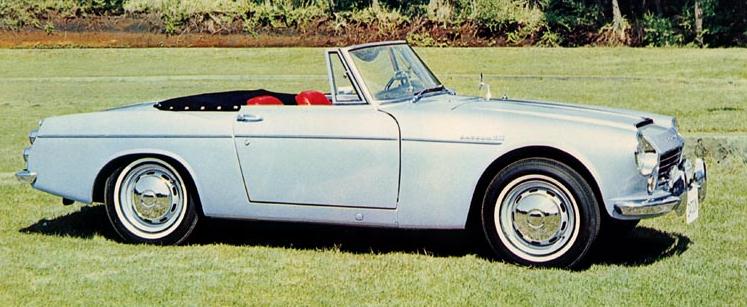

Datsun Fairlady 1600 SP311
.

.
MODEL                              Datsun 1600 Sports  (Fairlady 1600)
MODEL CODE                  SP311
YEAR                                  1965-1966
BODY TYPE                       2 Door 2 Seater Convertible
ENGINE                              R
ENGINE TYPE                   1595cc 4cyl. OHV 96hp
CARBURETTOR               2x 38mm side draught 'SU' style Hitachi HJB-38W-3
GEARBOX                          4 speed manual - floor. Full synchro.
FINAL DRIVE                    3.889 (optional 4.111)
WHEELS                             14 inch

PARTS MANUAL              C-019 plus C-034 supplement for early SP311s
                                             C-034E for most SP311s
WORKSHOP MANUAL    45121 (008318) for 3 bearing crankshaft engines
                                             (11230160) for both 3 and 5 bearing crankshaft engines
COUNTRY OF ORIGIN    Japan - Fully Imported

IDENTIFICATION            Twin carbs. Alternator. Side strips start just behind the front wheel arches, grille has 3 wide horizontal bars, chrome strip handle on boot lid, key hole is just above the number plate. Soft top folds down behind the seats. Dash has 2 large round guages and 5 smaller guages. Bonnet badge is undividual letters that spell  'D-A-T-S-U-N', side badge says 'Fairlady' on very early cars, most cars have 'Datsun 1600' badges, rear badge says 'Datsun 1600'. Seperate chassis, cam and lever steering box, double wishbone front suspension, front sway bar, leaf spring rear suspension, telescopic shock absorbers, disc brakes on front wheels, drum brakes at rear.
.
