Barco Data 800 3 Lens Home Theater Projector For Sale

Site hosted by Angelfire.com: Build your free website today!

(click on image above to see full size picture)

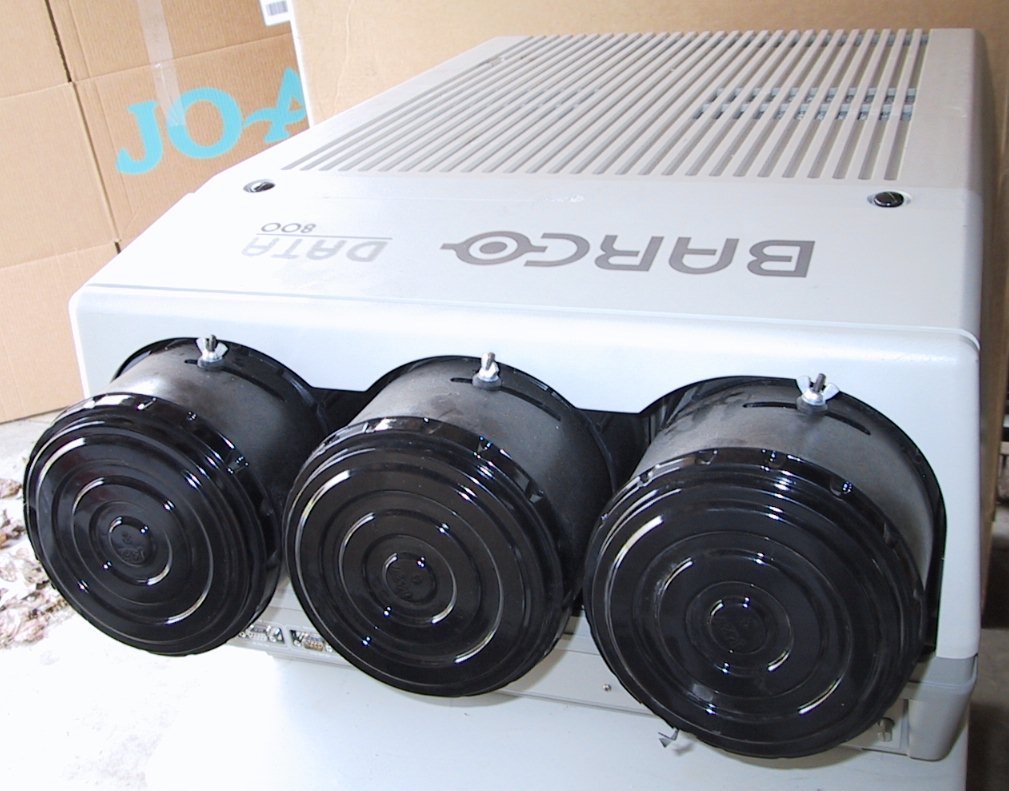

Barco Data 800 3 Lens Home Theater Projector

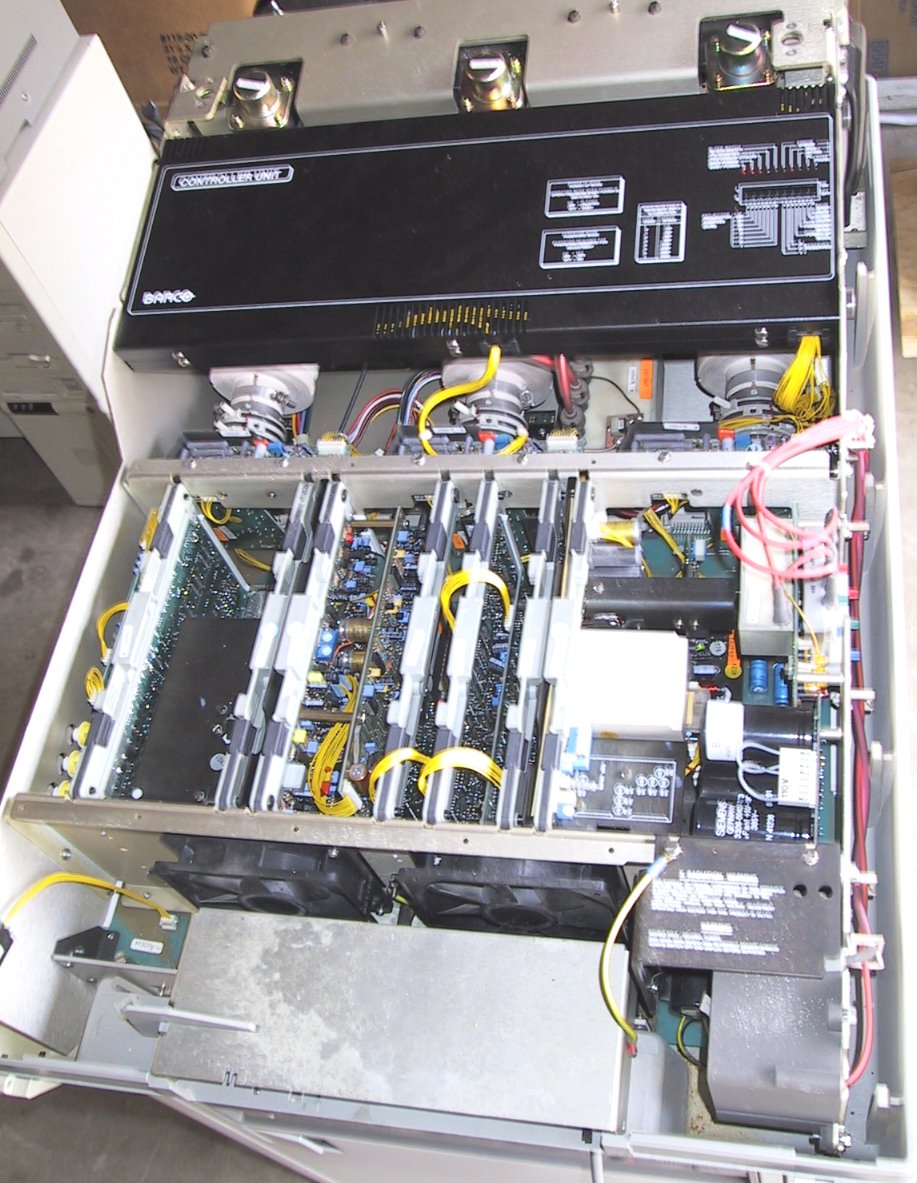

I purchased this unit with other A/V equipment and have no room for it, so it has to go! The BARCO DATA 800 Digital HDTV Video Projector features a scan rate of up to 55Khz for use with a line doubler, HDTV or computer. This unit originally cost almost $20,000. This unit is in fair cosmetic condition, but may have a problem. When it is powered up, I can’t get it to project. I have tried everything including trying the remote with no success. The fans work, LEDs light and processor LEDs show that the unit is doing something, but no projection. There is a spot above where the power cord plugs in that looks like something is missing, but when I open the unit, I see no place where an additional component would connect (no empty plugs). If anyone knows how to get this unit to project or has suggestions for further testing, please e-mail me. Due to the problems listed, this unit is being sold as a parts unit and is being sold "as-is" with no warranty of any kind.

Features of a working unit:

Projector has 8" Liquid cooled SONY CRT's for super high brightness.
Composite Video, S-Video, and RGB Sync inputs.
825 lumens of brightness.
All convergence and adjustments are digital, done via built in digital keypad or included IR remote.
Two switchable setup memories per input (for 4:3 and 16:9), 38 total.
Scheimpflug lens adjustment for perfect edge to edge focus adjustment.
Rear projection capabilities.
Size: 23"W x 40"D x 14"H
Projector Weight: 135 Lbs.
Specifications of a working unit:

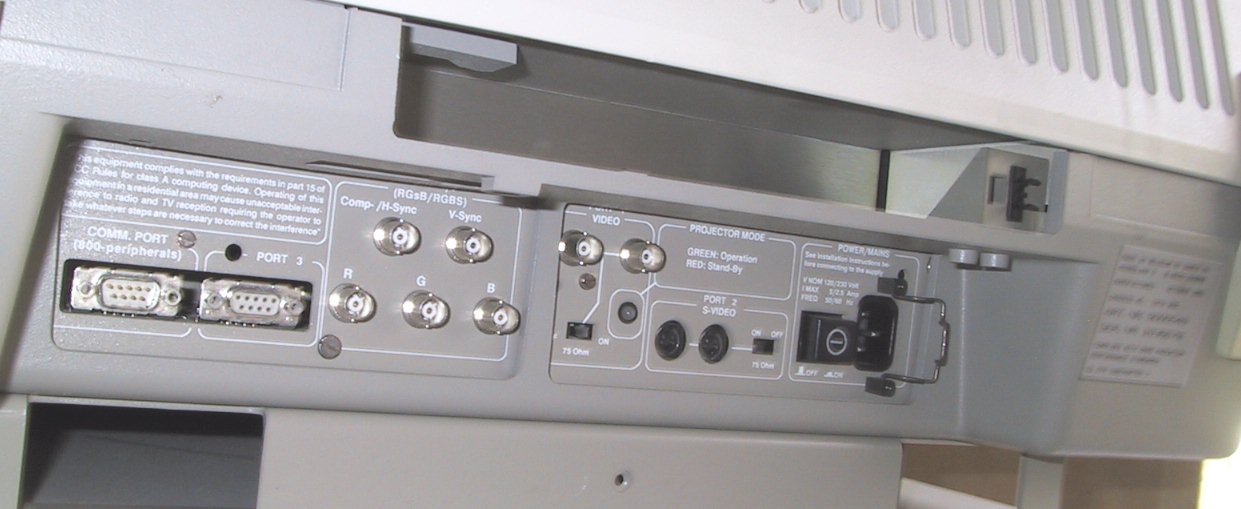

RGB TTL circuit Input: D9 connector, CGA,EGA, and SVGA compatible.
RGB(S) analog circuit RGsB: for sync on Green or RGBS: for separate sync, Hor and Vert sync or composite sync. Input: 5 BNC connectors Red: 0.7 Vpp ~ 3 dB Blue: 0.7 Vpp ~ 3 dB Green: 0.7 Vpp ~ 3 dB 1 Vpp ~ 3 dB if sync on green Vert sync: 1 Vpp ~ 3 dB or 4 Vpp ~ 3 dB Hor sync / comp. sync: 1 Vpp + 3 dB or 4 Vpp + 3 dB
Deflection Circuits - Vertical deflection Frequency: from 45 Hz to 80 Hz Retrace time: < 200 us Horizontal deflection Frequency: from 15 kHz to 55 kHz Retrace time: < 2.5 us
High Voltage Stabilized EHT: 34.7 kV
Power Requirements - 220 V ac to 240 V ac or 110 V ac internal switchable - frequency independence between 40-100 Hz - power consumption: 350 W
Display Projection Tubes: - 8" high resolution square projection tubes - liquid cooled system - Red, Blue and Green CRT'S Lenses: high resolution F1.06 Hybrid lenses Image format: 3 x 4 Image dimensions (standard version) min: 120x80 cm (4x3 ft) max: 600x450 cm (20x15 ft) Throw distance: 142
Includes an infrared remote.

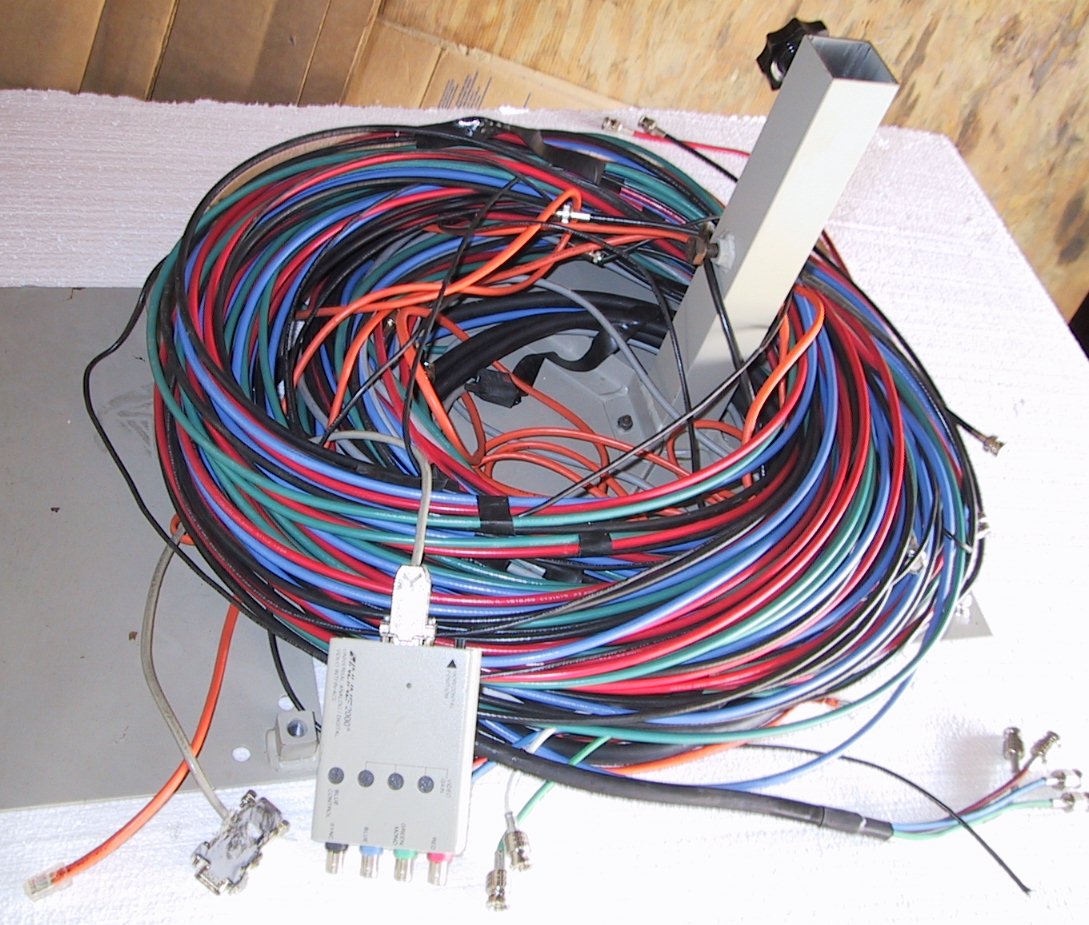

Includes a bundle of cables as well as a rgb converter.

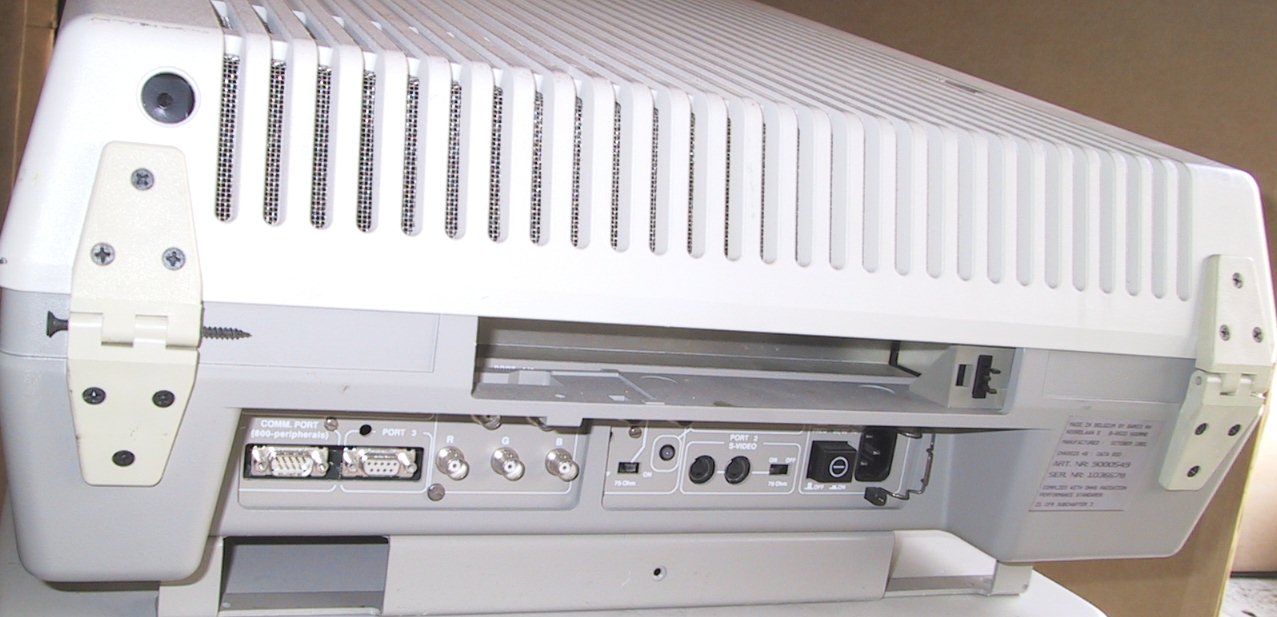

Includes a couple brackets which I believe are for mounting to the ceiling.
This unit was tested and was found to be inoperable. It may have some tape/sticker residue and may have dust from storage. Some of the specs and features may have been taken from eBay ads. Only what's pictured and described in this ad is included in this sale. I don't know much about these, but if you have a question, e-mail me.
