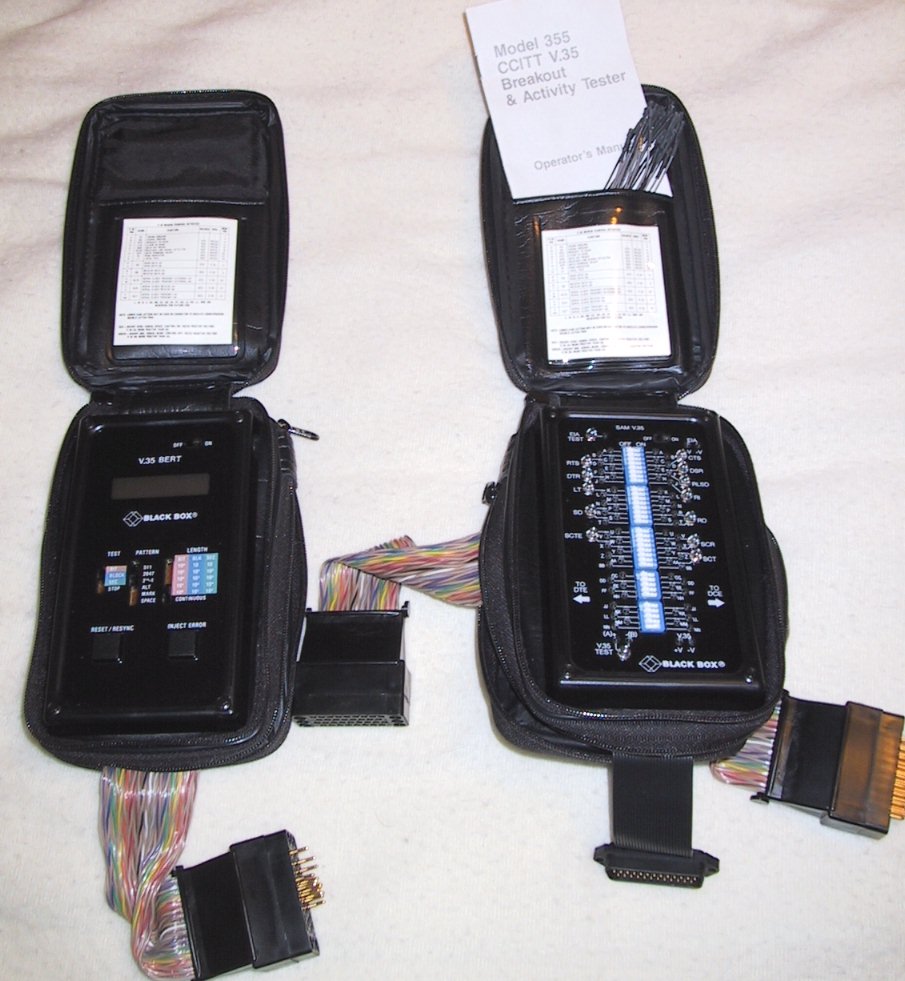

Black Box V.35 BERT & CCITT Breakout & Activity Tester

From what I understand, these testers are used for monitoring and diagnosing data signals. The SAM V.35 is a portable unit that allows access to all 34 CCITT V.35 signal lines. Its’ interface is transparent to data and does not alter information passing through it. I can’t find information on the BERT so not sure of ecact application of that unit.

The components offered are in good condition and appeared to be complete and functional when power tested. I have no knowledge of the operation of this unit so can’t test further. These units sell for over $1000 so don’t miss this deal! As with all items I sell, these units are being sold "as-is".

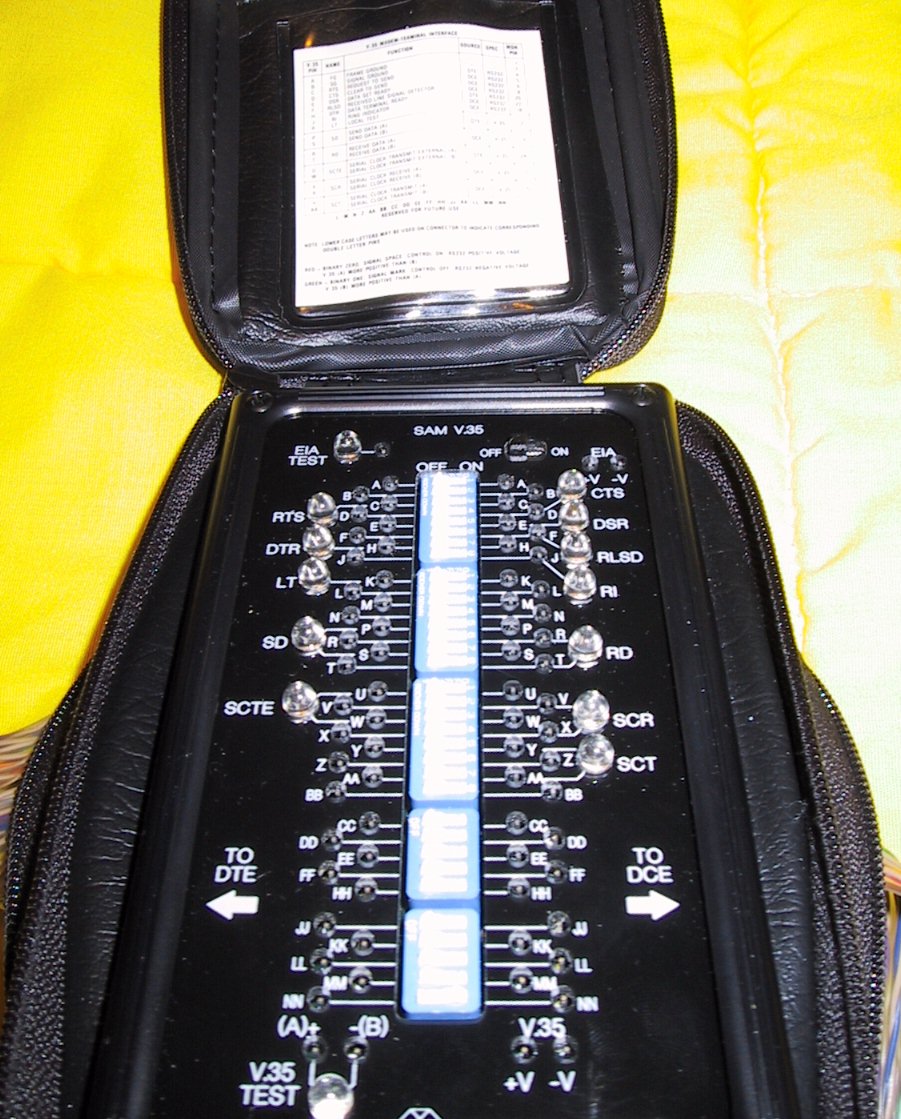

SAM V.35 CCITT Input/Output Tester Model TS291A , sn. 9810315

The SAM V.35 is used to analyze V.35 communication problems Full-featured breakout box for interface testing.
Crossover, patch, or jumper any combination of leads.
Cabling for connection to Data Terminal Equipment (DTE) and Data Communications Equipment (DCE).
Built-in RS-232 cable for monitoring V.35 data on an RS-232 datascope (not included).
Includes a hard case and color-coded jumpers.
Includes instruction booklet. SPECIFICATIONS
Leads Monitored — C, D, E, F, H, J, K, P/S, R/T, U/W, V/X, Y/AA
Connectors — (1) M, (1) F, (1) 24-pin M-block
Indicators — Tri-State LEDs; Red for high, Green for low, Off for unattended
Patch Source Voltage — +V, -V
Jumpers — (5) Straight, (1) Daisychain
Power — (2) 9-volt batteries
Size — 2“H x 4.5“W x 6.5“D (5.1 x 11.4 x 16.5 cm)
See pictures above for functions of this unit.
There is a similar one on this page and here too.
V.35 BERT Model DT004A , sn. 9607209
See pictures above for functions of this unit.
Includes an AC adapter.
No instructions included for this one.
There is a similar one on this page.

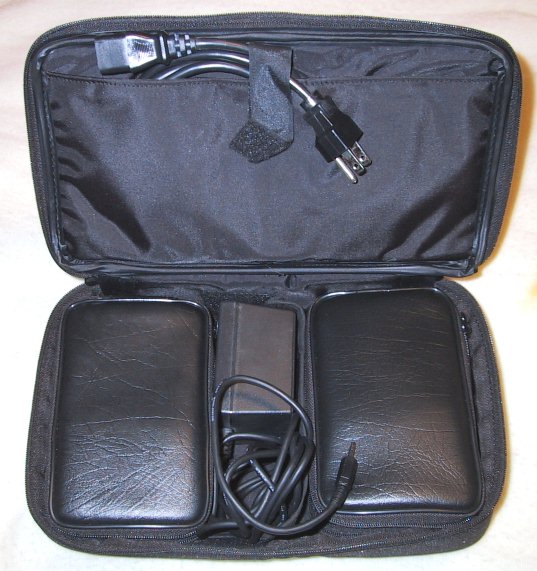

Both units and adapter fit in durable padded carry case.
See pictures above for exactly what is included and condition of components.
This unit is in good physical condition, but may have some tape/sticker residue, ID markings, and may have dust from storage. Some of the specs and features may have been taken from internet sources whose accuracy may be questionable. I don't know much about these, but if you have a question, e-mail me.

$495
