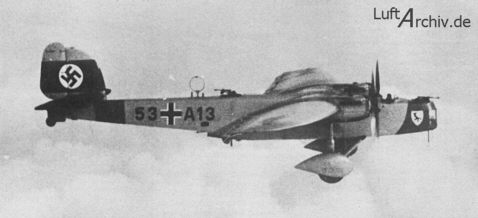

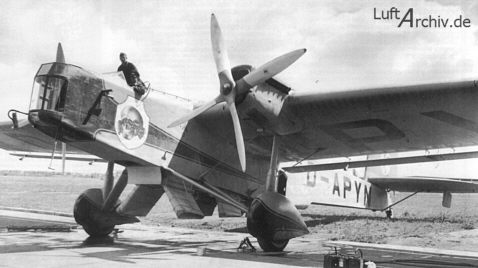

Dornier DO 23
Type: Heavy Bomber
Origin: Dornier-Werke GmbH
Models: Do 13, Do 23F and Do 23G
First Flight
- Do 13: February 13, 1933
- Do 13e: September 1, 1934
Service Delivery: Do 23F May 1935
Final Delivery: 1936
Total Production: 210
Powerplant:
Typical:
- Model: BMW VId
- Type: 12-Cylinder water-cooled vee
- Numer: One Horsepower: 750 hp
Model: BMW VId
Type: 12-Cylinder water-cooled vee
Numer: One Horsepower: 750 hp
Do 23G:
Model: BMW VIU
Type: 12-Cyl. liquid-cooled (ethylene glycol) vee
Number: One (1) Horsepower: 750 hp
Dimensions:
Wing span: 83 ft. 3 in. (25.50m)
Length: 61 ft. 8¼ in. (18.80m)
Height: 17 ft. 8½ in. (5.40m)
Wing Surface Area: N/A
Weights: Do 23G
Empty: 12,346 lbs. (5600 kg.)
Maximum: 20,282 lbs. (9200 kg.)
Performance:
Maximum Speed: 161 mph (259 kph)
Service Ceiling: N/A
Maximum Range at 116 mph (187 kph):
840 miles (1352 km)
Armament:
Three manually aimed 7.92mm MG 15 in nose, dorsal and ventral positions.
Payload:
2,205 lb (1000 kg.) of bombs internally.
For our German Speaking friends
Typenblatt
Baureihen: -
z.B.Typ: Verwendungszweck:
Do 23 Bomber
Werte am Beispiel von: Do 23
Länge: 18,80 m
Breite: 25,60 m
Höhe: 5,40 m
Besatzung: 4
Motor: BMW VI V
Leistung: 2 x 750 PS
Vmax: 260 km/h
Reichweite: 1500 km
Gipfelhöhe: 4200 m
Bewaffnung: 3 x MG 15
bis zu 1000kg Bombenlast
