Dwarf Car & Modified Lite Race Car Parts
GSXR 1000 750 600 motors service and parts.
GSXR Wire harness service, Toyota 8 and 10 bolt axles. Car Parts
FRONT END PARTS
Click any photo to enlarge
Right front Spindle. These spindles fit Pro, Eliminator, Lightning and Leader chassis cars. Im sure they will fit other cars but I cant say for sure what ones that might be. (Pro style)............................$155
Left front Spindle. Spindle fits all the cars listed above on the right spindle description..Measurements on these spindles are 9 3/4 tall..The bolt for ends are 5/8 fine thread. The axle end thread is 3/4 inch fine thread. The distance from bottom center bolt to center of steering arm hole is 4 1/2 inches......(Pro style)............................$155
Front Spindle Set. Description for set of 2 as above in both the left and right spindles. If you need more info please email or phone us. (Pro style)............................$295
Front Spindle Upper or Lower allen head bolts. Each spindle requires 2 socket head bolts. Bolts are 5/8 fine thread........$4 ea.
Front Spindle Castle Nut. One nut required for each spindle. Nut is 3/4 fine thread and zinc plated..............................$3
Front Aluminum Hub bearing larger I.S with race................$12.50

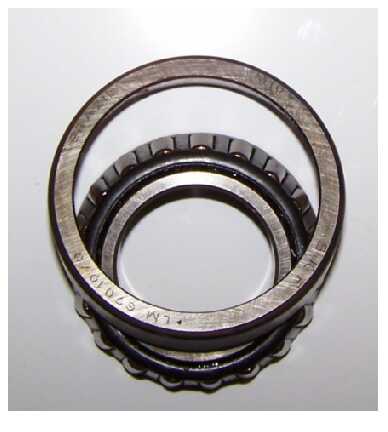

Front Aluminum Hub bearing smaller O.S with race...............$11
Front Aluminum Hub bearing I.S. seal..........$8
Front Aluminum hub cap...............................$NA yet
Front Hub as shown... Hubs have 4 studs installed. Include 4 lugs. Both inner and outer bearing race's are installed. The hub caps and 3 hub cap screws are included. Fits Pro, Lightning, Eliminator, Leader chassis cars.
Front Hub/Spindle kit..As shown..Will include 2 spindles, 2 hubs, 2 spindle nuts and washers, 2 top and 2 bottom spindle socket head bolts, 2 inner bearing seals, 2 inner bearing and 2 outer bearings. Fits Pro, Lightning, Eliminator, Leader chassis cars...$630
Moroso Brand Lug nuts steel 1/2 x 20 threads with 1 inch Socket size. Set of 4.....................$7

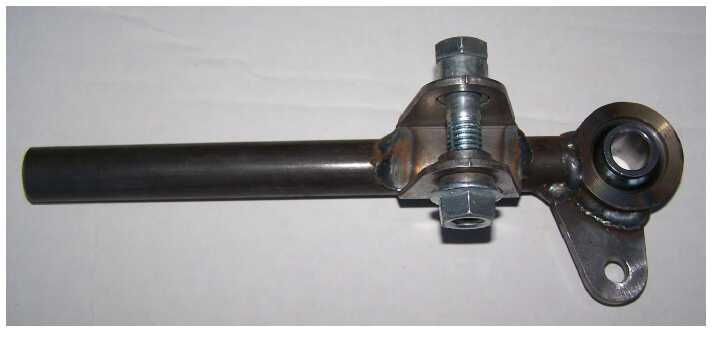

Front Lower Control Arm left or right side.........................$65
Front Upper Control Arm curved style left or right side.........................$60

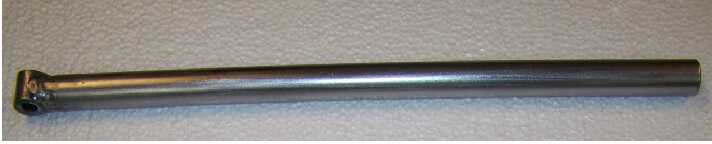

Steel Upper Long Control Arm left or right side. Each end has 1/2" threads for rod ends. One end left hand threads and the opposite end has right hand threads. One end will need rod end and the other end a clevis for the newer pro chassis style...This same arm can be used with our NXS style adaptor for use on the old style short arms..See NXS style long arm adaptor below for more info...(comes in 14, 15 and 16 inch lengths..$20
Steel Upper Short Control Arm left or right side. Left hand 5/8" threaded end and opposite end is right hand 5/8" thread for rod end that connects to top spindle bolt. Has 1 welded ears with 3/8 hole for bolting on clevis to long arm. These are the newer pro chassis style upper short arms.......$30
Steel Upper Short Control Arm left or right side. Left hand 5/8" threaded end and opposite end is right hand 5/8" thread for rod end that connects to top spindle bolt. Has 2 welded ears with 3/8 hole for bolting on long arm. These are the older pro chassis style upper short arms.......$30
Clevis 1/2 inch fine thread. Hole 3/8 slot 1/4............$7
This NXS style adaptor is for use with old style short arm and new style long upper arms..It takes place of the clevis shown above. Simply a 1/2" thread with a welded on 3/8" bolt hole......$7
Front Caliper bracket.(3.25)............................$13
Front Caliper bracket.(3.75)............................$13.50

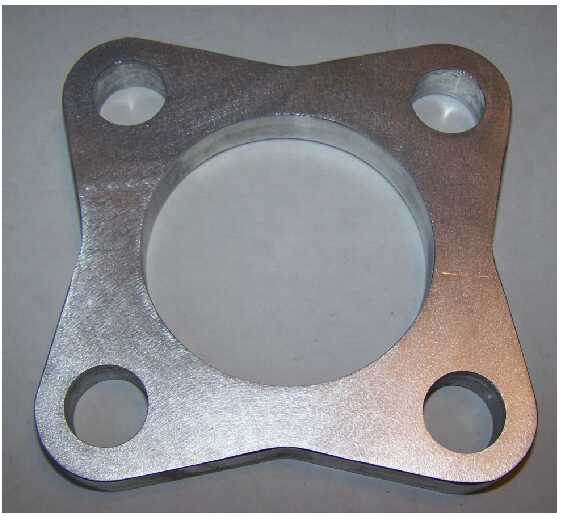

Aluminum 1/4 inch thick wheel spacer............................$14

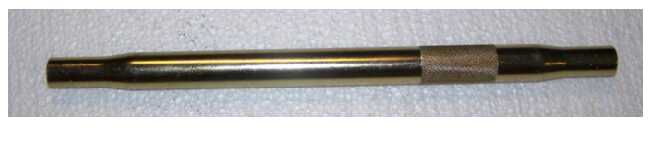

Aluminum swedge bar. Connects to front steering box and spindle arm..7/8 O.D. x 1/2 I.D. fine one end LH and one end RH (length 8, 9, 10 inch).........$20
Steel..7/8 O.D. x 1/2 I.D. fine one end LH and one end RH (length 8, 9, 10 inch).........$11
Heim Left hand 1/2 fine thread x 1/2 inch hole............$6.50
Heim Right hand 5/8 fine thread x 1/2 inch hole, with ball width 5/8............$11.55
