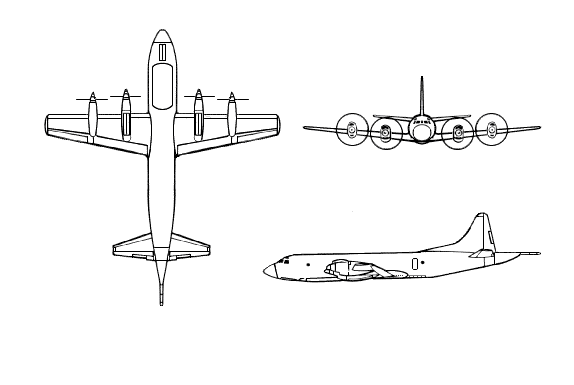

P-3 ORION

Specifications
A/B MODELC MODELEP-3
Typeten-crew anti-sub warfare/maritime patrolten-crew anti-sub warfare/maritime patrolten-crew Electronic Intelligence
ContractorLockheedLockheedLockheed
Country of OriginUSAUSAUSA
Powerplantfour Allison T56-A-10W turbopropsfour Allison T56-A-14 turbopropsfour Allison T56-A-15 turboprops
Horsepower4,500-hp each engine4,910-hp each engine4,910-hp each engine
Length116ft 10in116ft 10in116ft 10in
Height33ft 8.5in33ft 8.5in33ft 8.5in
Wingspan99ft 8in99ft 8in99ft 8in
Wing Area1,300 Sq. ft1,300 Sq. ft1,300 Sq. ft
Max Speed437mph @ 15,000ft473mph @ 15,000ft437mph @ 15,000ft
Climb Rate2,175ft/minute1,950ft/minute2,175ft/minute
Service Ceiling28,300ft28,300ft28,000ft
Radius2,532 miles max1,550 miles on 3-hour patrol2,532 miles max
Empty Weight60,000lbs61,490lbsunknown
Max Take-Off Weight127,500lbs142,000lbs142,000lbs
Armament7,250lbs of disposable stores internally &
16,000lbs externally
20,000lbs of disposable storesNONE
