AutoCAD
Final Project of Residential Structure
Basics Class
Winter, 2006
The following AutoCAD techniques and skills applied:
- hatching - fills - layers - text - creation and insertion of blocks - dimensioning - plot to scale
West Hyattsville, MD
Spring, 2007

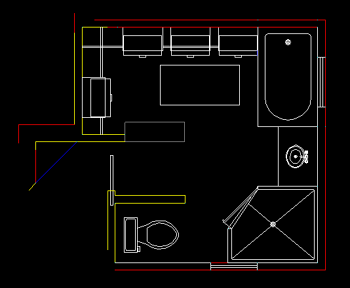

Floor Plan Key
-Red: existing walls
-Yellow: constructed interior walls
-Gray: furniture (bench)
-Blue: built-in shelving
-White: permanent fixtures
-White hatched: (ceiling) skylight
AutoCAD Elevations
Next Page: Interior Consultation Work
