STONEMAN GUITARS Tech Specs
  Technical Specifications

Including: woods, wiring, dimensions, construction and ect.

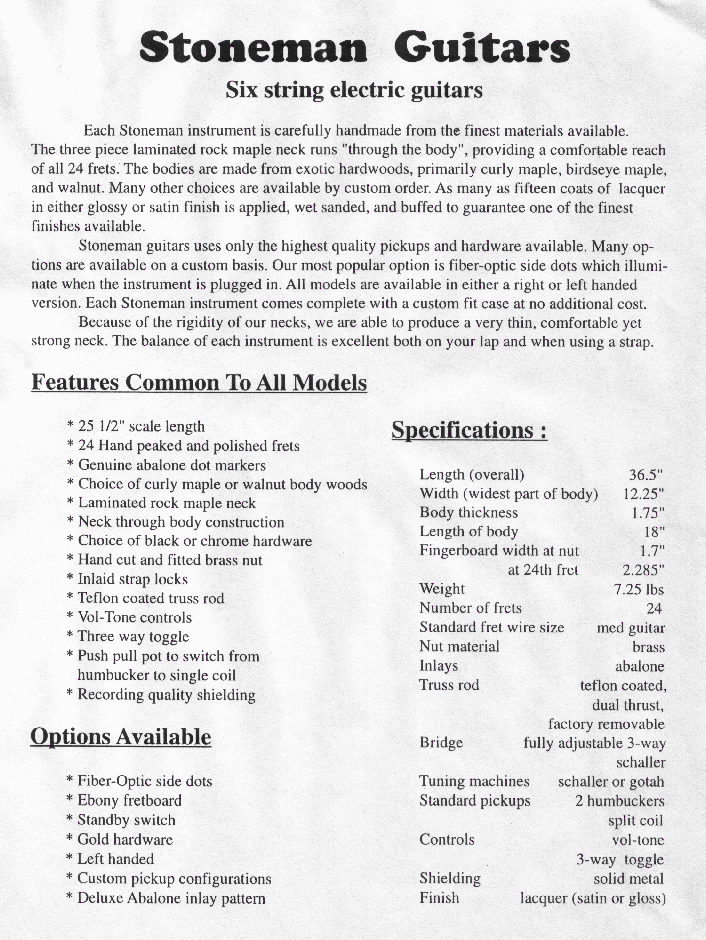

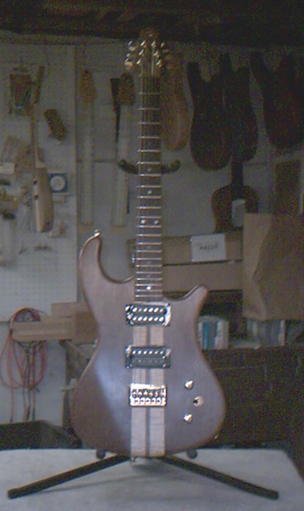

Note: These specs are for the Stoneman SG and SB models. The SG-1 is the neck-through-body Guitar and the SB-1 is the Stoneman Bass neck-through-body Bass.

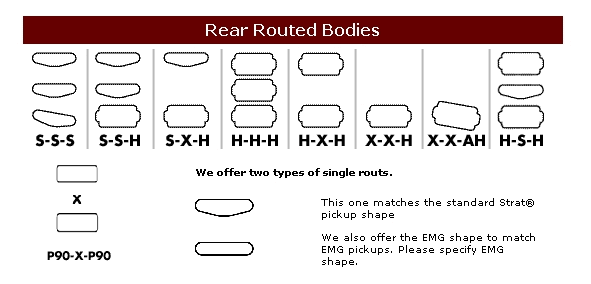

Here's some "Standard" Brands and shapes:





Here are some standard "Stratocaster" neck shapes. As a custom guitar built by me, ANY shape and size is available.

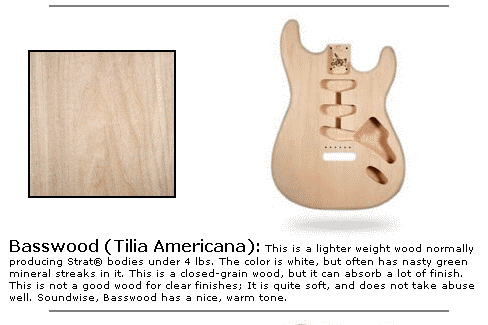

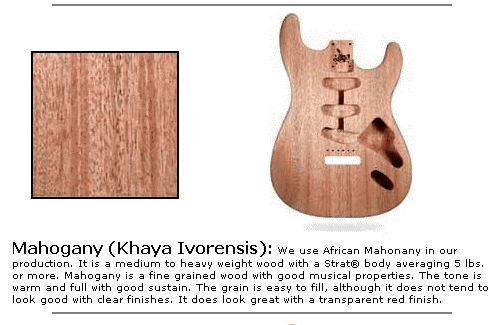

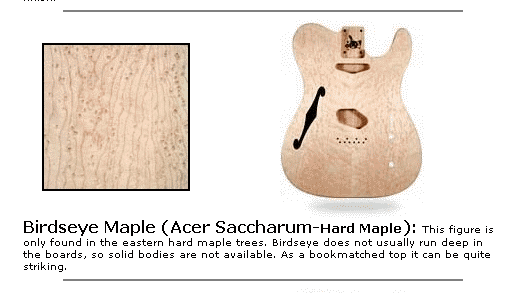

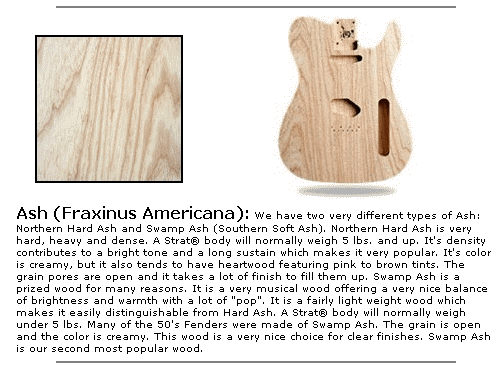

Here' a discription of the body and neck woods I commonly use:

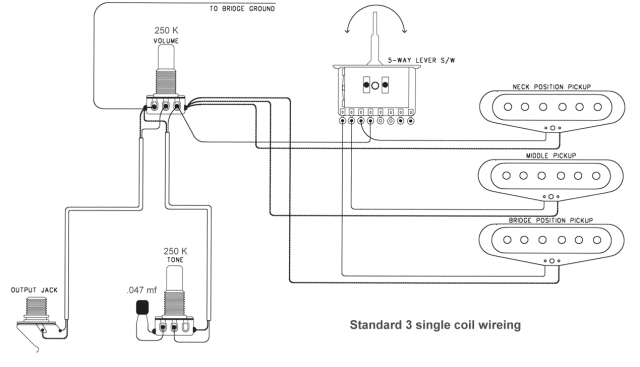

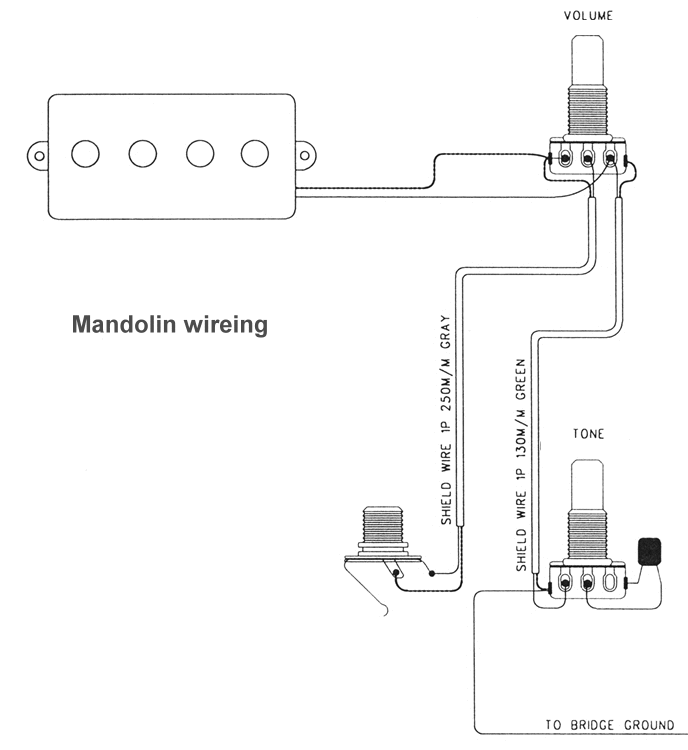

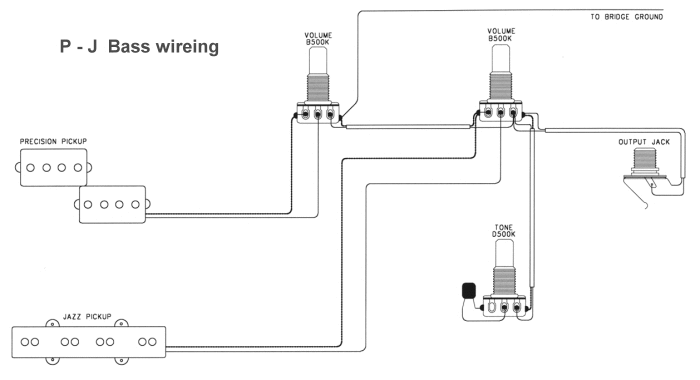

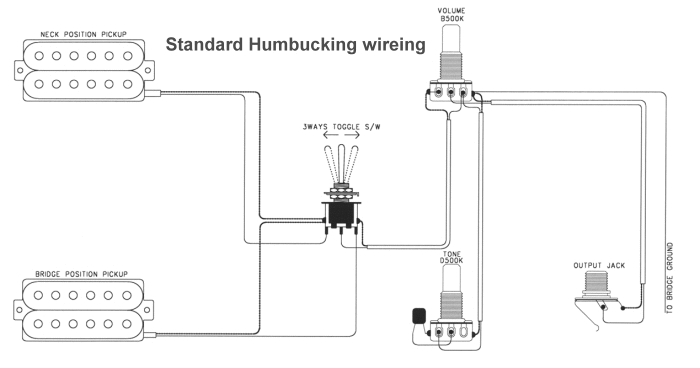

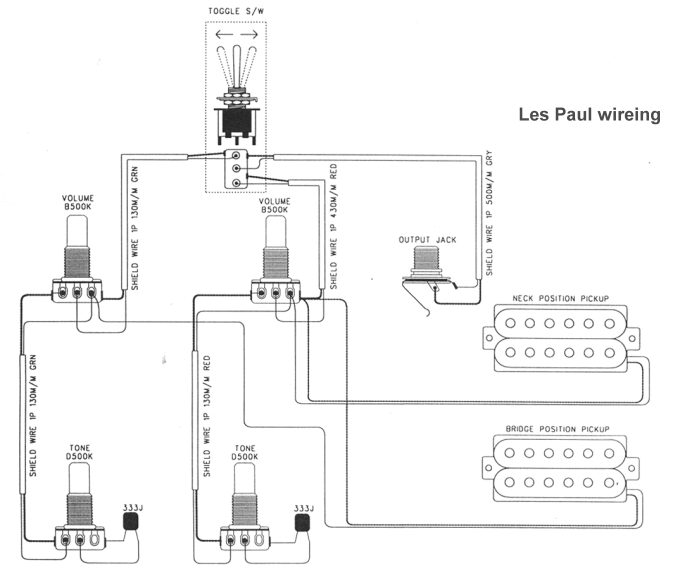

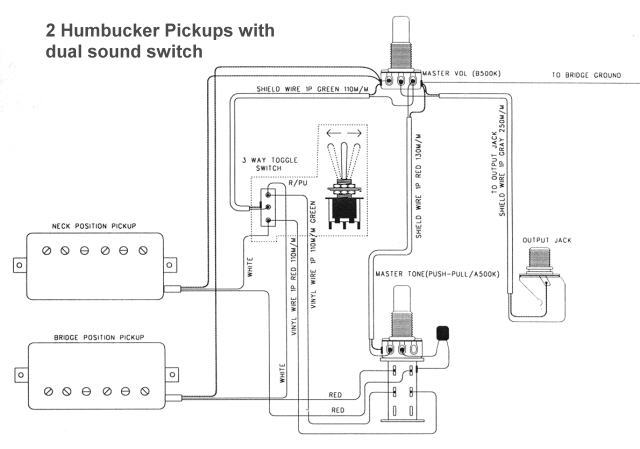

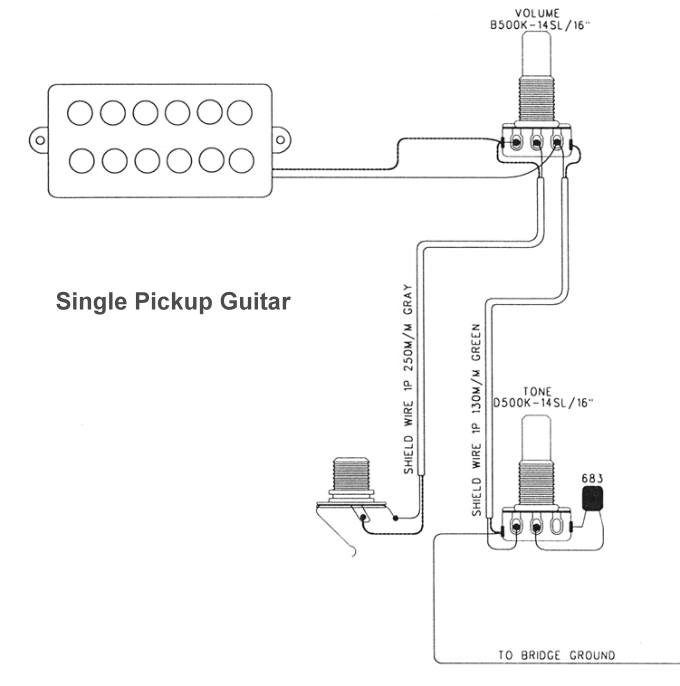

Instrument Wiring




This is a good guide for some basic instrument wirings.
