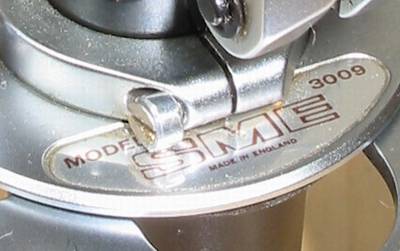

The armpost pillar clamp's hex-bolt has been replaced by a larger thread screw and metal sleeve. |
 |

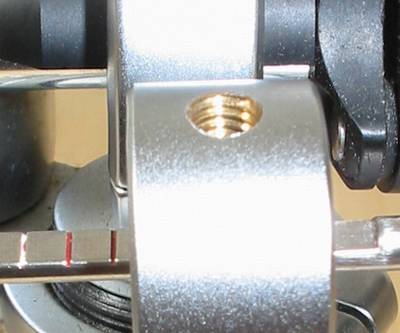

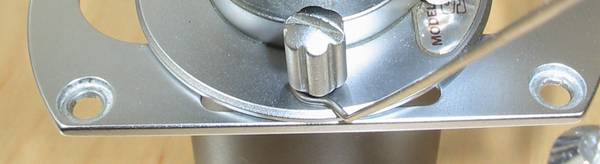

The VTF rider weight has been tapped to allow a tight grip on the 'L-shaped' way rod. |
 |

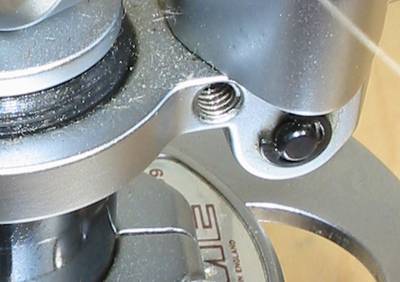

The hex-bolt on the adjusting bracket (where the armtube
rest rod and armlift mechanism is attached to) has been replaced by a larger-hex
bolt.
Thread size remain the same. |
 |

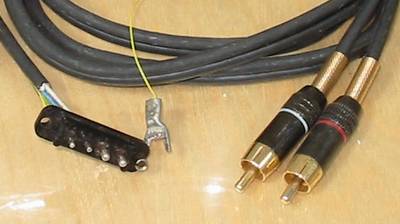

The output plug has been modified to allow for direct
soldering of interconnect to the terminal posts.
Cable and RCA plugs were also changed by previous owner of this arm. |
The 4 rubber grommets have been removed from the armbase,
for direct coupling to the plinth. A larger screw would be needed
for mounting arm and it's advisable to have a nylon washer, between armbase
and screw.
