XT225 (Serow) Carburetor Assembly


Specifications
ID mark 4BE10 (USA)
4BE00 (US California)		 3RW00 (Canada)
Main jet #130 #122.5
Pilot jet #40 #42.5
Jet needle 5DL27-1 5GN50-3/5
Pilot screw Preset 2 turns out
Float height 14.1 to15.1 mm
Fuel level as in figure below 11.0 to 12.0mm below float chamber mating surface at front edge
Engine idling speed 1300 to 1500rpm


  1. Diaphragm cover
  2. Diaphragm spring
  3. Jet needle set
  4. Diaphragm assembly
  5. Needle jet
  6. Pilot air jet
  7. Starter plunger assembly
  8. Throttle stop screw
  9. Float pin
  10. Float
  11. Needle valve set
  12. Main jet
  13. Pilot jet
  14. Pilot screw
  15. O-ring
  16. Diaphragm of coasting enricher
  17. O-ring
  18. Cover assembly
  19. Canister hose for USA-California

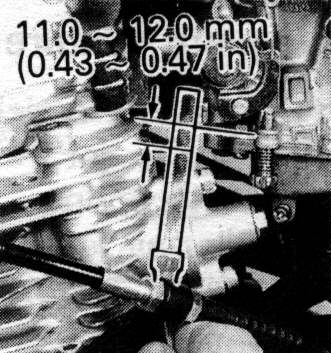

Check float level on the bike with pipe:
