Grease ball joints of gear change system and splined gear box shaft
-

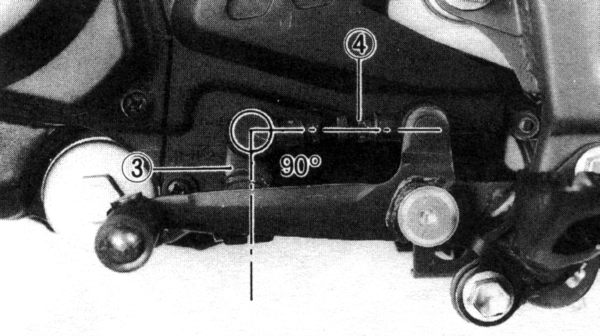

Fit shift arm 3 onto splined shaft with shift rod 4 so that
they form a right angle
-
Check position of pedal is with upper edge of peg (this is manual setting,
some people don't like this and have their own preferred position - often
higher so a big boot can fit underneath)
-

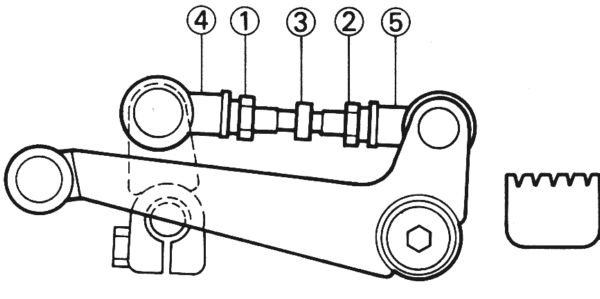

Adjust pedal to this location by loosening locknuts 1 and 2
and turning shift rod 3
-
Note
-
locknut 2 is left handed
-
holders 4 and 5 should each contain at least 4 threads of
shift rod 3
-
Tighten locknuts 1 and 2 to 10Nm
|
 |
