XT225 (Serow) Head Assembly


  1. Valve cotter
  2. Valve spring retainer
  3. Valve stem seat
  4. Valve spring (inner)
  5. Valve spring (outer)
  6. Valve spring seat
  7. Valve (intake)
  8. Valve (exhaust)
  9. Locknut
  10. Adjuster
  11. Rocker arm
  12. Rocker arm shaft (intake)
  13. O-ring
  14. Rocker arm shaft exhaust
  15. Circlip
  16. Valve guide
  17. Camshaft
  18. Collar
  19. Plate
  20. Lock washer

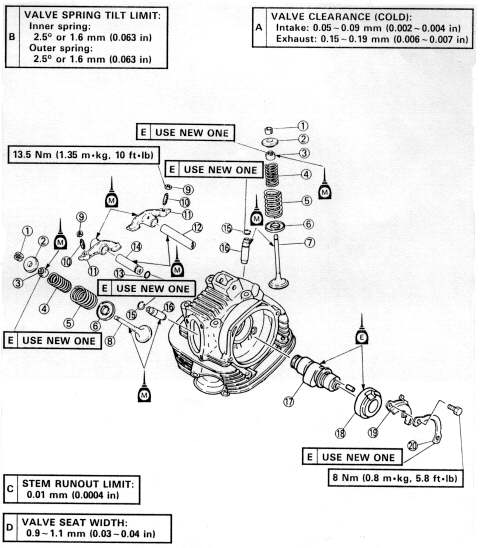

 Exploded diagram of XT225 head
