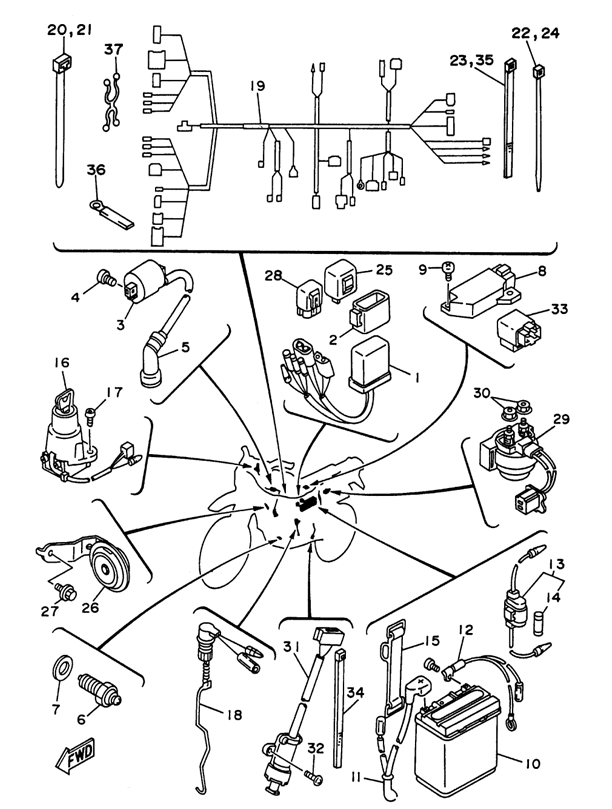

REF NUM | PART NUMBER | DESCRIPTION | REQ | Retail Price |
1 | 4BE-85540-01-00 | C.D.I. UNIT ASSY | 1 | 153.75 |
2 | 3RW-85546-00-00 | BAND | 1 | 5.90 |
3 | 3KJ-82310-10-00 | IGNITION COIL ASSY | 1 | 26.13 |
4 | 98507-06016-00 | SCREW, PAN HEAD | 2 | 0.63 |
5 | 5EL-82370-00-00 | PLUG CAP ASSY | 1 | 15.93 |
6 | 4KM-82540-00-00 | NEUTRAL SWITCH ASSY | 1 | 14.92 |
7 | 90430-10171-00 | GASKET | 1 | 1.23 |
8 | 3TJ-81960-02-00 | RECTIFIER & REGULATOR ASSY | 1 | 62.11 |
9 | 98517-06025-00 | SCREW, PAN HEAD | 2 | 0.22 |
10 | BTY-YTX7L-BS-00 | BATTERY ASSY | 1 | 87.22 |
11 | 4JG-82115-00-00 | WIRE, PLUS LEAD | 1 | 16.62 |
12 | 4JG-82116-00-00 | WIRE, MINUS LEAD | 1 | 8.62 |
13 | 2TV-82150-02-00 | FUSE HOLDER ASSY | 1 | 4.61 |
14 | 4X7-82151-00-00 | ...FUSE (15A) | 1 | 4.40 |
15 | 22F-82131-00-00 | BAND, BATTERY | 1 | 4.20 |
16 | 2HV-82501-00-00 | MAIN SWITCH STEERING LOCK | 1 | 87.84 |
17 | 90149-06228-00 | SCREW | 2 | 1.87 |
18 | 5BT-82530-00-00 | STOP SWITCH ASSY | 1 | 16.29 |
19 | 4BE-82590-01-00 | WIRE HARNESS ASSY (UR) | 1 | 106.76 |
20 | 90464-20044-00 | CLAMP | 1 | 2.04 |
21 | 90464-20044-00 | CLAMP | 2 | 2.04 |
22 | 90465-13152-00 | CLAMP | 1 | 2.72 |
23 | 1UA-82591-00-00 | BAND | 3 | 1.90 |
24 | 90465-13152-00 | CLAMP | 2 | 2.72 |
25 | 4BE-83350-00-00 | FLASHER RELAY ASSY | 1 | 41.55 |
26 | 3RW-83371-00-00 | HORN | 1 | 26.83 |
27 | 95817-06010-00 | BOLT, FLANGE | 1 | 0.63 |
28 | 3RW-81950-00-00 | RELAY ASSY | 1 | 18.71 |
29 | 4KD-81940-00-00 | STARTER RELAY ASSY | 1 | 29.71 |
30 | 95707-06500-00 | NUT, FLANGE | 2 | 0.63 |
31 | 3LD-82566-40-00 | SWITCH, SIDE STAND | 1 | 33.66 |
32 | 98507-05016-00 | SCREW, PAN HEAD | 2 | 0.74 |
33 | 29U-81950-93-00 | STARTER CIRCUIT RELAY | 1 | 27.88 |
34 | 1UA-82591-00-00 | BAND | 1 | 1.90 |
35 | 1UA-82591-00-00 | BAND | 1 | 1.90 |
36 | 90465-06376-00 | CLAMP | 1 | 1.85 |
37 | 90464-16115-00 | CLAMP | 1 | 1.45 |
