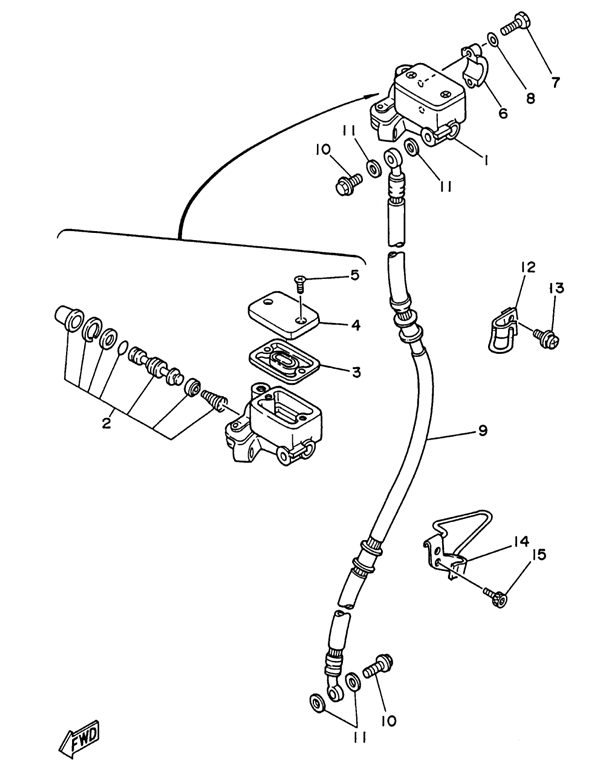

Front Master Cylinder
| REF NUM |
PART NUMBER |
DESCRIPTION |
REQ |
Retail Price |
| 1 |
3RW-25870-02-00 |
MASTER CYL SUB ASSY |
1 |
85.89 |
| 2 |
3RW-W0041-02-00 |
...PISTON KIT |
1 |
21.56 |
| 3 |
3RW-25854-00-00 |
...DIAPHRAGM, RESERVOIR |
1 |
5.67 |
| 4 |
4GY-25852-00-00 |
...CAP, RESERVOIR |
1 |
9.47 |
| 5 |
98707-04012-00 |
...SCREW, FLAT HEAD |
2 |
0.63 |
| 6 |
56A-25867-00-00 |
BRACKET, MASTER CYL |
1 |
11.97 |
| 7 |
97017-06025-00 |
BOLT |
2 |
0.35 |
| 8 |
92907-06600-00 |
WASHER, PLATE |
2 |
0.63 |
| 9 |
3RW-25872-02-00 |
HOSE, BRAKE 1 |
1 |
61.54 |
| 10 |
90401-10159-00 |
BOLT, UNION |
2 |
2.31 |
| 11 |
90201-10118-00 |
WASHER, PLATE |
4 |
1.23 |
| 12 |
3RW-25875-00-00 |
HOLDER, BRAKE HOSE 1 |
1 |
5.90 |
| 13 |
97017-06016-00 |
BOLT, WITH WASHER |
1 |
0.84 |
| 14 |
34X-25876-00-00 |
HOLDER, BRAKE HOSE 2 |
1 |
10.51 |
| 15 |
91317-06010-00 |
BOLT |
2 |
0.84 |
